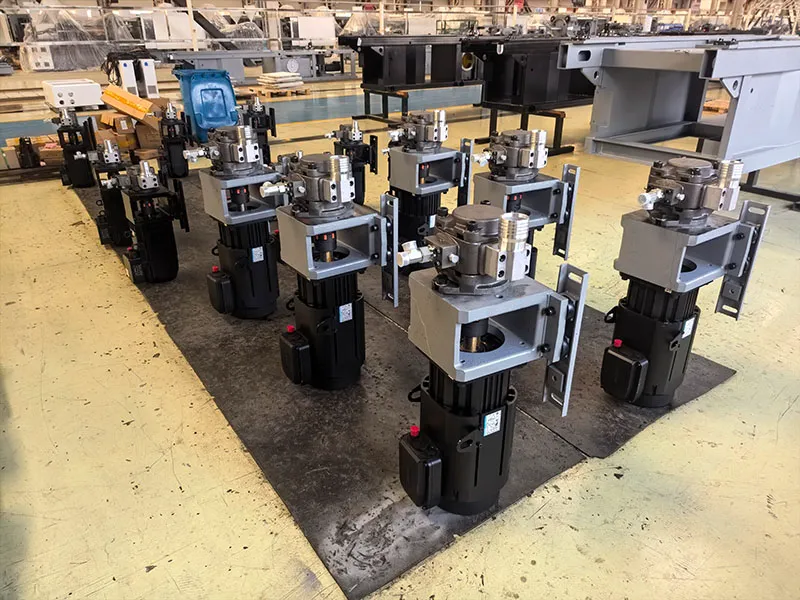

HG is used in injection molding machines with servo systems.
This client is a technical service company in the injection molding machine industry in the UAE. Initially, they only purchased HG series servo pumps of 63cc/80cc/100cc/125cc/160cc from us. Subsequently, our company promoted the entire servo system to them and provided strong professional technical support. This client has now become a supplier of plunger machine parts in Dubai, and the total number of servo systems of various specifications is expected to exceed 300 sets by 2026.
Application Videos
HG Series
Testing in the Injection Molding Machine
Testing of HG servo Pump
Technical Specifications
HG2-100 Gear Pump
- Max. Pressure350 bars
- System Pressure170 bars
- Max. Speed3000 rpm
Servo Motor
- Max. Torque440 N.m
- Rated Torque224 N.m
- Max. Speed2200 rpm
- Rated Current69.1 A
- Rated Power39.9 KW
- KT3.24
Servo Drive
- Power Level45 KW
- Output Current91 A
- Input Current83 A
- Heat Dissipating Capacity1363 m³/h
