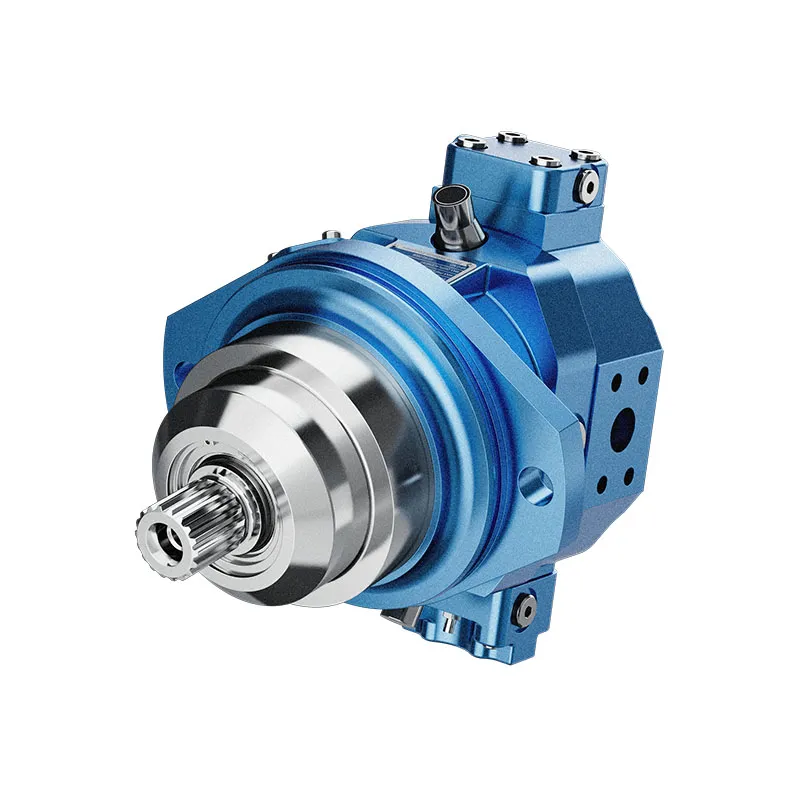

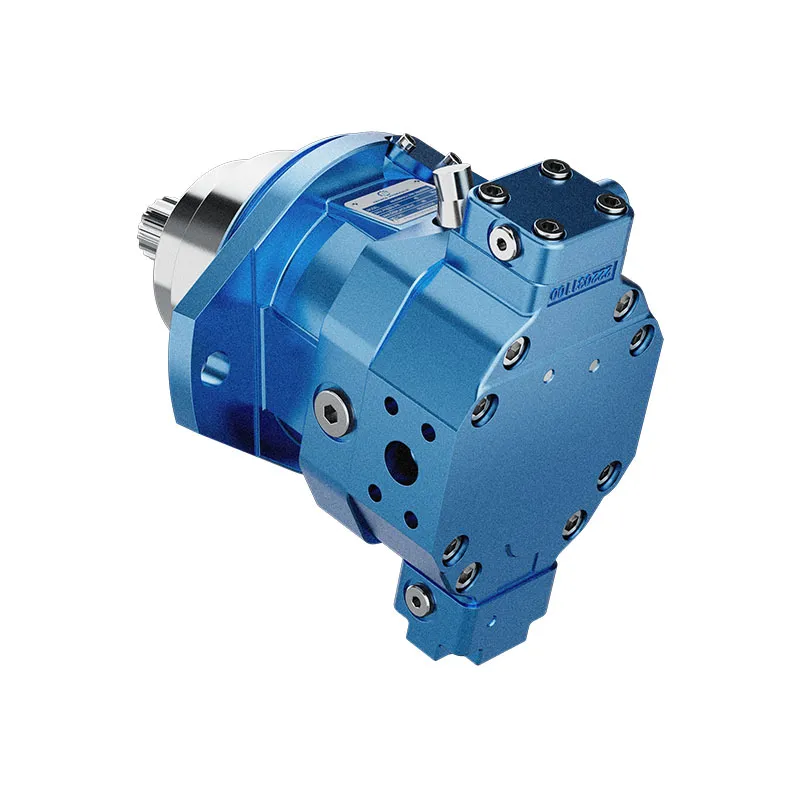

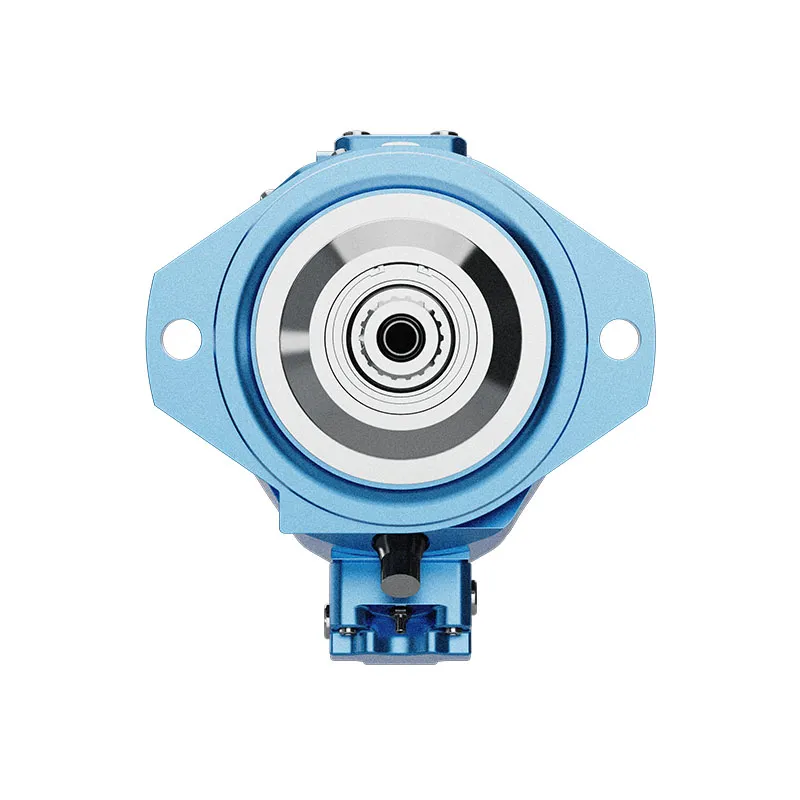

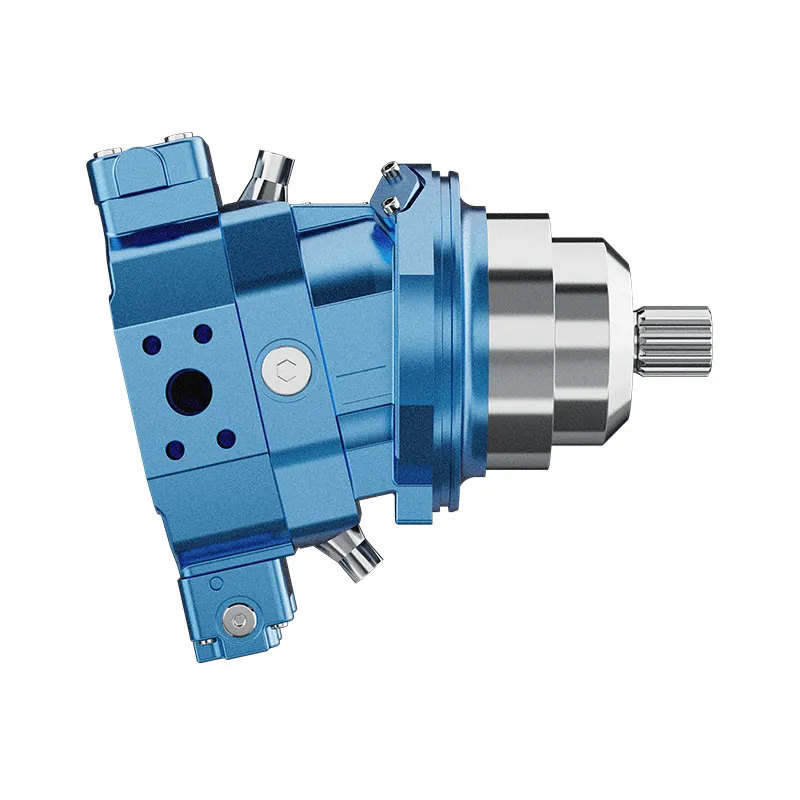

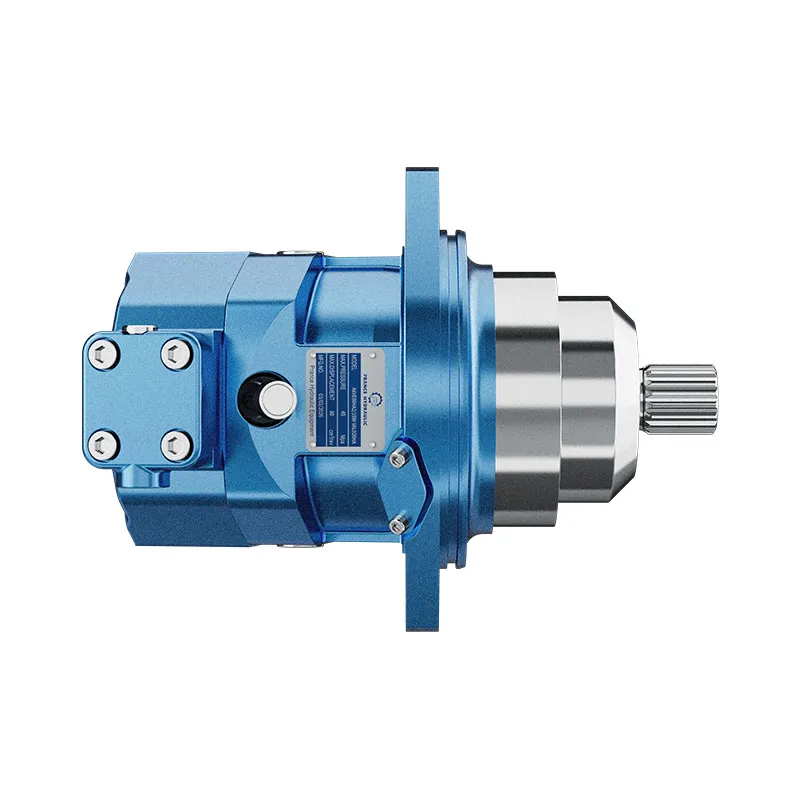

A6VE Variable Displacement Plug-In Motor
The A6VE is a variable displacement plug-in motor, not a fixed displacement motor. Its bent-axis rotary group changes displacement, while the recessed mounting arrangement must match the receiving gearbox and shaft.
- Variable displacement bent-axis motor
- Plug-in mounting arrangement
- Flushing and boost valve options
- Counterbalance option depends on order code
PRANCE HYDRAULIC · PRODUCT SERIES
Axial piston; bent axis, variable displacement · Confirm open or closed circuit configuration
The A6VE is a variable displacement plug-in motor, not a fixed displacement motor. Its bent-axis rotary group changes displacement, while the recessed mounting arrangement must match the receiving gearbox and shaft.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Variable displacement bent-axis motor
- Plug-in mounting arrangement
- Flushing and boost valve options
- Counterbalance option depends on order code
CATEGORIES: Piston Motor, Variable Displacement Piston Motor
A6VE Features & Application
Variable displacement bent-axis motor
Specify the displacement range or switching arrangement and verify performance at each required setting.
Plug-in mounting arrangement
Check pilot diameter, bolt pattern, shaft engagement or port pattern against the approved installation drawing.
Flushing and boost valve options
Account for pilot or replenishment demand and the relevant pressure limits. Include filtration and the return or drain route in the circuit review.
Counterbalance option depends on order code
Specify the full A6VE order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
A6VE Specifications
| Series / model | A6VE |
|---|---|
| Product type | A6VE Variable Displacement Plug-In Motor |
| Design | Axial piston; bent axis, variable displacement |
| Circuit / selection | Confirm open or closed circuit configuration |
| Published technical-table sizes | 28 and 250 |
| Listed maximum displacement | 28.1 and 250 cm³/rev respectively |
| Displacement setting | Confirm the ordered minimum, maximum and control |
A6VE Selection & Configuration
The A6VE is a variable displacement plug-in motor, not a fixed displacement motor. Its bent-axis rotary group changes displacement, while the recessed mounting arrangement must match the receiving gearbox and shaft.
Supply the gearbox interface drawing and the full control code. Check maximum speed at each displacement setting, case filling and the drain route. A zero-displacement capability in a family description is not a holding function and does not establish the permitted setting for every application.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the A6VE nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

A6VE Buying Guide
Use this sequence to prepare the A6VE configuration for review and quotation.
- Define starting and continuous torque, speed range and duty cycle.
- Specify available flow, work-port pressure difference and return pressure.
- Confirm the displacement setting and required behavior during starting and stopping.
- Check shaft, mounting pilot, flange, port orientation and external loads.
- Review case drainage, replenishment and any displacement control.
- Specify fluid conditions and any independent braking requirement.
- Approve the complete model, operating envelope, drawing and quantity.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete A6VE code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your A6VE Application
Send the full model code, operating duty, installation details and quantity.
Request a A6VE QuotationA6VE Questions Before Ordering
What type of product is the A6VE?
A6VE Variable Displacement Plug-In Motor. Design: Axial piston; bent axis, variable displacement. Confirm open or closed circuit configuration. Confirm the complete order code for the offered version.
Can a similar motor replace the A6VE?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define starting and continuous torque, speed range and duty cycle. Specify available flow, work-port pressure difference and return pressure. Attach the nameplate, complete order code, installation drawing and required quantity.
A6VE Technical Data & Documents
View A6VE catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
| Size | NG | 28 | 250 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 28.1 | 250 | |
| Vgmin | cm3 | 0 | 0 | ||
| Vgx | cm3 | 18 | 205 | ||
| Maximum rotational speed2) (in compliance with maximum permissible inlet flow) | at Vg max | nnom | rpm | 5550 | 2700 |
| at Vg < Vgx (see diagram) | nmax | rpm | 8750 | 3300 | |
| at Vg 0 | nmax | rpm | 10450 | 3300 | |
| Inlet flow | at nnom and Vg max | qv max | l/min | 156 | 675 |
| Torque3) | at Vg max and ΔP ▪ 400 bar | M | Nm | 179 | – |
| at Vg max and ΔP ▪ 350 bar | M | Nm | 157 | 1391 | |
| Rotary stiffness | Vg max to Vg/2 | Cmin | kNm/rad | 6 | 60 |
| Vg/2 to 0 (interpolated) | Cmin | kNm/rad | 18 | 181 | |
| Moment of inertia of the rotary group | JTw | kgm2 | 0.0014 | 0,061 | |
| Case volume | V | l | 0.5 | 3.0 | |
| Weight approx. | with port plate 02, 38 | m | kg | 16 | 1105) |

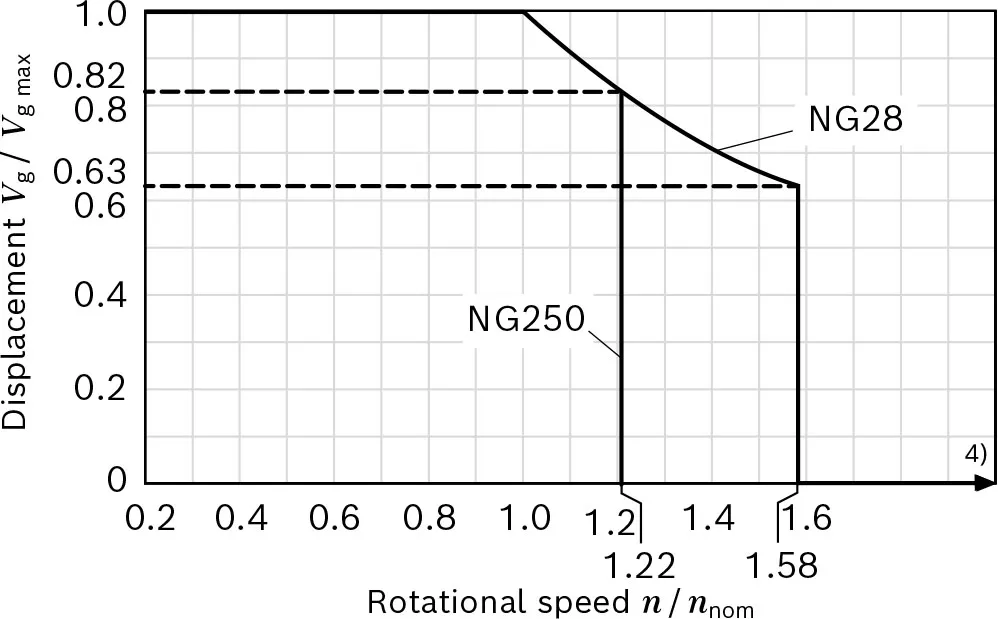

▼Permissible displacement depending on the rotational speed
Determination of the characteristics
| Determination of the characteristics | ||
| Inlet flow | qv=(Vg×n)/(1000×ηv) | l/min |
| Rotational speed | n=(qv×1000×ŋv)/Vg | rpm |
| Torque | M=(Vg×Δp×ŋhm)/(20×π) | Nm |
| Power | P=(2π×M×n)/60000=(qv×Δp×ŋt)/600 | kW |
Key
| Vg | Displacement per revolution [cm3] |
| Δp | ]Differential pressure [bar] |
| n | Rotational speed [rpm] |
| ŋv | Volumetric efficiency |
| ŋhm | Hydraulic-mechanical efficiency |
| ŋt | Total efficiency (t = 7v x 7hm) |
Notice
▶Theoretical values, without efficiency and tolerances;values rounded ▶Operation above the maximum values or below the minimum values may result in a loss of function,a reduced service life or in the destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261. 1) The minimum and maximum displacement can be steplessly varied,see Ordering code on page 2. (Standard setting size 250 if not Specified when ordering: Vgmin = 0.2×Vg max, Vg max = Vg max). 2) The values are applicable: – for the optimum viscosity range from νopt = 36 to 16 mm2/s – with hydraulic fluid based on mineral oils 3)Torque without radial force, with radial force see page 8 4)Values in this range on request 5)Port plate 02Permissible radial and axial loading on the drive shafts
| Size | NG | 28 | 250 | ||
| Drive shaft | W30 | W50 | |||
| Maximum radial force1) at distance a (to the shaft collar) | ![]() |
Fq max | N | 4838 | 12002) |
| a | mm | 17.5 | 41 | ||
| Maximum torque at Fq max | Tq max | Nm | 179 | 3) | |
| Maximum differential pressure at Vgmax and Fqmax | Δpq max | bar | 400 | 3) | |
| Maximum axial force,at standstill orpressure-free operation | ![]() |
+ Fax max | N | 0 | 0 |
| – Fax max | N | 315 | 1200 | ||
| Permissible axial force per bar working pressure | + Fax perm/bar | N/bar | 4.6 | 3) | |

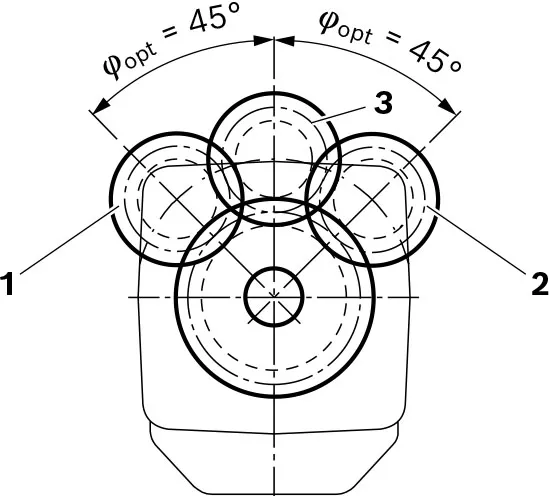

Effect of radial force Fq on bearing service life
By selecting a suitable direction of radial force Fq, the load on the bearings, caused by the internal rotary group forces can be reduced, thus optimizing the bearing service life.Recommended position of mating gear is dependent on the direction of rotation. Examples: ▼Gear output drive
1 “Counter-clockwise” rotational direction, pressure at port B
2 “Clockwise” rotational direction, pressure at port A
3 Bidirectional direction of rotation
Notice
▶The values given are maximum values and do not apply to continuous operation. ▶The permissible axial force in direction -Fax is to be avoided as the bearing service life is reduced. ▶Special requirements apply in the case of belt output drives. Please contact us. 1)With intermittent operation 2)When at standstill or when axial piston unit working in depressurized conditions. Higher forces are permissible under pressure, please contact us. 3) Please contact us.Related Selection Resources
Request a A6VE Quotation
Tell us your required configuration, quantity and application.
Type code
Axial piston unit
| 01 | Bent-axis design, variable | A6V |
Operating mode
| 02 | Plug-in motor | E |
Size (NG)
| 03 | Geometric displacement, see "Technical data" | 28 | 250 |
Control device
| 28 | 250 | |||||
| 04 | Proportional control, hydraulic | ΔPst=10 bar | ● | ● | HD1 | |
| ΔPst=25 bar | ● | ● | HD2 | |||
| Proportional control, electric | U=12V | ● | ● | EP1 | ||
| U=24V | ● | ● | EP2 | |||
| Two-point control hydraulic |
- | ● | HZ | |||
| ● | - | HZ1 | ||||
| Two-point control electric |
U=12V | ● | ● | EZ1 | ||
| U=24V | ● | ● | EZ2 | |||
| Automatic control high-pressure-dependent |
with minimum pressure increase | ΔP≤approx. 10 bar | ● | ● | HA1 | |
| with pressure increase | ΔP=100 bar | ● | ● | HA2 | ||
| Automatic control, speed related | Pst/PHD = 3/100, hydraulic travel direction valve | - | ● | DA | ||
| Pst/PHD = 5/100, electric travel direction valve + electric Vgmax switching | U=12V | ● | - | DA3 | ||
Pressure control (only for HD and EP)
| 28 and250 | ||||
| 05 | Without pressure control/override | ● | ● | |
| Pressure control, fixed setting | ● | ● | D | |
Pressure control/override
| 28 and250 | ||||
| 06 | Without pressure control/override | ● | ● | |
| Override of the HA1 and HA2 controls, hydraulic remote controlled, proportional | ● | ● | T | |
Series
| 07 | Series 6, index 3 | 63 |
Direction of rotation
| 08 | Viewed on drive shaft, bidirectional | W |
Setting range for displacement1)
| 28 | 250 | |||
| 09 | Vg min =0 to 0.7 Vg max(without code) | ● | - | |
| Vg min =0 to 0.4 Vg max Vg max = Vg max to 0.8 Vg max | - | ● | 1 | |
| Vg min > 0.4 Vg max to 0.8 Vg max Vg max = Vg max to 0.8 Vg max | - | ● | 2 | |
Sealing material
| 28 | 250 | |||
| 10 | FKM(fluoroelastomer) shaft seal | ● | ● | V |
Drive shaft
| 28 | 250 | |||
| 11 | Splined shaft DIN 5480 | ● | - | A |
| - | ● | Z | ||
•=Available ○=On request -=Not available
=Preferred program
1) Please specify exact settings for Vgmin and Vgmax in plain text when ordering: Vgmin = ... cm3, Vgmax = ... cm3
Mounting flange
| 28 | 250 | ||||
| 12 | Similar to ISO 3019-2 | 2-hole | ● | - | L |
| 4-hole | - | ● | M | ||
Working port2)
| 28 | 250 | |||||
| 13 | SAE working ports A and B at side, opposite | 02 | 0 | ● | ● | 020 |
| 7 | ● | ● | 027 | |||
| Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (pilot operated)3) | 38 | 0 | - | ●4) | 380 | |
Valves
| 14 | Without | 0 |
| Flushing and boost-pressure valve, mounted | 7 | |
| Mounted counterbalance valve | 8 |
Speed sensor
| 28 | 250 | |||
| 15 | Without speed sensor | ● | ● | 0 |
| Prepared for DSA speed sensor | ○ | ● | U | |
| DSA speed sensor angebaut5) | ○ | ● | V | |
Connector for solenoids6)
| 28 | 250 | |||
| 16 | Without connector (without solenoid, only for hydraulic control) (Size 250 without code) |
● | - | 0 |
| - | ● | |||
| DEUTSCH - molded connector, 2-pin, without suppressor diode | ● | - | P | |
| HIRSCHMANN connector - without suppressor diode (without code) | - | ● | ||
Beginning of control
| 28 | 250 | ||||
| 17 | Port plate 02, 38 | at Vgmin (standard for HA) | ● | ● | A |
| at Vgmax(standard for HD, HZ, EP, EZ, DA) | ● | ● | B | ||
Standard/ special version
| 18 | Standard version (without symbol) | |
| Standard version with installation variants, e.g. T ports open or closed, contrary to standard | -Y | |
| Special version | -S |
•=Available ○=On request -=Not available
=Preferred program
Notice
▶Note the project planning notes on page 34!
▶In addition to the type code, please specify the relevant technical data when placing your order.
▶Please note that not all type code combinations are available although the individual functions are marked as being available.
2) Fastening thread, metric.
3) Only possible in combination with HD, EP and HA control
4) Counterbalance valve MHB32, please contact us.
5) Specify the type code separately for sensor in accordance with data sheet 95133 (DSA) and observe the requirements for the electronics.
6) Connectors for other electric components may deviate.
Technical data
| Size | NG | 28 | 250 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 28.1 | 250 | |
| Vgmin | cm3 | 0 | 0 | ||
| Vgx | cm3 | 18 | 205 | ||
| Maximum rotational speed2) (in compliance with maximum permissible inlet flow) |
at Vg max | nnom | rpm | 5550 | 2700 |
| at Vg < Vgx (see diagram) | nmax | rpm | 8750 | 3300 | |
| at Vg 0 | nmax | rpm | 10450 | 3300 | |
| Inlet flow | at nnom and Vg max | qv max | l/min | 156 | 675 |
| Torque3) | at Vg max and ΔP ▪ 400 bar | M | Nm | 179 | – |
| at Vg max and ΔP ▪ 350 bar | M | Nm | 157 | 1391 | |
| Rotary stiffness | Vg max to Vg/2 | Cmin | kNm/rad | 6 | 60 |
| Vg/2 to 0 (interpolated) | Cmin | kNm/rad | 18 | 181 | |
| Moment of inertia of the rotary group | JTw | kgm2 | 0.0014 | 0,061 | |
| Case volume | V | l | 0.5 | 3.0 | |
| Weight approx. | with port plate 02, 38 | m | kg | 16 | 1105) |
▼Permissible displacement depending on the rotational speed

Determination of the characteristics
| Determination of the characteristics | ||
| Inlet flow | qv=(Vg×n)/(1000×ηv) | l/min |
| Rotational speed | n=(qv×1000×ŋv)/Vg | rpm |
| Torque | M=(Vg×Δp×ŋhm)/(20×π) | Nm |
| Power | P=(2π×M×n)/60000=(qv×Δp×ŋt)/600 | kW |
Key
| Vg | Displacement per revolution [cm3] |
| Δp | ]Differential pressure [bar] |
| n | Rotational speed [rpm] |
| ŋv | Volumetric efficiency |
| ŋhm | Hydraulic-mechanical efficiency |
| ŋt | Total efficiency (t = 7v x 7hm) |
Notice
▶Theoretical values, without efficiency and tolerances;values rounded
▶Operation above the maximum values or below the minimum values may result in a loss of function,a reduced service life or in the destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261.
1) The minimum and maximum displacement can be steplessly varied,see Ordering code on page 2. (Standard setting size 250 if not Specified when ordering: Vgmin = 0.2×Vg max, Vg max = Vg max).
2) The values are applicable:
- for the optimum viscosity range from νopt = 36 to 16 mm2/s
- with hydraulic fluid based on mineral oils
3)Torque without radial force, with radial force see page 8
4)Values in this range on request
5)Port plate 02
Permissible radial and axial loading on the drive shafts
| Size | NG | 28 | 250 | ||
| Drive shaft | W30 | W50 | |||
| Maximum radial force1) at distance a (to the shaft collar) | ![]() |
Fq max | N | 4838 | 12002) |
| a | mm | 17.5 | 41 | ||
| Maximum torque at Fq max | Tq max | Nm | 179 | 3) | |
| Maximum differential pressure at Vgmax and Fqmax | Δpq max | bar | 400 | 3) | |
| Maximum axial force,at standstill orpressure-free operation | ![]() |
+ Fax max | N | 0 | 0 |
| - Fax max | N | 315 | 1200 | ||
| Permissible axial force per bar working pressure | + Fax perm/bar | N/bar | 4.6 | 3) | |
Effect of radial force Fq on bearing service life
By selecting a suitable direction of radial force Fq, the load on the bearings, caused by the internal rotary group forces can be reduced, thus optimizing the bearing service life.Recommended position of mating gear is dependent on the direction of rotation. Examples:
▼Gear output drive

1 "Counter-clockwise" rotational direction, pressure at port B
2 "Clockwise" rotational direction, pressure at port A
3 Bidirectional direction of rotation
Notice
▶The values given are maximum values and do not apply
to continuous operation.
▶The permissible axial force in direction -Fax is to be avoided as the bearing service life is reduced.
▶Special requirements apply in the case of belt output drives. Please contact us.
1)With intermittent operation
2)When at standstill or when axial piston unit working in depressurized conditions. Higher forces are permissible under pressure, please contact us.
3) Please contact us.
