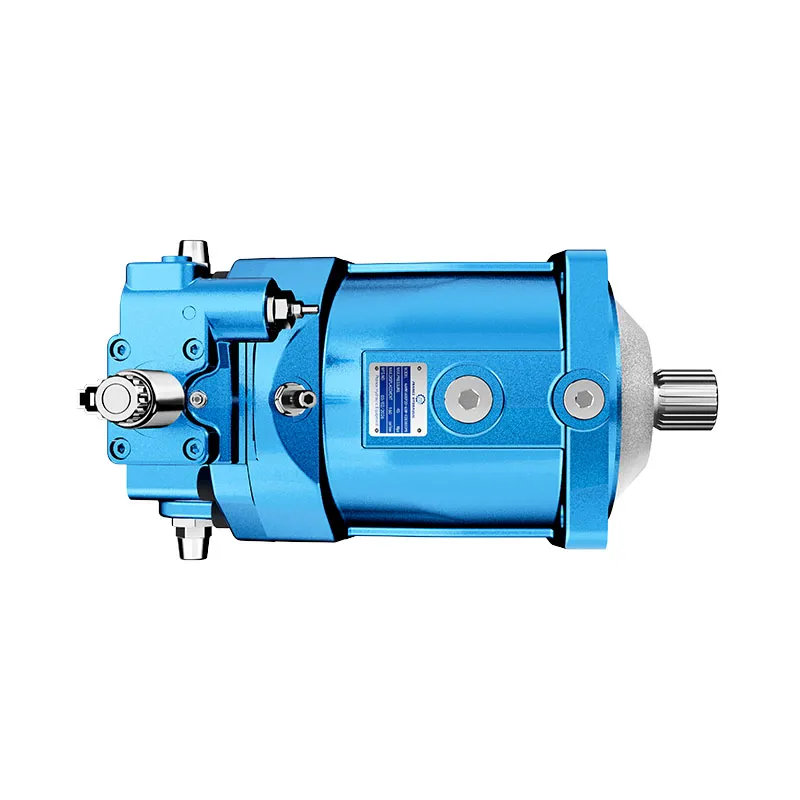

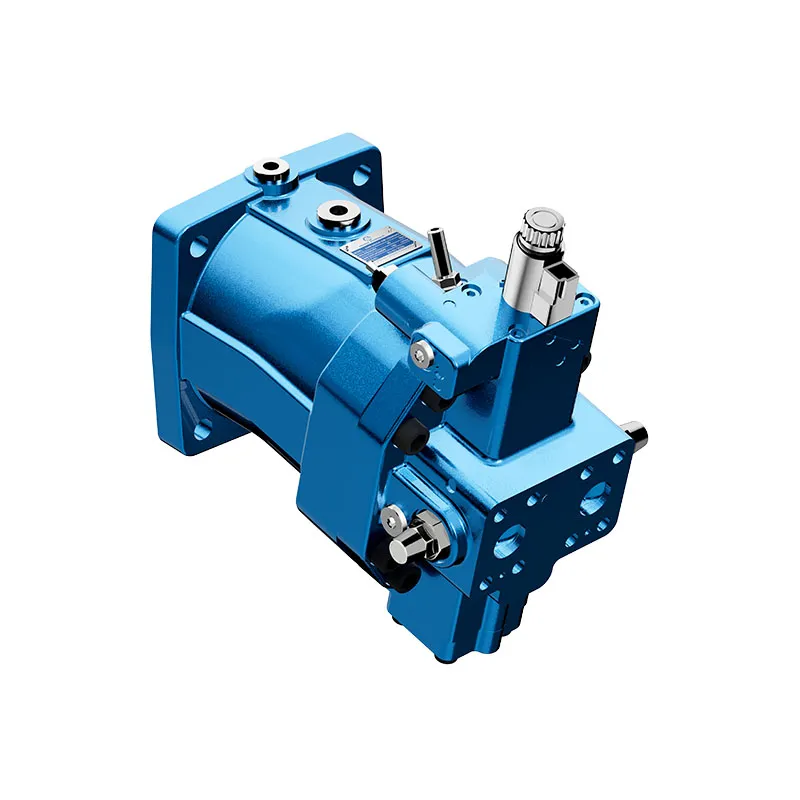

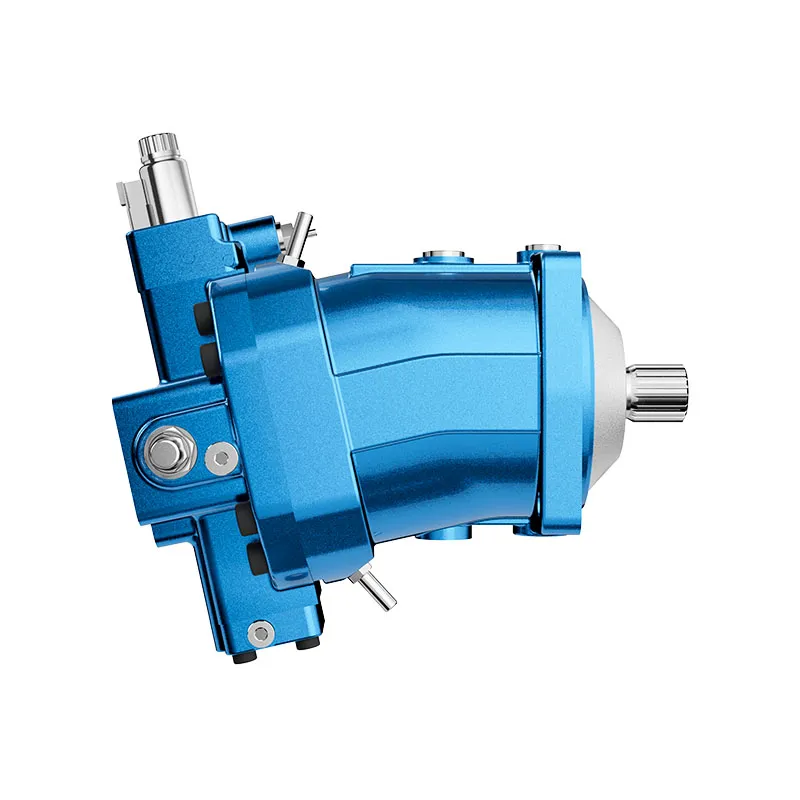

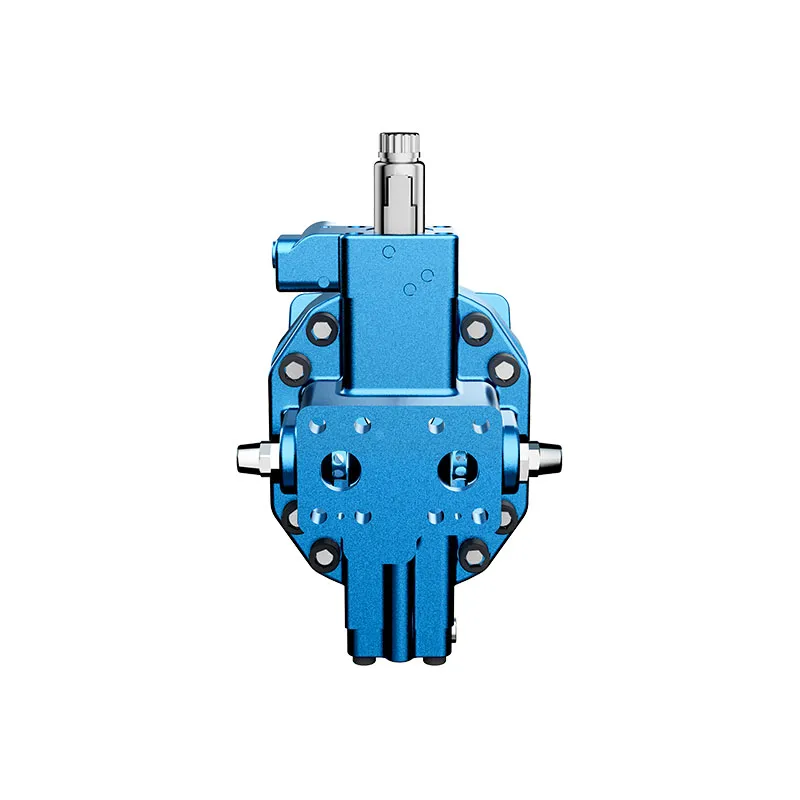

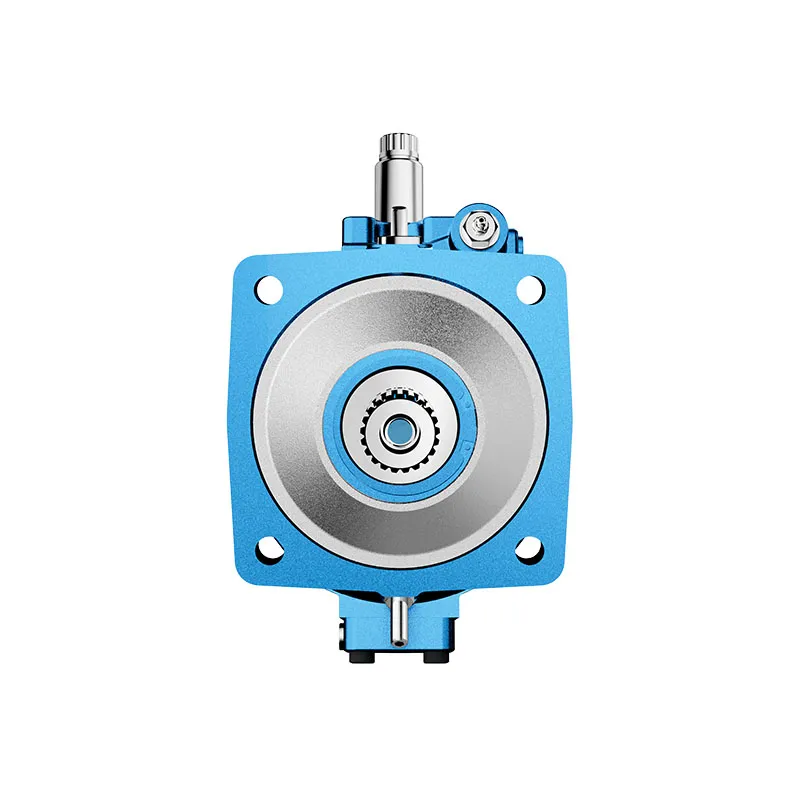

A6VM Variable Displacement Bent Axis Motor
The A6VM variable displacement bent-axis motor is selected around the required torque-speed envelope and control behavior. Its available displacement settings can cover different operating points, but each setting remains subject to pressure, speed and duty limits.
- Variable bent-axis motor
- Multiple displacement-control arrangements
- Flushing and boost valve options
- Counterbalance configuration must be specified
PRANCE HYDRAULIC · PRODUCT SERIES
Axial piston; bent axis, variable displacement · Confirm open or closed circuit configuration
The A6VM variable displacement bent-axis motor is selected around the required torque-speed envelope and control behavior. Its available displacement settings can cover different operating points, but each setting remains subject to pressure, speed and duty limits.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Variable bent-axis motor
- Multiple displacement-control arrangements
- Flushing and boost valve options
- Counterbalance configuration must be specified
CATEGORIES: Piston Motor, Variable Displacement Piston Motor
A6VM Features & Application
Variable bent-axis motor
Specify the displacement range or switching arrangement and verify performance at each required setting.
Multiple displacement-control arrangements
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
Flushing and boost valve options
Account for pilot or replenishment demand and the relevant pressure limits. Include filtration and the return or drain route in the circuit review.
Counterbalance configuration must be specified
Specify the full A6VM order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
A6VM Specifications
| Series / model | A6VM |
|---|---|
| Product type | A6VM Variable Displacement Bent Axis Motor |
| Design | Axial piston; bent axis, variable displacement |
| Circuit / selection | Confirm open or closed circuit configuration |
| Published technical-table sizes | 28, 55, 80, 107, 140 and 160 |
| Displacement and control | Match size and control to the exact offered configuration |
A6VM Selection & Configuration
The A6VM variable displacement bent-axis motor is selected around the required torque-speed envelope and control behavior. Its available displacement settings can cover different operating points, but each setting remains subject to pressure, speed and duty limits.
Compare starting, continuous and high-speed duty separately. Provide the control type and desired displacement on loss of command or pilot pressure. Confirm whether flushing, boost or counterbalance components are included rather than inferring them from the product photograph.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the A6VM nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

A6VM Buying Guide
Use this sequence to prepare the A6VM configuration for review and quotation.
- Define starting and continuous torque, speed range and duty cycle.
- Specify available flow, work-port pressure difference and return pressure.
- Confirm the displacement setting and required behavior during starting and stopping.
- Check shaft, mounting pilot, flange, port orientation and external loads.
- Review case drainage, replenishment and any displacement control.
- Specify fluid conditions and any independent braking requirement.
- Approve the complete model, operating envelope, drawing and quantity.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete A6VM code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your A6VM Application
Send the full model code, operating duty, installation details and quantity.
Request a A6VM QuotationA6VM Questions Before Ordering
What type of product is the A6VM?
A6VM Variable Displacement Bent Axis Motor. Design: Axial piston; bent axis, variable displacement. Confirm open or closed circuit configuration. Confirm the complete order code for the offered version.
Can a similar motor replace the A6VM?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define starting and continuous torque, speed range and duty cycle. Specify available flow, work-port pressure difference and return pressure. Attach the nameplate, complete order code, installation drawing and required quantity.
A6VM Technical Data & Documents
View A6VM catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
| Size | NG | 28 | 55 | 80 | 107 | 140 | 160 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 28.1 | 54.8 | 80 | 107 | 140 | 160 | |
| Vgmin | cm3 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Vgx | cm3 | 18 | 35 | 51 | 68 | 88 | 61 | ||
| Maximum rotational speed2)(while adhering to the maximum permissible inlet flow) | at Vgmax | nnom | rpm | 5550 | 4450 | 3900 | 3550 | 3250 | 3100 |
| at Vg<Vgx | nmax | rpm | 8750 | 7000 | 6150 | 5600 | 5150 | 4900 | |
| where Vgo | nmax | rpm | 10450 | 8350 | 7350 | 6300 | 5750 | 5500 | |
| Inlet flow3) | at nnom and Vgmax | qvmax | l/min | 156 | 244 | 312 | 380 | 455 | 496 |
| Torque4) | at Vgmax and Δp=400bar | T | Nm | 179 | 349 | 509 | 681 | 891 | 1019 |
| at Vgmax and Δp= 350bar | T | Nm | 157 | 305 | 446 | 596 | 778 | 891 | |
| Rotary stiffness | Vgmax to Vg/2 | cmin | kNm/rad | 6 | 10 | 16 | 21 | 34 | 35 |
| Vg/2 to 0 (interpolated) | cmin | kNm/rad | 18 | 32 | 48 | 65 | 93 | 105 | |
| Moment of inertia for rotary group | JTW | kgm2 | 0.0014 | 0.0042 | 0.008 | 0.127 | 0.0207 | 0.0253 | |
| Maximum angular acceleration | α | rad/s2 | 47000 | 31500 | 24000 | 19000 | 11000 | 11000 | |
| Case volume | V | l | 0.5 | 0.75 | 1.2 | 1.5 | 1.8 | 2.4 | |
| Weight approx. | m | kg | 16 | 28 | 36 | 46 | 61 | 62 | |
| Size | NG | 200 | 250 | 355 | 500 | 1000 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 200 | 250 | 355 | 500 | 1000 | |
| Vgmin | cm3 | 0 | 0 | 0 | 0 | 0 | ||
| Vgx | cm3 | 76 | 205 | 300 | 417 | 1000 | ||
| Maximum rotational speed2)(while adhering to the maximum permissible inlet flow) | at Vgmax | nnom | rpm | 2900 | 2700 | 2240 | 2000 | 1600 |
| at Vg<Vgx | nmax | rpm | 4600 | 3300 | 2650 | 2400 | 1600 | |
| where Vgo | nmax | rpm | 5100 | 3300 | 2650 | 2400 | 1600 | |
| Inlet flow3) | at nnom and Vgmax | qvmax | l/min | 580 | 675 | 795 | 1000 | 1600 |
| Torque4) | at Vgmax and Δp=400bar | T | Nm | 1273 | - | - | - | - |
| at Vgmax and Δp= 350bar | T | Nm | 1114 | 1391 | 1978 | 2785 | 5571 | |
| Rotary stiffness | Vgmax to Vg/2 | cmin | kNm/rad | 44 | 60 | 75 | 115 | 281 |
| Vg/2 to 0 (interpolated) | cmin | kNm/rad | 130 | 181 | 262 | 391 | 820 | |
| Moment of inertia for rotary group | JTW | kgm2 | 0.0353 | 0.061 | 0.102 | 0.178 | 0.55 | |
| Maximum angular acceleration | α | rad/s2 | 11000 | 10000 | 8300 | 5500 | 4000 | |
| Case volume | V | l | 2.7 | 3.00 | 5.0 | 7.0 | 16.0 | |
| Weight approx. | m | kg | 78 | 100 | 170 | 210 | 430 | |

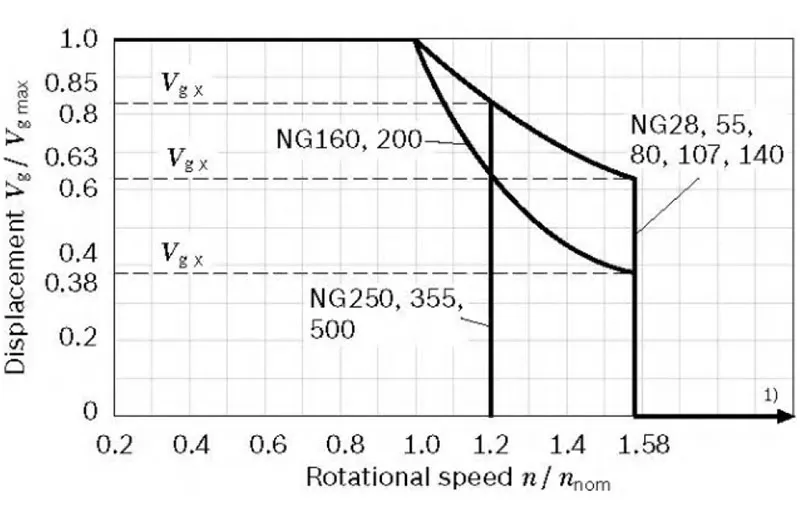

Speed range
The minimum rotational speed nmin is not restricted. Please consult us regarding applications requiring uniformity of the rotatory motion at low speeds. 1)The minimum and maximum displacement can be steplessly adjusted,(standard setting for sizes 250 to 1000 if ordering code is missing.Vgmin =0.2×Vgmax, Vg max = Vgmax) 2) The values are applicable: -for the optimum viscosity range from Vopt=36 to 16 mm2/s -with hydraulic fluid based on mineral oils 3)Observe limitation of displacement due to counterbalance valve 4) Torque without radial force, with radial force.Notice
▶Theoretical values, without efficiency and tolerances;values rounded ▶Operation above the maximum values or below the minimum Values may result in a loss of function, a reducd service life or in the destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261.▼Permissible displacement in relation to rotational speed
| Determining the operating characteristics | ||
| Inlet flow | qv=(Vg×n)/(1000×ηv) | [i/min] |
| Rotational speed | n=(qv×1000×ηv)/Vg | [rpm] |
| Torque | T=(Vg×Δp×ηhm)/(20×π) | [Nm] |
| Power | P=(2π×T×n)/60000=(qv×Δp×ηt)/600 | [kW] |
Key
Vg=Displacement per revolution [cm3] Δp=Differential pressure [bar] n=Rotational speed [rpm] ηv=Volumetric efficiency ηhm=Hydraulic-mechanical efficiency ηt=Total efficiency (nt=nv × nhm)Watch A6VM Product Video
Related Selection Resources
Request a A6VM Quotation
Tell us your required configuration, quantity and application.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | |||
| A6V | M | / | 63 | W | - | V | - |
Hydraulic fluid
| 01 | Mineral oil and HFD. HFD for sizes 250 to 1000 only in conjunction with long-life bearing "L"(without code) | ||
| HFB, HFC hydraulic fluid | Size 28 to 200 (without code) | ||
| Sizes 250 to 1000(only in conjunction with long-life bearings"L") | E | ||
Axial piston unit
| 02 | Bent-axis design, variable | A6V |
Drive shaft bearing
| 28...200 | 250 | 355 | 500 | 1000 | |||
| 03 | Standard bearings (without code) | ● | ● | ● | ● | - | |
| Long-life bearings | - | ● | ● | ● | ● | L |
Operating mode
| 04 | Motor (plug-in motor A6VE, see data sheet 91606) | M |
Size (NG)
| 05 | Geometric displacement | 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 |
Control device1)
| 06 | Proportional control, hydraulic | Δpst =10 bar | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | HD1 | |
| Δpst =25 bar | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | HD2 | |||
| Δpst =35 bar | - | - | - | - | - | - | - | ● | ● | ● | ● | HD3 | |||
| Proportional control, electric | U=12V | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | EP1 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | EP2 | |||
| Two-point control, hydraulic | - | - | - | - | - | - | - | ● | ● | ● | ● | HZ | |||
| ● | - | - | - | ● | ● | ● | - | - | - | - | HZ1 | ||||
| - | ● | ● | ● | - | - | - | - | - | - | - | HZ3 | ||||
| Two-point control, electric | U=12V | ● | - | - | - | ● | ● | ● | ● | ● | ● | ● | EZ1 | ||
| U=24V | ● | - | - | - | ● | ● | ● | ● | ● | ● | ● | EZ2 | |||
| U=12V | - | ● | ● | ● | - | - | - | - | - | - | - | EZ3 | |||
| U=24V | - | ● | ● | ● | - | - | - | - | - | - | - | EZ4 | |||
| Automatic control,
high-pressure related |
With minimum pressure increase
Δp≤approx.10 bar With pressure increase Δp= 100bar |
● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | HA1 | ||
| ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | HA2 | ||||
| Automatic control, speed related
pst/pHD=3/100 Hydraulic travel direction valve |
- | - | - | - | - | - | - | ● | ● | ● | ○ | DA | |||
| pst/pHD=5/100 | Hydraulic travel direction valve | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA1 | ||
| Electric travel direction valve+
electric Vg max circuit |
U=12V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA2 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA3 | |||
| pst/pHD=8/100 | Hydraulic travel direction valve | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA4 | ||
| Electric travel direction valve+
electric Vg max circuit |
U=12V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA5 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | DA6 | |||
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | ||||
| 07 | Without pressure control/override | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Pressure control | fixed setting | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | D | |
| Hydraulic override, two-point | ● | ● | ● | ● | ● | ● | ● | 2) | 2) | 2) | 2) | E | ||
| Hydraulic remote control, proportional | - | - | - | - | - | - | - | ● | ● | ● | ● | G | ||
•=Available ○= On request - =Not available
1)Specify response time damping when ordering (sizes 28 to 200)
2) 2nd pressure setting fitted as standard with Version D (sizes 250 to 1000)
Overrides for the HA1 and HA2 controls
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | ||||
| 08 | Without override (without code) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||
| Hydraulic override, remote control, proportional | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | T | ||
| Remote control electric override, two-point | U=12V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | U1 | |
| U=24V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | U2 | ||
| Electric override | U=12V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | R1 | |
| +travel direction valve, electric | U=24V | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | R2 | |
Series
| 09 | Series 6, index 3 | 63 |
Direction of rotation
| 10 | Viewed on drive shaft, bidirectional | W |
Setting ranges for displacement3)
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |||
| 11 | Vgmin = 0 to 0.7 Vgmax | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | |
| Vgmin =0 to 0.4 Vgmax Vgmax =Vgmax to 0.8 Vgmax | - | - | - | - | - | - | - | ● | ● | ● | ● | 1 | |
| Vgmin > 0.4 Vgmax to 0.8 Vgmax Vgmax =Vgmax to 0.8 Vgmax | - | - | - | - | - | - | - | ● | ● | ● | ● | 2 | |
Sealing material
| 12 | FKM (fluoroelastomer) | V |
Drive shaft
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |||
| 13 | Splined shaft DIN 5480 | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | A |
| ● | ● | ● | ● | ● | ● | - | ● | ● | ● | ● | Z | ||
| Parallel keyed shaft DIN 6885 | - | - | - | - | - | - | - | ● | ● | ● | ● | P | |
Mounting flange
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |||
| 14 | ISO 3019-2 | 4-hole | ● | ● | ● | ● | ● | ● | ● | ● | - | - | - |
| 8-hole | - | - | - | - | - | - | - | - | ● | ● | ● | ||
Port plate for working line4)
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | ||||||
| 15 | SAE working ports A and B at rear | 01 | 0 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 010 | |
| 7 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 017 | ||||
| SAE working ports A and B lateral, opposite | 02 | 0 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 020 | ||
| 7 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | 027 | ||||
| SAE working ports A and B lateral, opposite + rear | 15 | 0 | - | - | - | - | - | - | - | ● | ● | ● | ● | 150 | ||
| Port plate with 1-stage pressure-relief valves for,mountinga counterbalance valve5) | for BVD20 | 37 | 0 | - | - | - | ● | - | - | - | - | - | - | - | 370 | |
| 8 | - | - | - | ● | - | - | - | - | - | - | - | 378 | ||||
| for BVD20/BVD25 | 38 | 0 | - | ● | ● | ● | ● | ● | ● | ●6) | - | - | - | 380 | ||
| 8 | - | ● | ● | ● | ● | ● | ● | ●6) | - | - | - | 388 | ||||
| for BVE | 38 | 0 | - | - | - | ● | ● | ● | ● | - | - | - | - | 380 | ||
| 8 | - | - | - | ● | ● | ● | ● | - | - | - | - | 388 | ||||
0=Without valve
7=Flushing and boost-pressure valve, mounted
8=Counterbalance valve mounted7)
•=Available ○= On request - =Not available
3)Please specify exact settings for Vgmin and Vgmax in plain text when ordering:Vgmin=...cm3,Vgmax=...cm3
4) Fastening thread,metric
5) Only possible in combination with HD,EP and HA control.
6) Type code for counterbalance valve to be quoted separately in accordance with data sheet 95522- BVD or 95525-BVE.
7) Counterbalance valve MHB32,please contact us.
Speed sensor
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 10008) | |||
| 16 | Without speed sensor (without code) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | O |
| Prepared for HDD speed sensor | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ● | ● | ● | - | F | |
| HDD speed sensor mounted9) | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ● | ● | ● | - | H | |
| Prepared for DSM/DSA speed sensor | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | U | |
| DSM/DSA speed sensor mounted9) | ● | ● | ● | ● | ● | ● | ● | - | - | - | - | V | |
Swivel angel sensor
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |||
| 17 | Without swivel angle sensor | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | - | |
| Optical swivel angle sensor | - | - | - | - | - | - | - | ● | ● | ● | ● | V | |
| Electric swivel angle sensor | - | - | - | - | - | - | - | ● | ● | ● | ● | E | |
Connector for solenoids
| 28 to 200 | 250 to 1000 | |||
| 18 | Without connector (without solenoid, with hydraulic control only)(sizes 250 to 1000) | ● | - | O |
| - | ● | |||
| DEUTSCH molded connector, 2-pin-without suppressor diode | ● | - | P | |
| HIRSCHMANN connector-without suppressor diode | - | ● | ||
Beginning of control
| 28 | 55 | 80 | 107 | 140 | 160 | 200 | 250 | 355 | 500 | 1000 | |||
| 19 | At Vgmin (standard for HA) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | A |
| At Vgmax(standard for HD, HZ, EP, EZ, DA) | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | B | |
Standard/special version
| 20 | Standard version | |
| Standard version with installation variants, e.g. T ports open and closed contrary to standard | -Y | |
| Specialversion | -S |
•=Available ○= On request ▲=Not for new projects - =Not available
Notice
▶In addition to the type code, please specify the relevant technical data when placing your order.
8) Please contact us.
9) Specify type code separately for sensor in accordance with data sheet 95132-DSM or 95133-DSA,95135-HDD and observe the requirements for the electronics.
Technical data
| Size | NG | 28 | 55 | 80 | 107 | 140 | 160 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 28.1 | 54.8 | 80 | 107 | 140 | 160 | |
| Vgmin | cm3 | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Vgx | cm3 | 18 | 35 | 51 | 68 | 88 | 61 | ||
| Maximum rotational speed2)(while adhering to the maximum permissible inlet flow) | at Vgmax | nnom | rpm | 5550 | 4450 | 3900 | 3550 | 3250 | 3100 |
| at Vg<Vgx | nmax | rpm | 8750 | 7000 | 6150 | 5600 | 5150 | 4900 | |
| where Vgo | nmax | rpm | 10450 | 8350 | 7350 | 6300 | 5750 | 5500 | |
| Inlet flow3) | at nnom and Vgmax | qvmax | l/min | 156 | 244 | 312 | 380 | 455 | 496 |
| Torque4) | at Vgmax and Δp=400bar | T | Nm | 179 | 349 | 509 | 681 | 891 | 1019 |
| at Vgmax and Δp= 350bar | T | Nm | 157 | 305 | 446 | 596 | 778 | 891 | |
| Rotary stiffness | Vgmax to Vg/2 | cmin | kNm/rad | 6 | 10 | 16 | 21 | 34 | 35 |
| Vg/2 to 0 (interpolated) | cmin | kNm/rad | 18 | 32 | 48 | 65 | 93 | 105 | |
| Moment of inertia for rotary group | JTW | kgm2 | 0.0014 | 0.0042 | 0.008 | 0.127 | 0.0207 | 0.0253 | |
| Maximum angular acceleration | α | rad/s2 | 47000 | 31500 | 24000 | 19000 | 11000 | 11000 | |
| Case volume | V | l | 0.5 | 0.75 | 1.2 | 1.5 | 1.8 | 2.4 | |
| Weight approx. | m | kg | 16 | 28 | 36 | 46 | 61 | 62 | |
| Size | NG | 200 | 250 | 355 | 500 | 1000 | ||
| Geometric displacement, per revolution1) | Vgmax | cm3 | 200 | 250 | 355 | 500 | 1000 | |
| Vgmin | cm3 | 0 | 0 | 0 | 0 | 0 | ||
| Vgx | cm3 | 76 | 205 | 300 | 417 | 1000 | ||
| Maximum rotational speed2)(while adhering to the maximum permissible inlet flow) | at Vgmax | nnom | rpm | 2900 | 2700 | 2240 | 2000 | 1600 |
| at Vg<Vgx | nmax | rpm | 4600 | 3300 | 2650 | 2400 | 1600 | |
| where Vgo | nmax | rpm | 5100 | 3300 | 2650 | 2400 | 1600 | |
| Inlet flow3) | at nnom and Vgmax | qvmax | l/min | 580 | 675 | 795 | 1000 | 1600 |
| Torque4) | at Vgmax and Δp=400bar | T | Nm | 1273 | - | - | - | - |
| at Vgmax and Δp= 350bar | T | Nm | 1114 | 1391 | 1978 | 2785 | 5571 | |
| Rotary stiffness | Vgmax to Vg/2 | cmin | kNm/rad | 44 | 60 | 75 | 115 | 281 |
| Vg/2 to 0 (interpolated) | cmin | kNm/rad | 130 | 181 | 262 | 391 | 820 | |
| Moment of inertia for rotary group | JTW | kgm2 | 0.0353 | 0.061 | 0.102 | 0.178 | 0.55 | |
| Maximum angular acceleration | α | rad/s2 | 11000 | 10000 | 8300 | 5500 | 4000 | |
| Case volume | V | l | 2.7 | 3.00 | 5.0 | 7.0 | 16.0 | |
| Weight approx. | m | kg | 78 | 100 | 170 | 210 | 430 | |
Speed range
The minimum rotational speed nmin is not restricted. Please consult us regarding applications requiring uniformity of the rotatory motion at low speeds.
1)The minimum and maximum displacement can be steplessly adjusted,(standard setting for sizes 250 to 1000 if ordering code is missing.Vgmin =0.2×Vgmax, Vg max = Vgmax)
2) The values are applicable:
-for the optimum viscosity range from Vopt=36 to 16 mm2/s
-with hydraulic fluid based on mineral oils
3)Observe limitation of displacement due to counterbalance valve
4) Torque without radial force, with radial force.
Notice
▶Theoretical values, without efficiency and tolerances;values rounded
▶Operation above the maximum values or below the minimum Values may result in a loss of function, a reducd service life or in the destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261.
▼Permissible displacement in relation to rotational speed

| Determining the operating characteristics | ||
| Inlet flow | qv=(Vg×n)/(1000×ηv) | [i/min] |
| Rotational speed | n=(qv×1000×ηv)/Vg | [rpm] |
| Torque | T=(Vg×Δp×ηhm)/(20×π) | [Nm] |
| Power | P=(2π×T×n)/60000=(qv×Δp×ηt)/600 | [kW] |
Key
Vg=Displacement per revolution [cm3]
Δp=Differential pressure [bar]
n=Rotational speed [rpm]
ηv=Volumetric efficiency
ηhm=Hydraulic-mechanical efficiency
ηt=Total efficiency (nt=nv × nhm)
