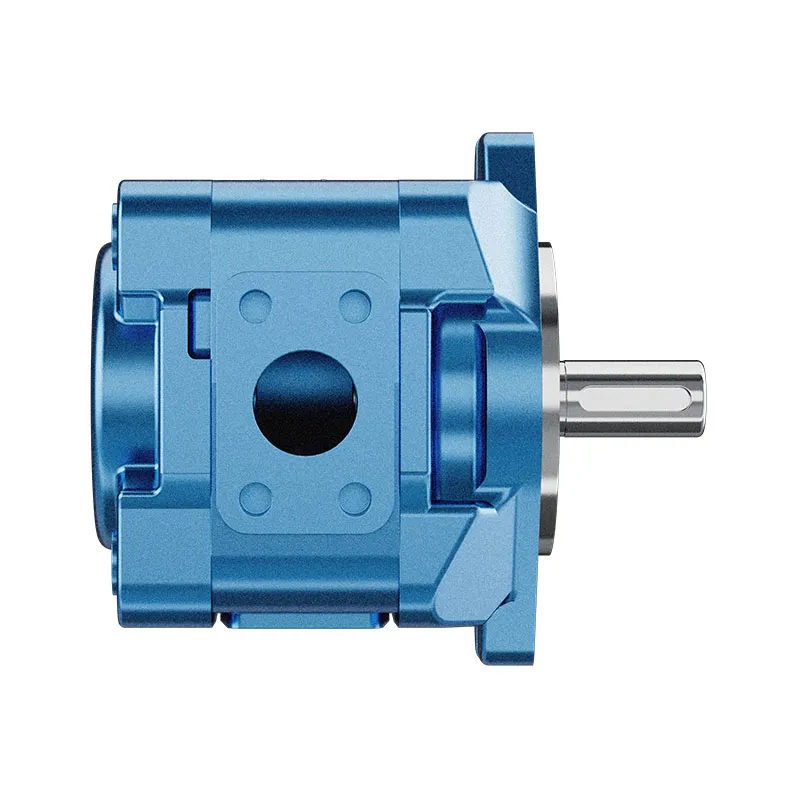

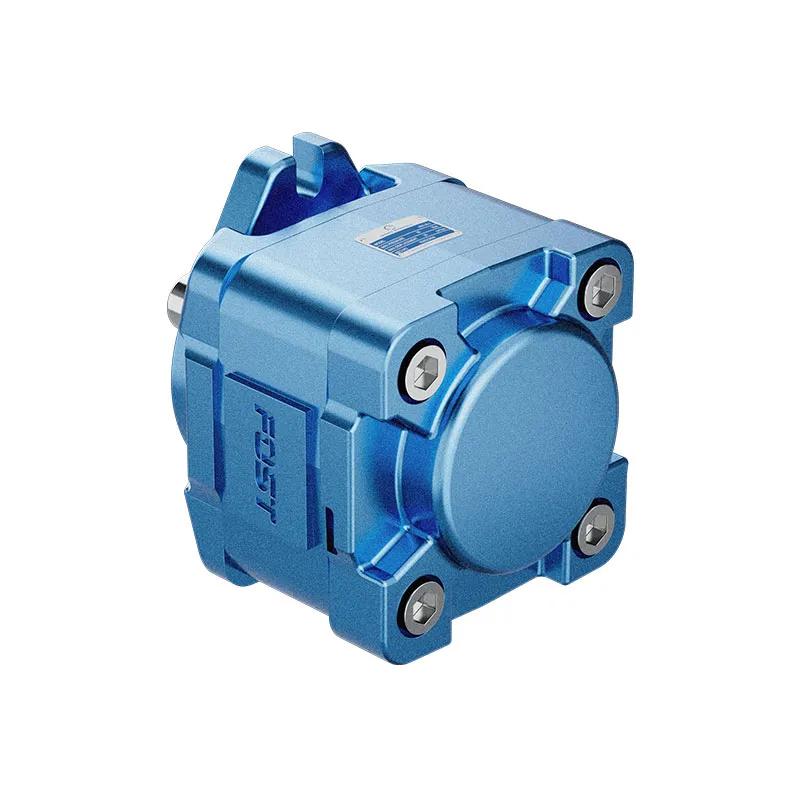

HG Internal Gear Pump for Injection Molding
The HG internal gear pump is listed for injection molding and other hydraulic machinery, including servo-driven systems. Its technical table separates HG0, HG1 and HG2 models, with different pressure and minimum-speed limits rather than one universal family rating.
- Internal gear construction
- Axial and radial pressure compensation listed
- HG0, HG1 and HG2 model groups
- Servo-drive application review requires minimum speed checks
PRANCE HYDRAULIC · PRODUCT SERIES
Internal gear; pressure compensation · Confirm the selected hydraulic circuit
The HG internal gear pump is listed for injection molding and other hydraulic machinery, including servo-driven systems. Its technical table separates HG0, HG1 and HG2 models, with different pressure and minimum-speed limits rather than one universal family rating.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Internal gear construction
- Axial and radial pressure compensation listed
- HG0, HG1 and HG2 model groups
- Servo-drive application review requires minimum speed checks
CATEGORIES: Internal Gear Pump, Gear Pump
HG Features & Application
Internal gear construction
Specify the full HG order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
Axial and radial pressure compensation listed
Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.
HG0, HG1 and HG2 model groups
Include the series and all order-code suffixes in the enquiry. A common nominal size does not establish compatibility.
Servo-drive application review requires minimum speed checks
Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.
HG Specifications
| Series / model | HG |
|---|---|
| Product type | HG Internal Gear Pump for Injection Molding |
| Design | Internal gear; pressure compensation |
| Circuit / selection | Confirm the selected hydraulic circuit |
| Model groups | HG0, HG1 and HG2 |
| Listed geometric displacement | 8.0–162.8 mL/rev across the published model table |
| Pressure and speed | Use the individual model row, not a family-wide maximum |
HG Selection & Configuration
The HG internal gear pump is listed for injection molding and other hydraulic machinery, including servo-driven systems. Its technical table separates HG0, HG1 and HG2 models, with different pressure and minimum-speed limits rather than one universal family rating.
In a variable-speed drive, check the lowest speed during pressure holding as carefully as the maximum flow speed. HG0 and the larger model groups have different minimum speeds in the existing table. The HG2 size 160 pressure row is also lower than the other HG2 rows.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the HG nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

HG Buying Guide
Use this sequence to prepare the HG configuration for review and quotation.
- Define required flow at the actual drive speed and continuous pressure.
- Identify peak pressure, duration and the work cycle.
- Confirm the selected displacement control and any auxiliary-drive requirement.
- Match rotation viewed from the shaft end, shaft, flange and ports.
- Review inlet conditions, drain routing and the installation envelope.
- Confirm fluid, viscosity, temperature, filtration and seals.
- Approve the complete model, control, drawing, quantity and delivery terms.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete HG code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your HG Application
Send the full model code, operating duty, installation details and quantity.
Request a HG QuotationHG Questions Before Ordering
What type of product is the HG?
HG Internal Gear Pump for Injection Molding. Design: Internal gear; pressure compensation. Confirm the selected hydraulic circuit. Confirm the complete order code for the offered version.
Can a similar pump replace the HG?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.
HG Technical Data & Documents
View HG catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical Data
SPE CIFICATION
| MODEL | SIZE | DESP. mL/r | PRESSURE MPa | ROTATING SPEED r/min | WEIGHT kg | ||
| RATED | MAX | MAX | MIN | ||||
| HG0 | 8 | 8.0 | 25 | 30 | 3000 | 600 | 4.4 |
| 10 | 10.0 | 31.5 | 35 | 3000 | 600 | 4.6 | |
| 13 | 13.3 | 31.5 | 35 | 3000 | 600 | 4.9 | |
| 16 | 16.0 | 31.5 | 35 | 3000 | 600 | 5.2 | |
| 20 | 20.0 | 31.5 | 35 | 3000 | 600 | 5.6 | |
| HG1 | 25 | 25.3 | 31.5 | 35 | 3000 | 200 | 14.5 |
| 32 | 32.7 | 31.5 | 35 | 3000 | 200 | 15 | |
| 40 | 40.1 | 31.5 | 35 | 3000 | 200 | 16 | |
| 50 | 50.7 | 31.5 | 35 | 3000 | 200 | 17 | |
| 63 | 63.7 | 31.5 | 35 | 3000 | 200 | 18.5 | |
| HG2 | 80 | 81.4 | 31.5 | 35 | 3000 | 200 | 43.5 |
| 100 | 100.2 | 31.5 | 35 | 3000 | 200 | 45.5 | |
| 125 | 125.3 | 31.5 | 35 | 3000 | 200 | 48 | |
| 160 | 162.8 | 21 | 26 | 3000 | 200 | 52 | |
