Load Sensing Hydraulic Valve: Signal Pressure, Margin, and Selection

A load sensing hydraulic valve sends a signal representing the highest active load back to a compatible variable pump. The pump then supplies enough pressure to overcome that load plus a control margin. When properly sized and compensated, this arrangement reduces throttling losses and can preserve predictable actuator flow as loads change. It is a coordinated pump-and-valve system, not a special port that works by itself.

This guide is written for engineers, maintenance teams and equipment buyers who need a defensible decision rather than a generic definition. It explains the working relationship, the measurements that matter, common failure interpretations and the records that should travel with a replacement request. Hydraulic systems store dangerous energy; isolate, depressurize and follow the machine manufacturer’s procedure before opening a line or removing a component.

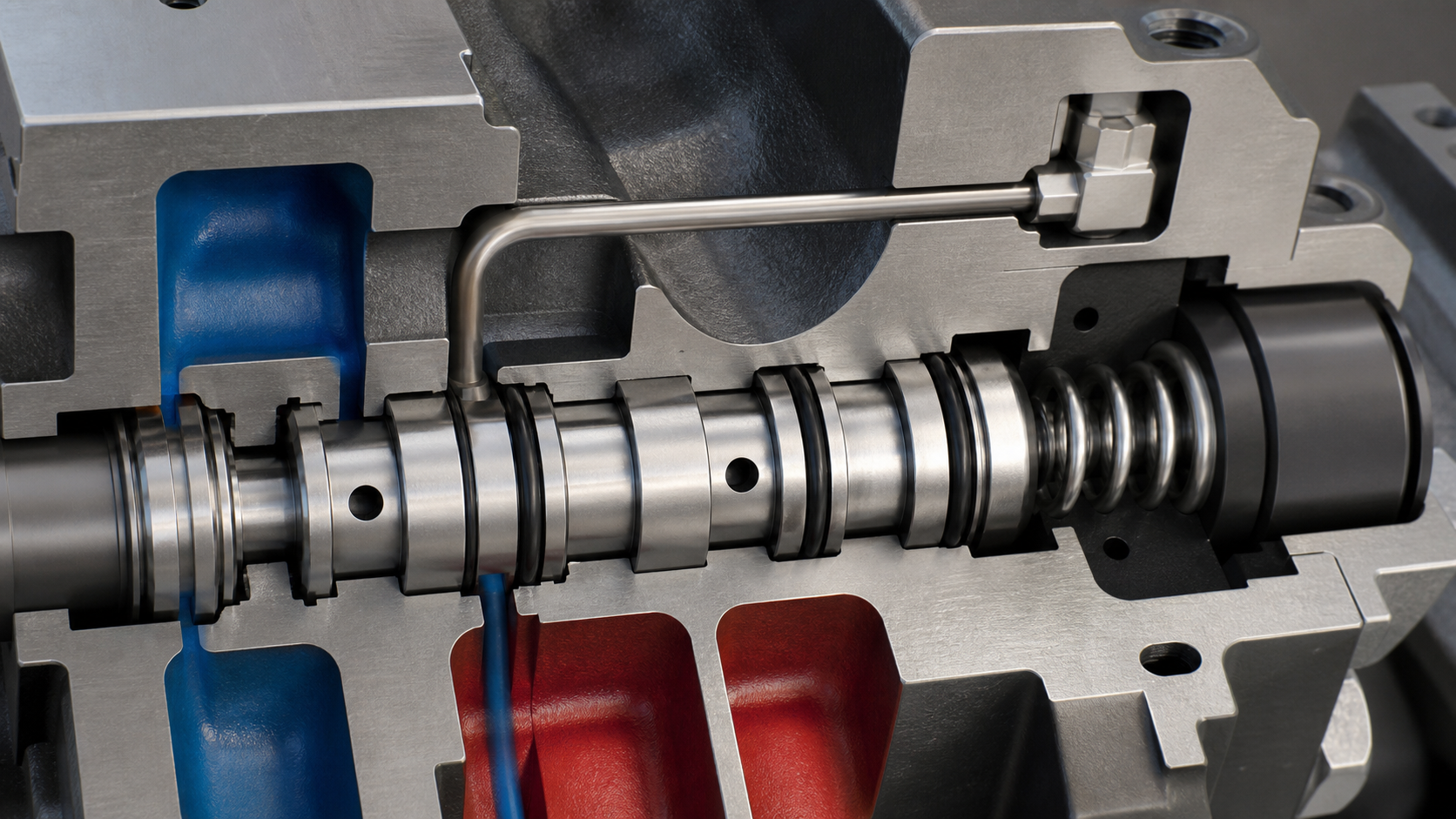

What load sensing hydraulic valve means in a real circuit

The relevant hardware includes sectional valve, load-sense shuttle network, pressure compensators, LS signal line, variable pump and pressure limiter. Each item affects the result seen at the shaft or actuator. Pressure exists because the load resists flow, while flow determines motion rate. Leakage, restriction, compressibility and control response connect those quantities. That is why a component cannot be judged reliably on a bench description alone.

Select the pump, valve sections and signal network together. Confirm demanded flows, maximum load, pump margin, simultaneous functions, priority needs, standby pressure, signal-line dynamics and thermal limits. Put these conditions in a duty table with normal, peak and standby states. Separate continuous ratings from intermittent peaks. Record whether values were calculated, measured or copied from a data sheet. This small discipline prevents an optimistic peak number from being treated as a sustainable operating point.

How the components work together

Oil follows the available pressure gradient, but the path is defined by clearances, port timing and valve state. When a control element moves, it changes an opening or a displacement and the system settles at a new balance of pump supply, load demand and losses. The transition matters as much as the final reading: acceleration, deceleration, rapid valve shifts and cold starts often create the highest stress.

The correct interpretation begins with a schematic and a time sequence. Mark the source, load, return and drain paths. For every machine step, note which ports are connected, which volume can be trapped and where make-up oil can enter. Then compare that logic with the installed hoses. A surprising number of apparent component failures are caused by a port option, plumbing change or control state that does not match the drawing.

Item to verify	Why it matters	Useful evidence
sectional valve	Function and interface	Drawing or model code
load-sense shuttle network	Wear or restriction	Inspection photo and measurement
pressure compensators	Pressure and leakage	Hot and cold test result
LS signal line	Compatibility and orientation	Manufacturer service data
variable pump and pressure limiter	Cleanliness and surface condition	Oil and filter evidence

Selection and sizing workflow

Begin with the load. Convert the required force or torque and speed into pressure difference and flow, then add realistic allowances for efficiency and line losses. Check the complete operating envelope rather than selecting from a single nominal point. The prime mover must support the highest simultaneous hydraulic power, and the reservoir, cooler and filtration must handle the expected loss power.

Next, verify interfaces: shaft and mounting geometry, port size and thread, rotation, drain arrangement, electrical command, connector and environmental protection. Similar-looking components can have different internal options. Never infer displacement, spool function, pressure setting or rotation from appearance. Preserve the full nameplate and model code, and request a controlled drawing when interchangeability is important.

Finally, agree on acceptance criteria. Useful criteria include measured flow or speed at stated pressure and temperature, external leakage, case or drain flow, noise observations, response time and stable control. A procurement comparison that lists only unit price leaves the most expensive risks—installation changes, commissioning time and repeat failure—outside the decision.

Symptoms and what they do not prove

Common observations include slow functions, interaction between actuators, pressure hunting, high standby heat, no pump response and unstable low-flow control. None proves a single root cause. For example, heat can come from internal leakage, relief flow, throttling, excessive return pressure or unsuitable viscosity. Noise may be aeration, cavitation, mechanical contact or control oscillation. A failed seal may be the victim of case pressure or misalignment rather than the initiating fault.

Use a cause-and-evidence matrix. Put each plausible mechanism in one column and the reading that would support or contradict it in another. Test the safest, easiest distinctions first. Keep time-aligned readings where possible because a peak that lasts 200 milliseconds may disappear on a slow analog gauge while still stressing the component.

A safe diagnostic sequence

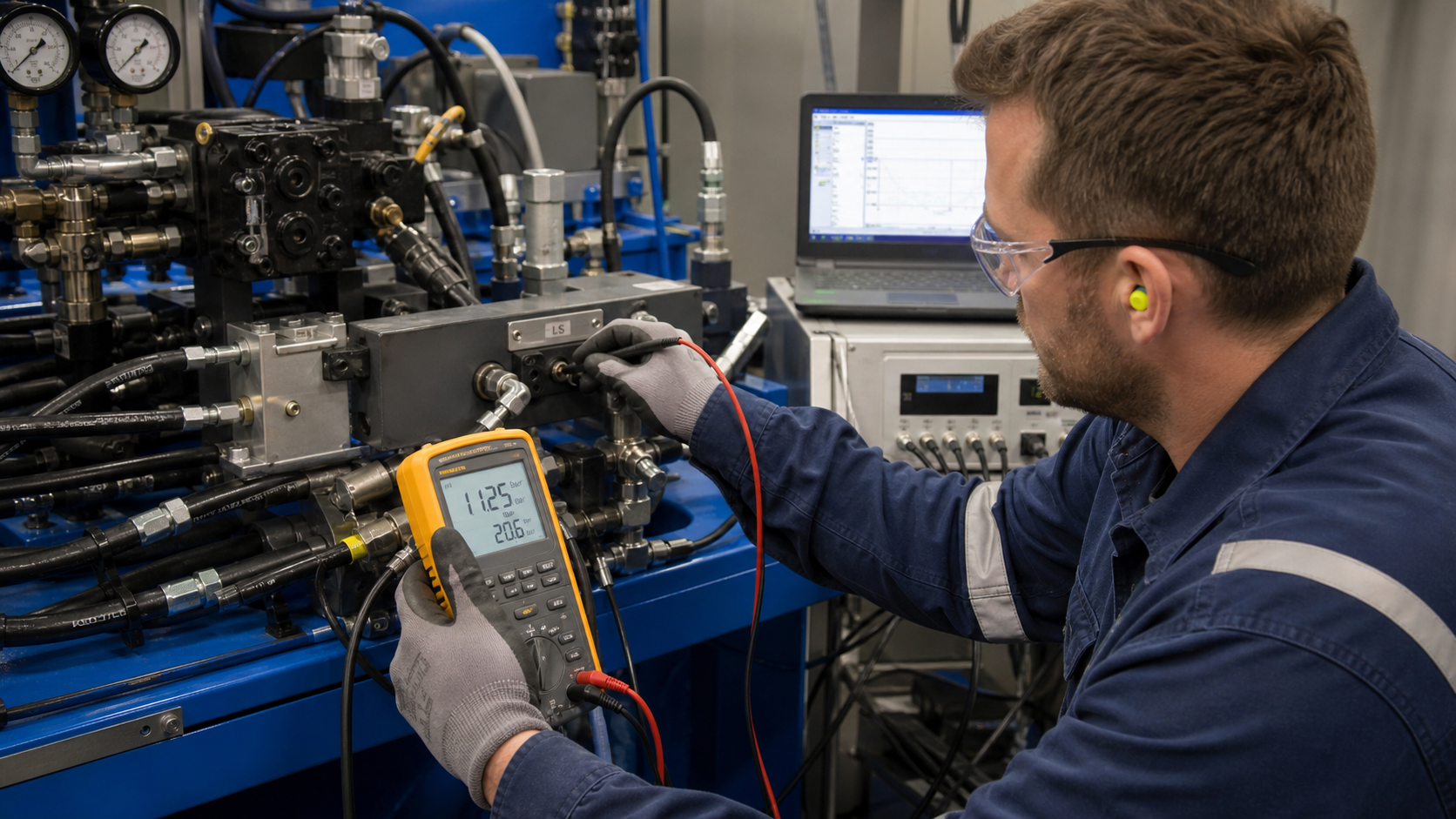

Measure pump outlet pressure and LS pressure simultaneously, calculate the actual margin, isolate signal leakage, confirm compensator orientation and test single and combined functions across the load range. Use instruments with suitable pressure, temperature and fluid compatibility ratings. Install test points before the trial where practical, route hoses away from personnel and rotating parts, and never search for a pinhole leak with a hand.

Run a baseline at low risk, then reproduce the duty gradually. Capture standby, no-load motion, normal load and the most demanding transition. Note oil temperature because viscosity changes both leakage and pressure loss. If the result changes as the machine warms, that is diagnostic evidence, not an inconvenience to average away.

After testing, compare readings with component and system limits. Separate pump pressure from pressure difference across the motor or valve. Separate motor outlet pressure from case pressure. Separate commanded current from actual spool position. These distinctions prevent a healthy component from being blamed for a measurement taken at the wrong point.

Installation and commissioning controls

Cleanliness during installation is part of reliability. Cap open lines, clean the work area, use compatible seals and lubricants, and flush contaminated circuits according to an approved plan. Pre-fill or prime components where the manufacturer requires it. Confirm shaft alignment and coupling freedom before applying power. A dry or misaligned first start can erase the value of a careful selection.

Start with pressure limited and load reduced. Verify rotation and flow direction immediately. Watch inlet condition, outlet pressure, case drain, leakage, temperature and sound. Stop if readings move rapidly toward a limit. Increase duty in controlled steps and retain the commissioning record as the reference for future troubleshooting.

Procurement and replacement checklist

• Complete manufacturer, series and model code
• Clear nameplate, port and mounting photographs
• Machine schematic and hose routing
• Normal, peak and standby pressure and flow
• Fluid type, viscosity grade and temperature range
• Speed, torque or actuator duty over time
• Return and case-drain pressure limits
• Contamination and filter evidence
• Failure description and retained damaged parts
• Required test report, drawing and traceability

For component options, review Prance Hydraulic’s valves range and the broader hydraulic product overview. Related technical reading: system behavior guide and diagnostic guide. These links help connect the informational question to a reviewable product specification without treating the article as a substitute for application engineering.

Educational video

Watch “Introduction to Proportional (Servo) Valves (Full Lecture)” on YouTube.

References

• OSHA: Hydraulic Systems Modification Safety
• Indiana DWD: Fundamentals of Fluid Power—Hydraulics
• Purdue Maha Fluid Power Research

Practical conclusion

The best decision is the one that remains correct across the machine’s full duty cycle and can be verified after installation. Keep the schematic, measurements, model-code interpretation and commissioning results together. That evidence shortens future troubleshooting, improves supplier communication and makes a repeat failure less likely.
