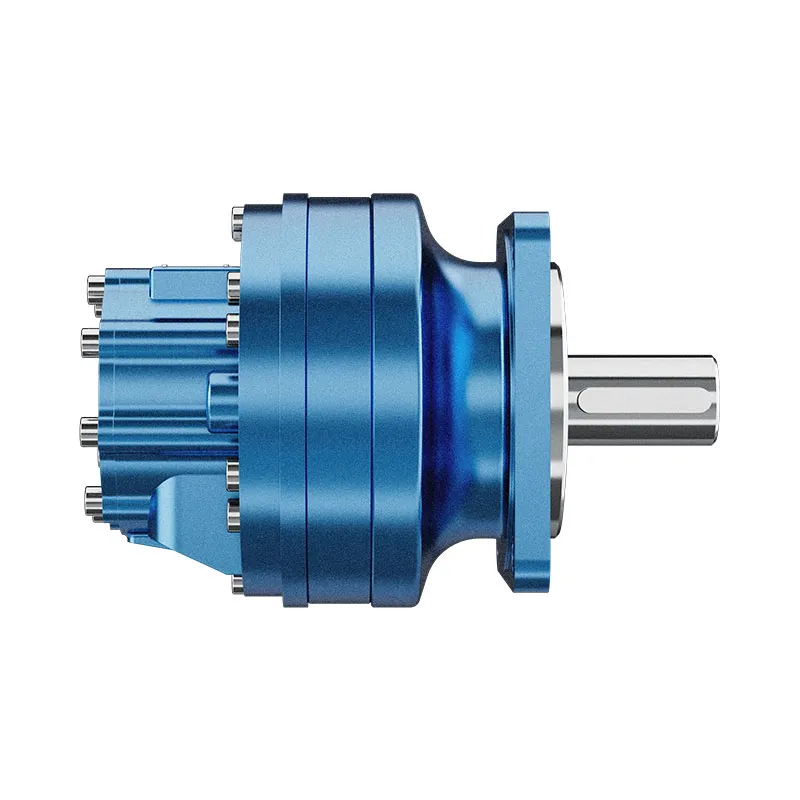

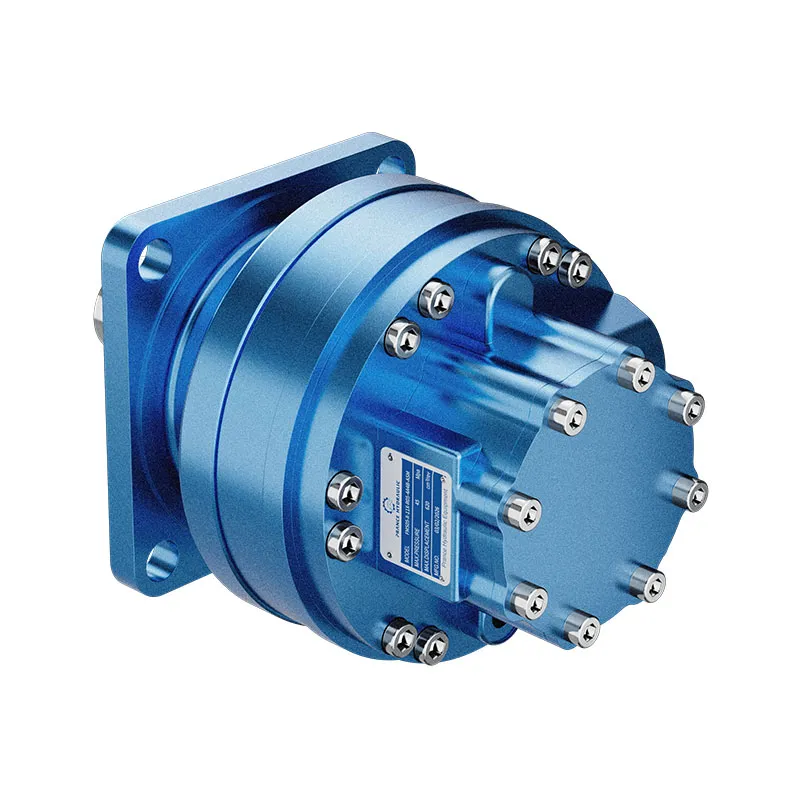

Hydraulic Radial Piston Motor MS

1.Modular design concept

2.Compact and sturdy

3.Stable operation at low speed

4.Low noise

5.efficient

6.Sealed tapered roller bearing

7.The output shaft can withstand large radial force. The upper seal of the shaft can withstand 5bar pressure

Detailed description

1.Modular Design Philosophy

2.Exceptional Power Density

3.Superior Low-Speed Performance

4.High-Pressure Capability

5.Efficient Power Transmission

Selection and RFQ

This motor series should be selected from the required torque, speed and duty cycle. Confirm displacement, working pressure, case-drain arrangement where applicable, mounting interface and fluid conditions before final selection.

Information to include in your RFQ

  • Required torque and speed at working pressure
  • Preferred displacement or calculated displacement
  • Mounting flange, shaft and port orientation
  • Duty cycle, fluid, temperature and operating environment

Related resources

Request a quote · Download center · OEM / ODM

Technical Data

Motor series Displacement options ml ml Mpa Mpa N.m N.m N.m/Mpa N.m/Mpa RPM RPM KW KW
FMS02 8 172 86 25 40 642 321 27 14 180 0-390 18 12
0 213 107 25 40 796 398 34 17 150 0-310
1 235 118 25 40 875 438 37 19 140 0-285
2 255 128 25 35 955 478 41 20 120 0-260
FMSE02 0 332 166 25 35 1240 620 53 26 118 0-200 22 16.5
1 364 182 25 35 1360 680 58 29 108 0-182
2 398 199 25 35 1485 742 63 32 98 0-165
FMS05 8 376 188 25 40 1405 702 60 30 135 0-250 29 19
0 468 234 25 40 1749 874 74 37 110 0-240
1 514 257 25 40 1921 960 82 41 100 0-220
2 560 280 25 35 2092 1046 89 45 92 0-200
FMSE05 8 530 265 25 40 1981 990 84 42 97 0-200
0 625 312 25 35 2335 1167 99 50 82 0-190
1 688 344 25 35 2570 1285 109 55 75 0-175
2 750 375 25 35 2803 1402 119 60 70 0-160
FMS08 8 627 314 25 40 2342 1171 100 50 115 0-210 41 27
9 702 351 25 40 2612 1306 112 56 105 0-185
0 780 390 25 40 2914 1457 124 62 95 0-170
1 857 429 25 40 3202 1601 136 68 85 0-155
2 934 467 25 35 3495 1748 148 74 78 0-140
FMSE08 0 1043 522 25 40 3896 1948 166 83 70 0-130
1 1146 573 25 35 4281 2140 182 91 64 0-110
2 1248 624 25 35 4662 2331 198 99 59 0-105
FMS10 8 752 376 25 35 2810 1405 120 120 117 0-168 46 30
0 936 468 25 35 3498 1749 149 149 94 0-135
1 1028 514 25 35 3842 1921 164 164 86 0-123
2 1120 560 25 35 4184 2092 178 178 79 0-113
FMS11 8 837 418.5 25 40 3127 1563 133 133 107 0-195 50 33
9 943 471.5 25 40 3522 1761 150 150 95 0-190
0 1048 524 25 40 3915 1957 167 167 86 0-185
1 1147 573.5 25 40 4285 2142 183 183 78 0-180
2 1259 629.5 25 35 4704 2352 200 200 72 0-170
FMSE11 9 1263 631.5 25 35 4718 2359 200 200 71 0-170
0 1404 702 25 35 5245 2622 223 223 65 0-155
1 1536 768 25 35 5738 2869 244 244 58 0-140
2 1687 843.5 25 35 6302 3156 268 268 53 0-130
Motor series Displacement options ml ml Mpa Mpa N.m N.m N.m/Mpa N.m/Mpa RPM RPM KW KW
FMS16 8 1254 627 25 35 4684 2342 200 100 99 0-124 65 43
9 1404 702 25 35 5224 2612 223 112 89 0-111
0 1560 780 25 35 5828 2914 248 124 80 0-100
1 1714 857 25 35 6404 3202 273 136 72 0-91
2 1868 934 25 35 6990 3495 297 149 67 0-83
FMS18 8 1395 698 25 40 5212 2606 222 111 90 0-155 70 47
9 1571 786 25 40 5870 2935 250 125 80 0-140
0 1747 874 25 40 6528 3264 278 139 72 0-125
1 1911 956 25 40 7139 3569 304 152 66 0-115
2 2099 1050 25 35 7841 3920 334 167 60 0-100
FMSE18 0 2340 1170 25 35 8744 4372 372 186 54 0-90
1 2560 1280 25 35 9564 4782 407 204 50 0-85
2 2812 1406 25 35 10506 5253 448 224 45 0-75
FMS22 8 1674 837 25 35 6254 3127 266 133 95 0-150 80 53
9 1886 943 25 35 7044 3522 300 150 84 0-133
0 2096 1048 25 35 7830 3915 334 167 76 0-120
1 2294 1147 25 35 8572 4286 365 183 69 0-109
2 2518 1259 25 35 9408 4704 400 200 63 0-100
FMS25 8 2004 1002 25 40 7487 3744 319 159 81 0-145 90 60
0 2498 1249 25 40 9334 4667 398 199 65 0-137
1 2752 1376 25 40 10283 5141 438 219 60 0-125
2 3006 1503 25 35 11233 5617 478 239 55 0-115
FMS35 7 2439 1220 25 40 9113 4556 384 194 81 0-140 110 73
9 3143 1572 25 40 11742 5871 500 250 63 0-140
0 3494 1747 25 40 13055 6528 556 278 56 0-130
2 4198 2099 25 35 15686 7843 668 334 48 0-110
FMS50 8 4008 2004 25 40 14977 7488 638 319 63 0-148 140 93
9 4498 2249 25 40 16807 8403 716 358 56 0-138
0 4996 2498 25 40 18667 9333 795 398 45 0-111
1 5504 2752 25 40 20565 10282 876 438 45 0-101
2 6012 3006 25 35 22459 11229 957 478 42 0-92
FMS83 8 6679 3340 25 40 24956 12478 1063 531 54 0-65 200 135
0 8323 4162 25 40 31098 15549 1325 662 44 0-52
2 10019 5010 25 35 37436 18718 1595 797 36 0-43
FMS125 8 10000 5000 25 40 37365 18682 1592 796 46 0-62 240 160
0 12500 6250 25 40 46706 23353 1989 995 37 0-50
2 15000 7500 25 35 56047 28024 2387 1194 31 0-42
