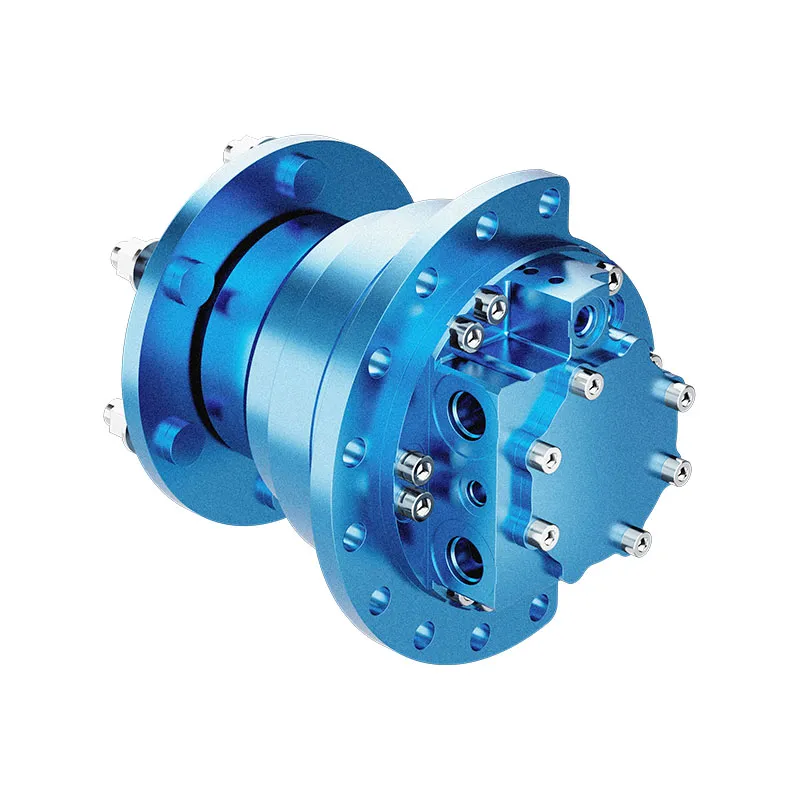

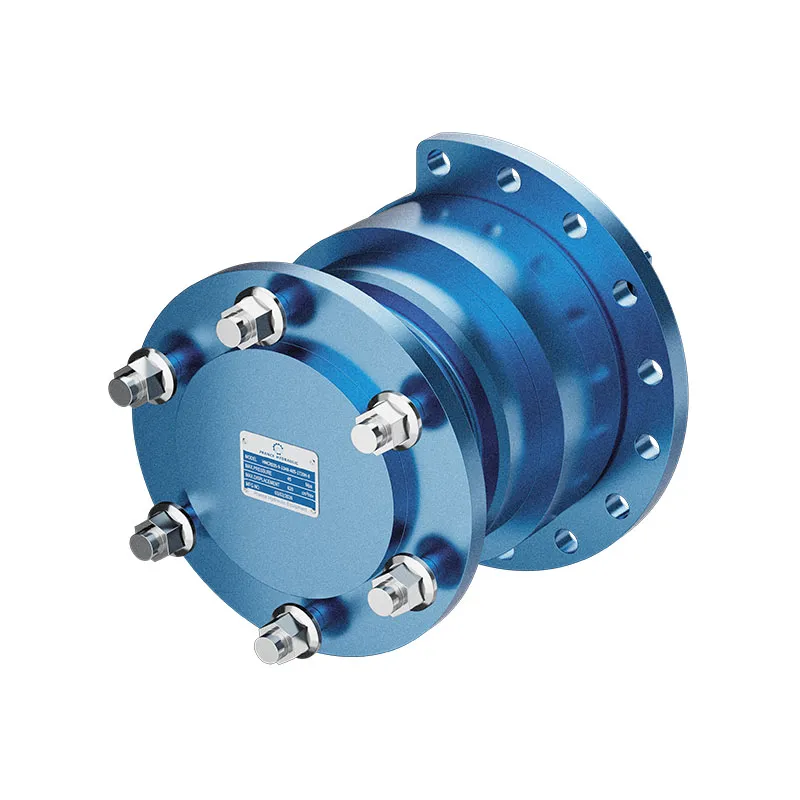

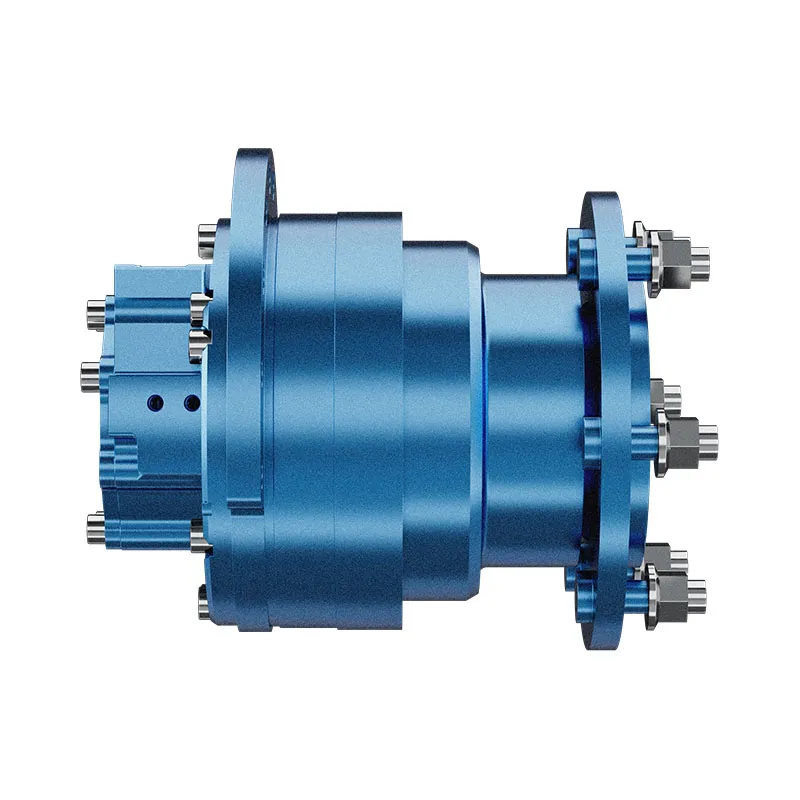

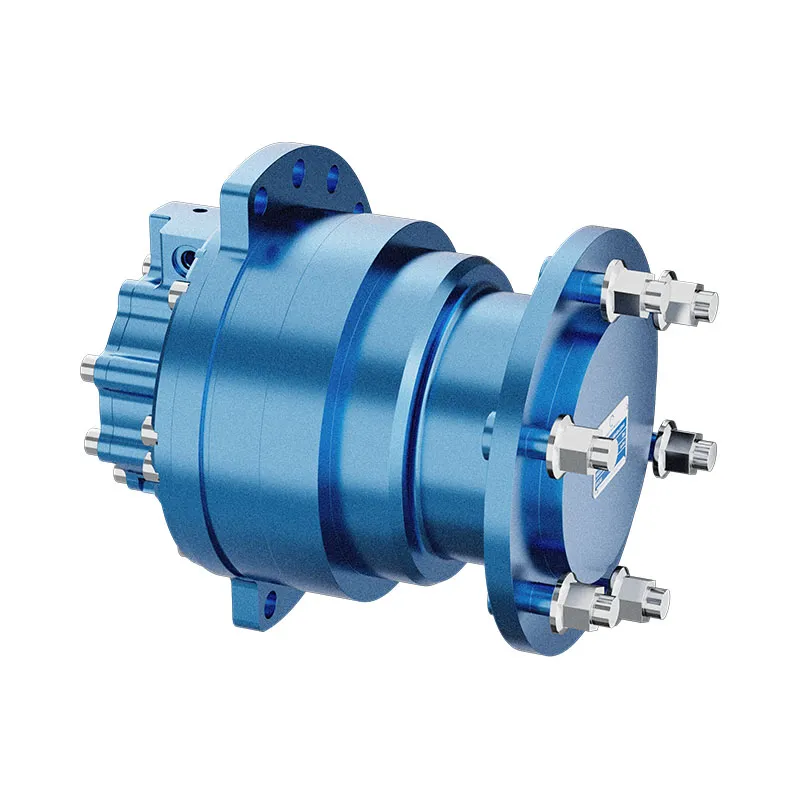

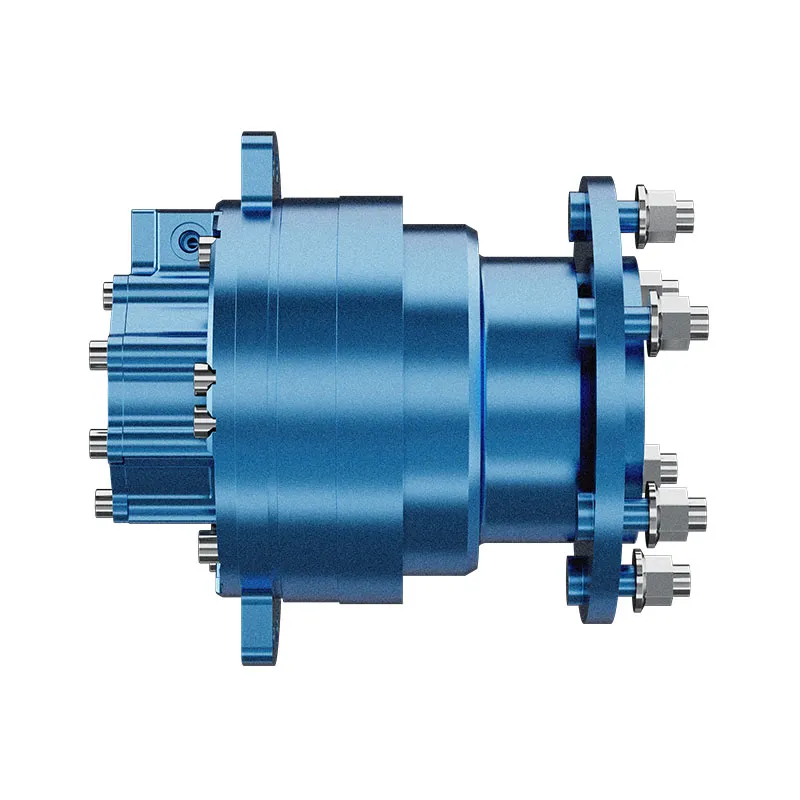

MCR Radial Piston Hydraulic Motor
The MCR radial piston motor is offered with switchable displacement and several mounting or brake arrangements. The technical data specifically describes MCR10 configurations; those figures must not be applied to every MCR frame.
- Radial piston construction
- Switchable displacement described in the table
- Flange or face mounting
- Brake options require separate confirmation
PRANCE HYDRAULIC · PRODUCT SERIES
Radial piston; switchable displacement variants · Confirm the selected motor and brake circuit
The MCR radial piston motor is offered with switchable displacement and several mounting or brake arrangements. The technical data specifically describes MCR10 configurations; those figures must not be applied to every MCR frame.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Radial piston construction
- Switchable displacement described in the table
- Flange or face mounting
- Brake options require separate confirmation
CATEGORIES: Piston Motor, Radial Piston Motor
MCR Features & Application
Radial piston construction
Specify the full MCR order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
Switchable displacement described in the table
Specify the displacement range or switching arrangement and verify performance at each required setting.
Flange or face mounting
Check pilot diameter, bolt pattern, shaft engagement or port pattern against the approved installation drawing.
Brake options require separate confirmation
Specify the full MCR order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
MCR Specifications
| Series / model | MCR |
|---|---|
| Product type | MCR Radial Piston Hydraulic Motor |
| Design | Radial piston; switchable displacement variants |
| Circuit / selection | Confirm the selected motor and brake circuit |
| Technical table scope | MCR10 configurations |
| Listed displacements | 780, 940, 1120, 1250 and 1340 cm³/rev |
| Displacement switching | Confirm the ordered configuration and switching conditions |
MCR Selection & Configuration
The MCR radial piston motor is offered with switchable displacement and several mounting or brake arrangements. The technical data specifically describes MCR10 configurations; those figures must not be applied to every MCR frame.
Specify full- and reduced-displacement duty separately and include required starting torque. If a brake is needed, distinguish a holding brake from a service brake and identify release pressure and control responsibility. A motor photograph cannot establish the brake option supplied.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the MCR nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

MCR Buying Guide
Use this sequence to prepare the MCR configuration for review and quotation.
- Define starting and continuous torque, speed range and duty cycle.
- Specify available flow, work-port pressure difference and return pressure.
- Confirm the displacement setting and required behavior during starting and stopping.
- Check shaft, mounting pilot, flange, port orientation and external loads.
- Review case drainage, replenishment and any displacement control.
- Specify fluid conditions and any independent braking requirement.
- Approve the complete model, operating envelope, drawing and quantity.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete MCR code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your MCR Application
Send the full model code, operating duty, installation details and quantity.
Request a MCR QuotationMCR Questions Before Ordering
What type of product is the MCR?
MCR Radial Piston Hydraulic Motor. Design: Radial piston; switchable displacement variants. Confirm the selected motor and brake circuit. Confirm the complete order code for the offered version.
Can a similar motor replace the MCR?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define starting and continuous torque, speed range and duty cycle. Specify available flow, work-port pressure difference and return pressure. Attach the nameplate, complete order code, installation drawing and required quantity.
MCR Technical Data & Documents
View MCR catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
(for applications outside these parameters please consult us)General
| Type | Radial piston motor | |||||||
| Description | Radia piston multi-disc motor, switchable displacement | |||||||
| Model description | MCR 10… | |||||||
| Type of mounting | Flange mounting; face mounting | |||||||
| Connections | Threaded or flanged | |||||||
| Mounting position | Optional | |||||||
| Shaft loading | See page 6 | |||||||
| Rotation | clockwise/anti-clockwise – reversible | |||||||
| Frame size | 10 | |||||||
| Size | 780 | 940 | 1120 | 1250 | 1340 | |||
| Displacement | V | cm3 | 780 | 940 | 1120 | 1250 | 1340 | |
| Flow n= 100 rpm/100 bar | qV | L/min | 79 | 95 | 113,5 | 126,5 | 136,5 | |
| Output torque 1;7) | 1240 | 1494 | 1783 | 1990 | 2130 | |||
| -specific torque (at Δp= 100 bar) | T | Nm | ||||||
| – peak torque | T | Nm | 5134 | 6187 | 6659 | 7432 | 8027 | |
| Output speed 1;7) | 5 to 10 for smooth running, depending on application | |||||||
| – min. speed | n | rpm | ||||||
| -max. speed | n | rpm | 170 | 150 | 150 | 140 | 120 | |
| – freewheeling speed | n | rpm | 400 | |||||
| Output power 1;7) | 44 | 44 | 50 | 50 | 50 | |||
| – continuous power | P | kW | ||||||
| Weight | -motor | m | kg | 69 | ||||
| – motor with holding brake | m | kg | 81 | |||||
| – motor with travel brake | m | kg | 92 | |||||
Hydraulic
| Nominal pressure | p | bar | 250 | ||
| Pressure differential, cont. 2;6;7;8) | Δp | bar | 250 | ||
| – for mineral oil (HL, HLP) | |||||
| Pressure differential, peak 3; 6;7;8) | Δp | bar | 450 | 400 | |
| -for mineral oil (HL, HLP) | |||||
| Inlet pressure6) Port “A” or “B” | p | bar | 470 | 420 | |
| Summated pressure 4; 6) Port “A” + “B” | p | bar | 470 | 420 | |
| Case drain pressure, max. | pmax | bar | 10 | ||
| Switching pressure (displacement switching) | bar | 10 to 30 | |||
| Hydraulic fluid 5) | Mineral oil(HL, HLP) to DIN 51 524 | ||||
| Hydraulic fluid temperature range | Θ | ℃ | -20 to 80 | ||
| Viscosity range | ν | mm2/s | 10 to 2000 | ||
| Fluid cleanliness: | Maximum permissible degree of contamination of fluid to NAS 1638 Class 9. We therefore recommend a filter with a minimum retention rate of β10 ≥75. | ||||
Brake
| Holding brake (disc brake) | |||
| Holding torque | T | Nm | 7000 |
| Release pressure | p | bar | min.15;max.30 |
| Travel brake (drum brake) | see table page 10 | ||
Technical data (mean values, measured at ν = 46 mm2/s and θ = 45℃)
Notes on technical data| T= Torque in Nm | qV = Inlet flow in L/min | qVL = Case drain flow in L/min |
| -All torques apply to run-in motors (see note p. 4, footnote 7) -For “half displacement” mode multiply torque- and qV-values by 0.5. -The torque values at half displacement do not apply to both directions of rotation but only to the preferred direction of rotation marked (see pp. 7-9) | ||
| Size | 780 | 1250 | |||||||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | 0 | 25 | 50 | 100 | 150 | |||
| Pressure differential Δp in bar | 100 | T | Nm | 806 | 994 | 1049 | 1029 | 911 | 1094 | 1818 | 1726 | 1517 | 1309 |
| qV | L/min | 0,3 | 19,8 | 39,47 | 79,00 | 118,2 | 1,00 | 32,09 | 63,73 | 126,69 | 189,30 | ||
| qVL | L/min | 0,15 | 0,15 | 0,24 | 0,50 | 0,60 | 0,50 | 0,56 | 0,63 | 0,76 | 0,90 | ||
| 200 | T | Nm | 1736 | 2232 | 2282 | 2232 | 2158 | 2586 | 3669 | 3684 | 3497 | ||
| qV | L/min | 0,60 | 20,10 | 39,80 | 79,50 | 118,8 | 2,86 | 33,03 | 64,63 | 127,82 | |||
| qVL | L/min | 0,30 | 0,30 | 0,40 | 0,75 | 0,9 | 1,43 | 1,44 | 1,45 | 1,46 | |||
| 300 | T | Nm | 2604 | 3348 | 3422 | 3348 | 4178 | 5550 | 5574 | ||||
| qV | L/min | 0,80 | 20,30 | 40,00 | 80,00 | 4,08 | 34,08 | 66,16 | |||||
| qVL | L/min | 0,40 | 0,40 | 0,50 | 1,00 | 2,04 | 2,10 | 2,16 | |||||
| 400 | T | Nm | 3472 | 4464 | 4563 | 5730 | 7432 | 7416 | |||||
| qV | L/min | 1,40 | 20,90 | 40,80 | 5,68 | 35,11 | 67,35 | ||||||
| qVL | L/min | 0,70 | 0,70 | 0,90 | 2,84 | 2,92 | 3,00 | ||||||
| 450 | T | Nm | 3906 | 5022 | 5134 | ||||||||
| qV | L/min | 1,6 | 21,10 | 41,00 | |||||||||
| qVL | L/min | 0,80 | 0,8 | 1,00 | |||||||||
| Size | 940 | 1340 | |||||||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | 0 | 25 | 50 | 100 | ||||
| Pressure differential Δp in bar | 100 | T | Nm | 971 | 1198 | 1264 | 1240 | 1098 | 1182 | 1964 | 1865 | 1639 | |
| qV | L/min | 1,00 | 23,80 | 47,47 | 95,00 | 142,20 | 1,00 | 34,61 | 68,78 | 136,76 | |||
| qVL | L/min | 0,15 | 0,15 | 0,24 | 0,50 | 0,60 | 0,50 | 0,56 | 0,63 | 0,76 | |||
| 200 | T | Nm | 2091 | 2690 | 2750 | 2689 | 2793 | 3962 | 3979 | 3777 | |||
| qV | L/min | 0,60 | 24,10 | 47,80 | 95,50 | 2,86 | 35,56 | 69,68 | 137,93 | ||||
| qVL | L/min | 0,30 | 0,30 | 0,40 | 0,75 | 1,43 | 1,44 | 1,45 | 1,46 | ||||
| 300 | T | Nm | 3137 | 4035 | 4124 | 4512 | 5994 | 6020 | |||||
| qV | L/min | 0,80 | 24,30 | 48,00 | 4,08 | 36,64 | 71,24 | ||||||
| qVL | L/min | 0,40 | 0,40 | 0,50 | 2,04 | 2,10 | 2,16 | ||||||
| 400 | T | Nm | 4183 | 5380 | 5500 | 6188 | 8027 | 8010 | |||||
| qV | L/min | 1,40 | 24,90 | 48,80 | 5,68 | 37,67 | 72,50 | ||||||
| qVL | L/min | 0,70 | 0,70 | 0,90 | 2,84 | 2,92 | 3,00 | ||||||
| 450 | T | Nm | 4706 | 6052 | 6187 | ||||||||
| qV | L/min | 1,60 | 25,10 | 49,00 | |||||||||
| qVL | L/min | 0,80 | 0,80 | 1,00 | |||||||||
| Size | 1120 | |||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | |||
| Pressure differential Δp in bar | 100 | T | Nm | 980 | 1629 | 1547 | 1360 | 1173 |
| qV | L/min | 1,00 | 28,82 | 57,19 | 113,62 | 169,80 | ||
| qVL | L/min | 0,50 | 0,56 | 0,63 | 0,76 | 0,90 | ||
| 200 | T | Nm | 2317 | 3287 | 3301 | 3134 | ||
| qV | L/min | 2,86 | 29,76 | 58,07 | 114,71 | |||
| qVL | L/min | 1,43 | 1,44 | 1,45 | 146 | |||
| 300 | T | Nm | 3743 | 4973 | 4994 | |||
| qV | L/min | 4,08 | 30,76 | 59,49 | ||||
| qVL | L/min | 2,04 | 2,10 | 2,16 | ||||
| 400 | T | Nm | 5134 | 6660 | 6645 | |||
| qV | L/min | 5,68 | 31,76 | 60,87 | ||||
| qVL | L/min | 2,84 | 2,92 | 3,00 | ||||
Related Selection Resources
Request a MCR Quotation
Tell us your required configuration, quantity and application.
Technical data
(for applications outside these parameters please consult us)
General
| Type | Radial piston motor | |||||||
| Description | Radia piston multi-disc motor, switchable displacement | |||||||
| Model description | MCR 10... | |||||||
| Type of mounting | Flange mounting; face mounting | |||||||
| Connections | Threaded or flanged | |||||||
| Mounting position | Optional | |||||||
| Shaft loading | See page 6 | |||||||
| Rotation | clockwise/anti-clockwise - reversible | |||||||
| Frame size | 10 | |||||||
| Size | 780 | 940 | 1120 | 1250 | 1340 | |||
| Displacement | V | cm3 | 780 | 940 | 1120 | 1250 | 1340 | |
| Flow n= 100 rpm/100 bar | qV | L/min | 79 | 95 | 113,5 | 126,5 | 136,5 | |
| Output torque 1;7) | 1240 | 1494 | 1783 | 1990 | 2130 | |||
| -specific torque (at Δp= 100 bar) |
T | Nm | ||||||
| - peak torque | T | Nm | 5134 | 6187 | 6659 | 7432 | 8027 | |
| Output speed 1;7) | 5 to 10 for smooth running, depending on application | |||||||
| - min. speed | n | rpm | ||||||
| -max. speed | n | rpm | 170 | 150 | 150 | 140 | 120 | |
| - freewheeling speed | n | rpm | 400 | |||||
| Output power 1;7) | 44 | 44 | 50 | 50 | 50 | |||
| - continuous power | P | kW | ||||||
| Weight | -motor | m | kg | 69 | ||||
| - motor with holding brake | m | kg | 81 | |||||
| - motor with travel brake | m | kg | 92 | |||||
Hydraulic
| Nominal pressure | p | bar | 250 | ||
| Pressure differential, cont. 2;6;7;8) | Δp | bar | 250 | ||
| - for mineral oil (HL, HLP) | |||||
| Pressure differential, peak 3; 6;7;8) | Δp | bar | 450 | 400 | |
| -for mineral oil (HL, HLP) | |||||
| Inlet pressure6) Port "A" or "B" | p | bar | 470 | 420 | |
| Summated pressure 4; 6) Port "A" + "B" | p | bar | 470 | 420 | |
| Case drain pressure, max. | pmax | bar | 10 | ||
| Switching pressure (displacement switching) | bar | 10 to 30 | |||
| Hydraulic fluid 5) | Mineral oil(HL, HLP) to DIN 51 524 | ||||
| Hydraulic fluid temperature range | Θ | ℃ | -20 to 80 | ||
| Viscosity range | ν | mm2/s | 10 to 2000 | ||
| Fluid cleanliness: | Maximum permissible degree of contamination of fluid to NAS 1638 Class 9. We therefore recommend a filter with a minimum retention rate of β10 ≥75. | ||||
Brake
| Holding brake (disc brake) | |||
| Holding torque | T | Nm | 7000 |
| Release pressure | p | bar | min.15;max.30 |
| Travel brake (drum brake) | see table page 10 | ||
1)The values given apply after 100 hours run-in time
2) Continuous operation
3) Peak values may occur for a maximum duration of one second only within an operating minute
4) We recommend Pmin = 15 bar in the return line
5) Environmentally-friendly fluids HETG, HEPG, HEES to RE 90 221
6) When operating motors in series please consult our technical office
7)⚠ Warning: When running the motor in (min. 20 hours) note that :motor should not be run unloaded at more than 50 % maximum speed.
8)For single shaft end "L60" max. permissible pressure differential Δp = 250 bar
Technical data (mean values, measured at ν = 46 mm2/s and θ = 45℃)
Notes on technical data
| T= Torque in Nm | qV = Inlet flow in L/min | qVL = Case drain flow in L/min |
| -All torques apply to run-in motors (see note p. 4, footnote 7) -For "half displacement" mode multiply torque- and qV-values by 0.5. -The torque values at half displacement do not apply to both directions of rotation but only to the preferred direction of rotation marked (see pp. 7-9) |
||
| Size | 780 | 1250 | |||||||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | 0 | 25 | 50 | 100 | 150 | |||
| Pressure differential Δp in bar | 100 | T | Nm | 806 | 994 | 1049 | 1029 | 911 | 1094 | 1818 | 1726 | 1517 | 1309 |
| qV | L/min | 0,3 | 19,8 | 39,47 | 79,00 | 118,2 | 1,00 | 32,09 | 63,73 | 126,69 | 189,30 | ||
| qVL | L/min | 0,15 | 0,15 | 0,24 | 0,50 | 0,60 | 0,50 | 0,56 | 0,63 | 0,76 | 0,90 | ||
| 200 | T | Nm | 1736 | 2232 | 2282 | 2232 | 2158 | 2586 | 3669 | 3684 | 3497 | ||
| qV | L/min | 0,60 | 20,10 | 39,80 | 79,50 | 118,8 | 2,86 | 33,03 | 64,63 | 127,82 | |||
| qVL | L/min | 0,30 | 0,30 | 0,40 | 0,75 | 0,9 | 1,43 | 1,44 | 1,45 | 1,46 | |||
| 300 | T | Nm | 2604 | 3348 | 3422 | 3348 | 4178 | 5550 | 5574 | ||||
| qV | L/min | 0,80 | 20,30 | 40,00 | 80,00 | 4,08 | 34,08 | 66,16 | |||||
| qVL | L/min | 0,40 | 0,40 | 0,50 | 1,00 | 2,04 | 2,10 | 2,16 | |||||
| 400 | T | Nm | 3472 | 4464 | 4563 | 5730 | 7432 | 7416 | |||||
| qV | L/min | 1,40 | 20,90 | 40,80 | 5,68 | 35,11 | 67,35 | ||||||
| qVL | L/min | 0,70 | 0,70 | 0,90 | 2,84 | 2,92 | 3,00 | ||||||
| 450 | T | Nm | 3906 | 5022 | 5134 | ||||||||
| qV | L/min | 1,6 | 21,10 | 41,00 | |||||||||
| qVL | L/min | 0,80 | 0,8 | 1,00 | |||||||||
| Size | 940 | 1340 | |||||||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | 0 | 25 | 50 | 100 | ||||
| Pressure differential Δp in bar | 100 | T | Nm | 971 | 1198 | 1264 | 1240 | 1098 | 1182 | 1964 | 1865 | 1639 | |
| qV | L/min | 1,00 | 23,80 | 47,47 | 95,00 | 142,20 | 1,00 | 34,61 | 68,78 | 136,76 | |||
| qVL | L/min | 0,15 | 0,15 | 0,24 | 0,50 | 0,60 | 0,50 | 0,56 | 0,63 | 0,76 | |||
| 200 | T | Nm | 2091 | 2690 | 2750 | 2689 | 2793 | 3962 | 3979 | 3777 | |||
| qV | L/min | 0,60 | 24,10 | 47,80 | 95,50 | 2,86 | 35,56 | 69,68 | 137,93 | ||||
| qVL | L/min | 0,30 | 0,30 | 0,40 | 0,75 | 1,43 | 1,44 | 1,45 | 1,46 | ||||
| 300 | T | Nm | 3137 | 4035 | 4124 | 4512 | 5994 | 6020 | |||||
| qV | L/min | 0,80 | 24,30 | 48,00 | 4,08 | 36,64 | 71,24 | ||||||
| qVL | L/min | 0,40 | 0,40 | 0,50 | 2,04 | 2,10 | 2,16 | ||||||
| 400 | T | Nm | 4183 | 5380 | 5500 | 6188 | 8027 | 8010 | |||||
| qV | L/min | 1,40 | 24,90 | 48,80 | 5,68 | 37,67 | 72,50 | ||||||
| qVL | L/min | 0,70 | 0,70 | 0,90 | 2,84 | 2,92 | 3,00 | ||||||
| 450 | T | Nm | 4706 | 6052 | 6187 | ||||||||
| qV | L/min | 1,60 | 25,10 | 49,00 | |||||||||
| qVL | L/min | 0,80 | 0,80 | 1,00 | |||||||||
| Size | 1120 | |||||||
| Speed n in rpm | 0 | 25 | 50 | 100 | 150 | |||
| Pressure differential Δp in bar | 100 | T | Nm | 980 | 1629 | 1547 | 1360 | 1173 |
| qV | L/min | 1,00 | 28,82 | 57,19 | 113,62 | 169,80 | ||
| qVL | L/min | 0,50 | 0,56 | 0,63 | 0,76 | 0,90 | ||
| 200 | T | Nm | 2317 | 3287 | 3301 | 3134 | ||
| qV | L/min | 2,86 | 29,76 | 58,07 | 114,71 | |||
| qVL | L/min | 1,43 | 1,44 | 1,45 | 146 | |||
| 300 | T | Nm | 3743 | 4973 | 4994 | |||
| qV | L/min | 4,08 | 30,76 | 59,49 | ||||
| qVL | L/min | 2,04 | 2,10 | 2,16 | ||||
| 400 | T | Nm | 5134 | 6660 | 6645 | |||
| qV | L/min | 5,68 | 31,76 | 60,87 | ||||
| qVL | L/min | 2,84 | 2,92 | 3,00 | ||||
