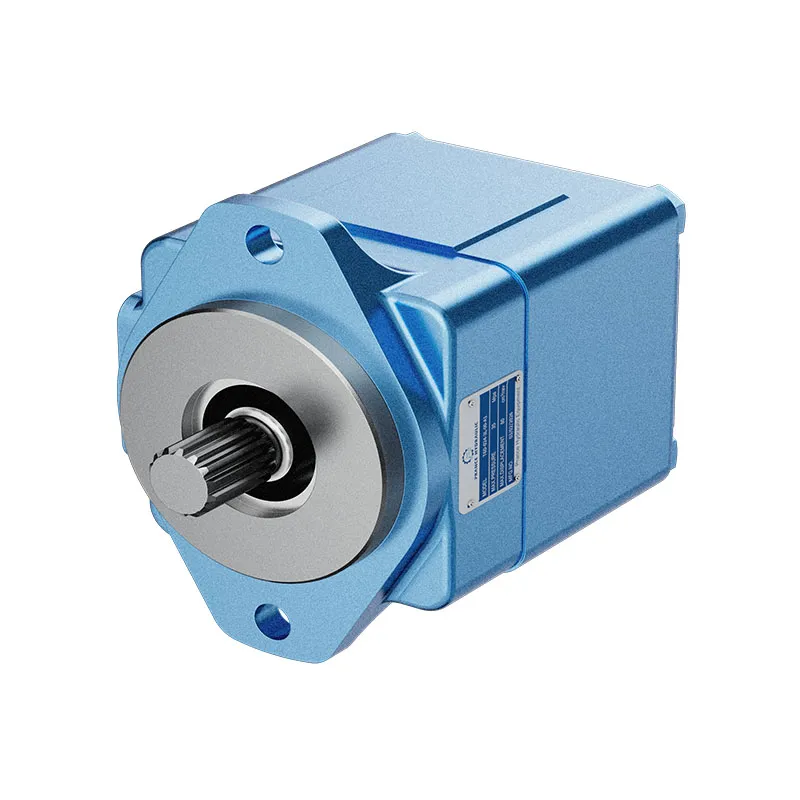

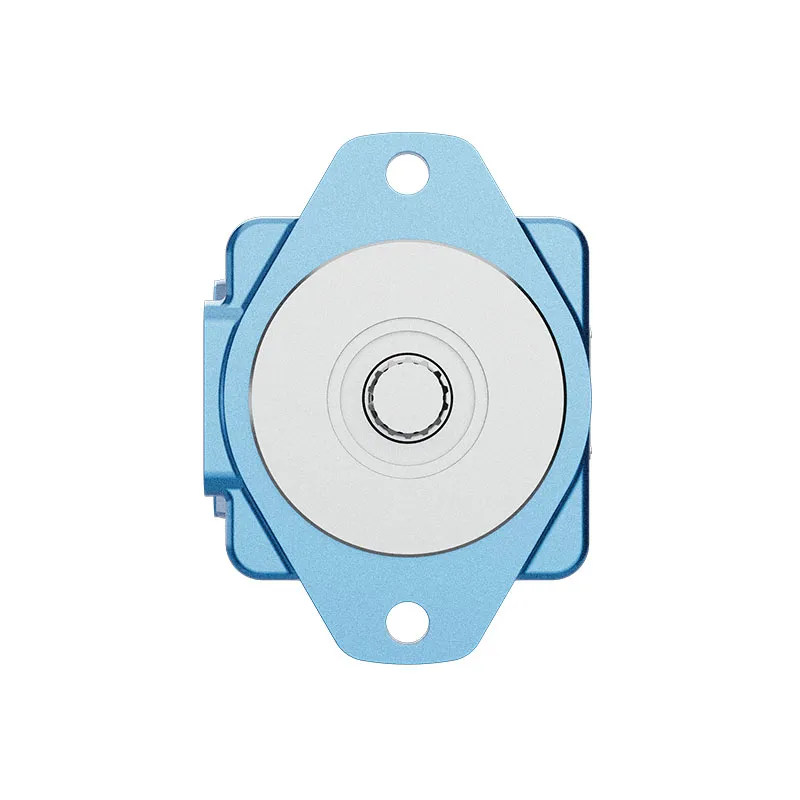

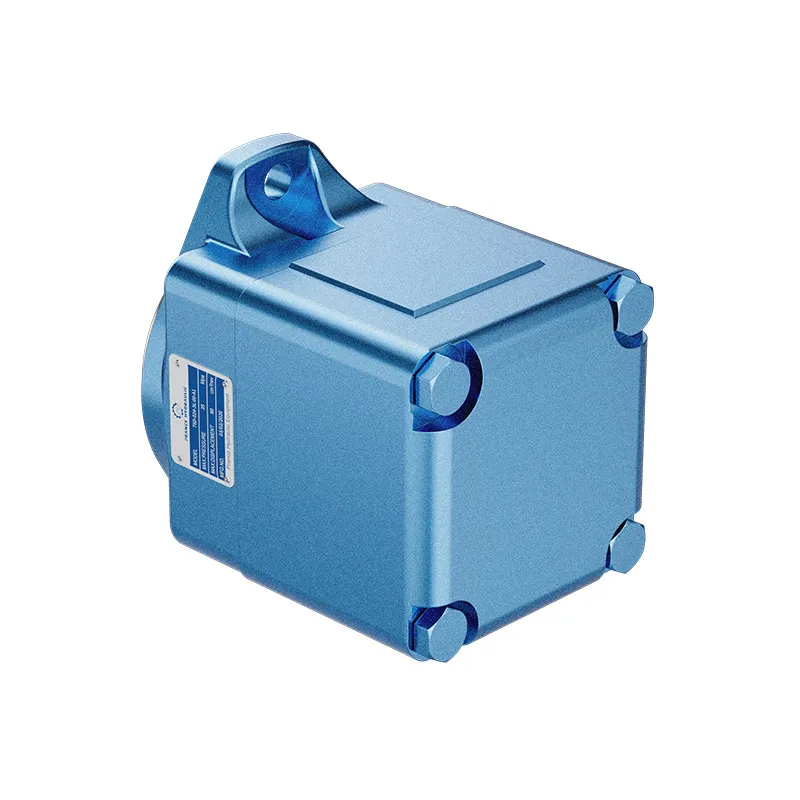

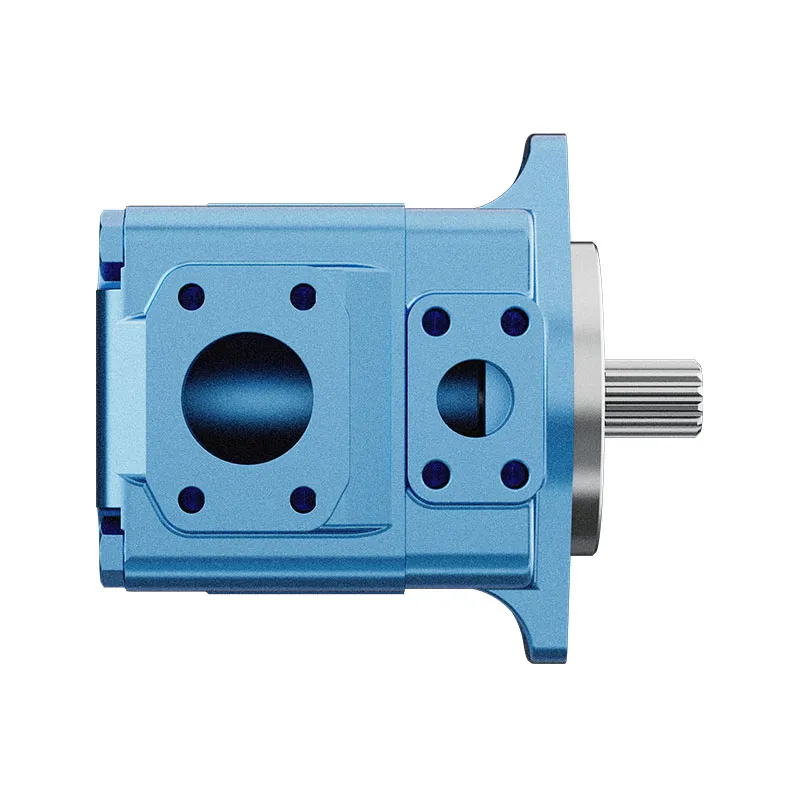

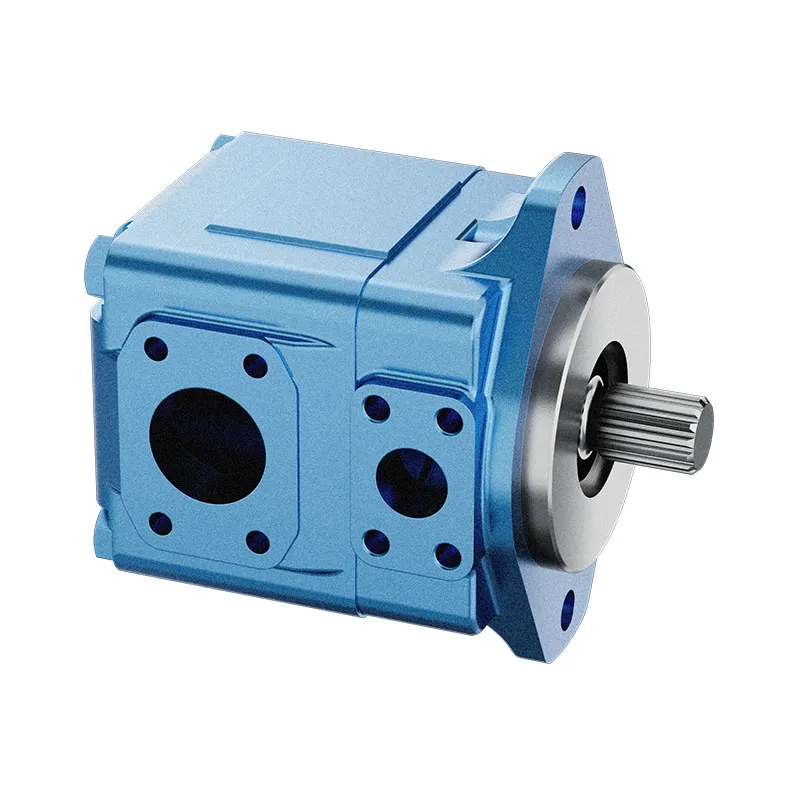

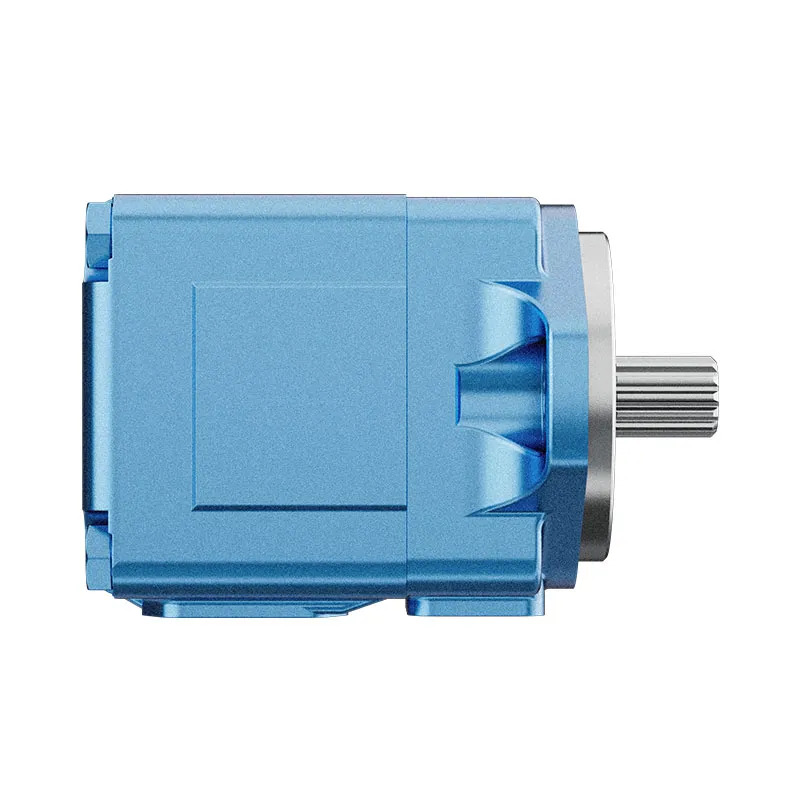

T6 Fixed Displacement Vane Pump
The T6 fixed displacement vane pump is offered with a dowel-pin vane structure. Selection uses the actual geometric displacement and operating speed; a flow code expressed in US gpm is not itself a displacement in mL per revolution.
- Fixed displacement vane pump
- Dowel-pin vane structure
- Flow codes and geometric displacement distinguished
- Pressure rating depends on fluid and model
PRANCE HYDRAULIC · PRODUCT SERIES
Vane; fixed displacement · Confirm the selected hydraulic circuit
The T6 fixed displacement vane pump is offered with a dowel-pin vane structure. Selection uses the actual geometric displacement and operating speed; a flow code expressed in US gpm is not itself a displacement in mL per revolution.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Fixed displacement vane pump
- Dowel-pin vane structure
- Flow codes and geometric displacement distinguished
- Pressure rating depends on fluid and model
CATEGORIES: Fixed Displacement Vane Pump, Vane Pump
T6 Features & Application
Fixed displacement vane pump
For a fixed displacement, flow and speed remain linked by the selected displacement. Check the actual operating point and efficiency.
Dowel-pin vane structure
Specify the full T6 order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
Flow codes and geometric displacement distinguished
Compare the required flow at the actual drive speed and pressure. Check the selected variant rather than combining maxima from different rows.
Pressure rating depends on fluid and model
Confirm the actual fluid and temperature range. Seal and fluid compatibility must be checked for the supplied version.
T6 Specifications
| Series / model | T6 |
|---|---|
| Product type | T6 Fixed Displacement Vane Pump |
| Design | Vane; fixed displacement |
| Circuit / selection | Confirm the selected hydraulic circuit |
| Displacement control | Fixed |
| Catalog selection | Series, flow code, geometric displacement and fluid-specific pressure column |
T6 Selection & Configuration
The T6 fixed displacement vane pump is offered with a dowel-pin vane structure. Selection uses the actual geometric displacement and operating speed; a flow code expressed in US gpm is not itself a displacement in mL per revolution.
Use the table row for the selected series, flow code and hydraulic fluid. Confirm direction of rotation, shaft, mounting and port orientation, particularly on multiple-section pumps. Cold-start viscosity and inlet conditions require the selected pump instructions.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the T6 nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

T6 Buying Guide
Use this sequence to prepare the T6 configuration for review and quotation.
- Define required flow at the actual drive speed and continuous pressure.
- Identify peak pressure, duration and the work cycle.
- Confirm the selected displacement control and any auxiliary-drive requirement.
- Match rotation viewed from the shaft end, shaft, flange and ports.
- Review inlet conditions, drain routing and the installation envelope.
- Confirm fluid, viscosity, temperature, filtration and seals.
- Approve the complete model, control, drawing, quantity and delivery terms.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete T6 code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your T6 Application
Send the full model code, operating duty, installation details and quantity.
Request a T6 QuotationT6 Questions Before Ordering
What type of product is the T6?
T6 Fixed Displacement Vane Pump. Design: Vane; fixed displacement. Confirm the selected hydraulic circuit. Confirm the complete order code for the offered version.
Can a similar pump replace the T6?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.
T6 Technical Data & Documents
View T6 catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical Date
| series | Flow code (USgpm) | Geometric displace- ment mL/r | Max. pressure Mpa | Max.speed r/min | Min.speed r/min | ||||||
| Antiwear hydraulic oil | General hydraulic oil or photosphate eater fluid | Water glycol fluid or water-oil emulsions | General hydraulic oil or antiwear hydraulic oil | Water glycol fluid or phosphate eater fluid or watere mulsions | |||||||
| Instant | Continuous | Instant | Continuous | Instant | Continuous | ||||||
| T6C | 03 | 10.8 | 28 | 24.5 | 21 | 17.5 | 17.5 | 14 | 2800 | 1800 | 600 |
| 05 | 17.2 | ||||||||||
| 06 | 21.3 | ||||||||||
| 08 | 26.4 | ||||||||||
| 10 | 34.1 | ||||||||||
| 12 | 37.1 | ||||||||||
| 14 | 46.0 | ||||||||||
| 17 | 58.3 | ||||||||||
| 20 | 63.8 | ||||||||||
| 22 | 70.3 | ||||||||||
| 25 | 79.3 | 2500 | |||||||||
| 28 | 88.8 | 21 | 16 | 16 | |||||||
| 31 | 100.0 | ||||||||||
| T6D | 14 | 47.6 | 24.5 | 21 | 21 | 17.5 | 17.5 | 14 | 2500 | 1800 | 600 |
| 17 | 58.2 | ||||||||||
| 20 | 66.0 | ||||||||||
| 24 | 79.5 | ||||||||||
| 28 | 89.7 | ||||||||||
| 31 | 98.3 | ||||||||||
| 35 | 111.0 | ||||||||||
| 38 | 120.3 | ||||||||||
| 42 | 136.0 | 2200 | |||||||||
| 45 | 145.7 | ||||||||||
| 50 | 158.0 | 21 | 16 | 16 | |||||||
| T6E | 42 | 132.3 | 24.5 | 21 | 21 | 17.5 | 17.5 | 14 | 2200 | 1800 | 600 |
| 45 | 142.4 | ||||||||||
| 50 | 158.5 | ||||||||||
| 52 | 164.8 | ||||||||||
| 57 | 179.8 | ||||||||||
| 62 | 196.7 | ||||||||||
| 66 | 213.3 | ||||||||||
| 72 | 227.1 | ||||||||||
| 85 | 269.0 | 9 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 2000 | |||
