A2FE Fixed Displacement Bent Axis Motor

The A2FE is a fixed displacement bent-axis hydraulic motor. Its installation arrangement must be reviewed from the A2FE drawing; a related A2FM description does not establish that its housing and mounting interface are interchangeable.

  • Fixed displacement axial piston motor
  • Bent-axis construction
  • Installation interface must match the A2FE drawing
  • Output depends on flow and pressure difference
HOME › Hydraulic Motors › A2FE

PRANCE HYDRAULIC · PRODUCT SERIES

A2FE Fixed Displacement Bent Axis Motor

Axial piston; bent axis, fixed displacement · Open and closed circuits, subject to configuration

The A2FE is a fixed displacement bent-axis hydraulic motor. Its installation arrangement must be reviewed from the A2FE drawing; a related A2FM description does not establish that its housing and mounting interface are interchangeable.

Model

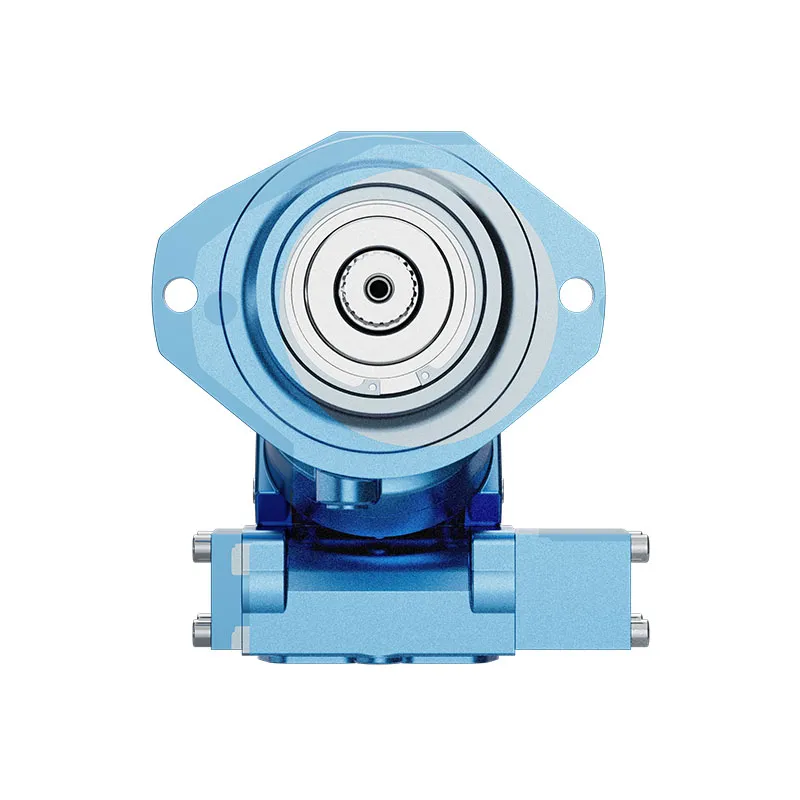

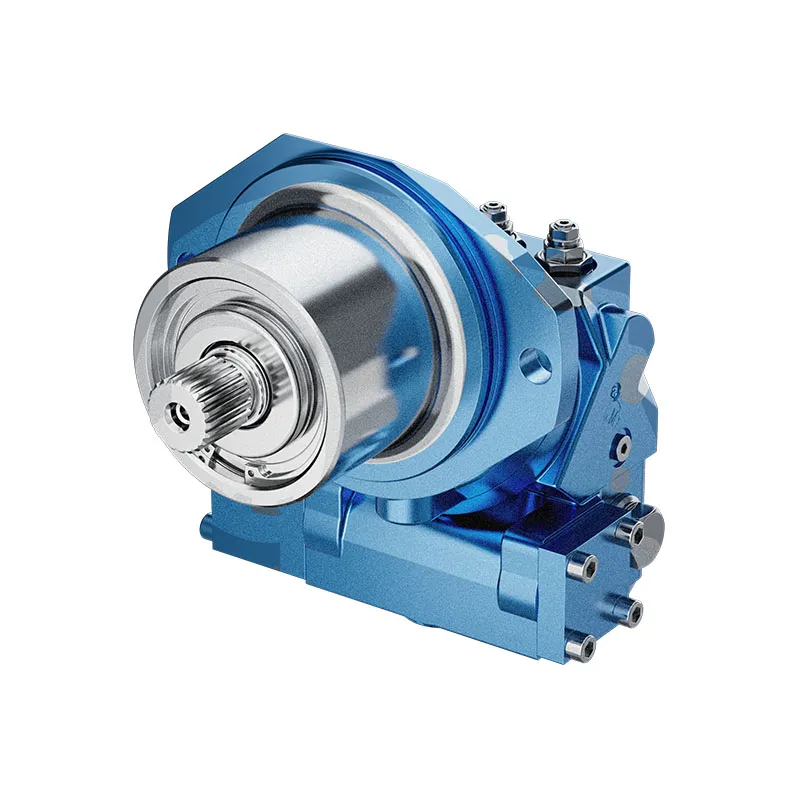

✓A2FE original product photograph
A2FEAxial piston; bent axis, fixed displacement
Request a QuotationView Technical Data & Datasheet

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.

Configuration review · Technical documentation · Product selection

Product Details

  • Fixed displacement axial piston motor
  • Bent-axis construction
  • Installation interface must match the A2FE drawing
  • Output depends on flow and pressure difference

CATEGORIES: Fixed Displacement Motor, Piston Motor

A2FE Features & Application

Fixed displacement axial piston motor

For a fixed displacement, flow and speed remain linked by the selected displacement. Check the actual operating point and efficiency.

Bent-axis construction

Specify the full A2FE order code, installation drawing and operating duty so the quotation can identify the proposed configuration.

Installation interface must match the A2FE drawing

Check pilot diameter, bolt pattern, shaft engagement or port pattern against the approved installation drawing.

Output depends on flow and pressure difference

Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.

A2FE Specifications

Series / modelA2FE
Product typeA2FE Fixed Displacement Bent Axis Motor
DesignAxial piston; bent axis, fixed displacement
Circuit / selectionOpen and closed circuits, subject to configuration
Displacement controlFixed
Technical documentA2FE series document; check the complete configuration

A2FE Selection & Configuration

The A2FE is a fixed displacement bent-axis hydraulic motor. Its installation arrangement must be reviewed from the A2FE drawing; a related A2FM description does not establish that its housing and mounting interface are interchangeable.

Start a replacement enquiry with the A2FE nameplate and a drawing of the gearbox or mounting location. Check shaft engagement, housing clearance, port access and the drain route. Apply pressure and speed limits to the exact size and series rather than the family as a whole.

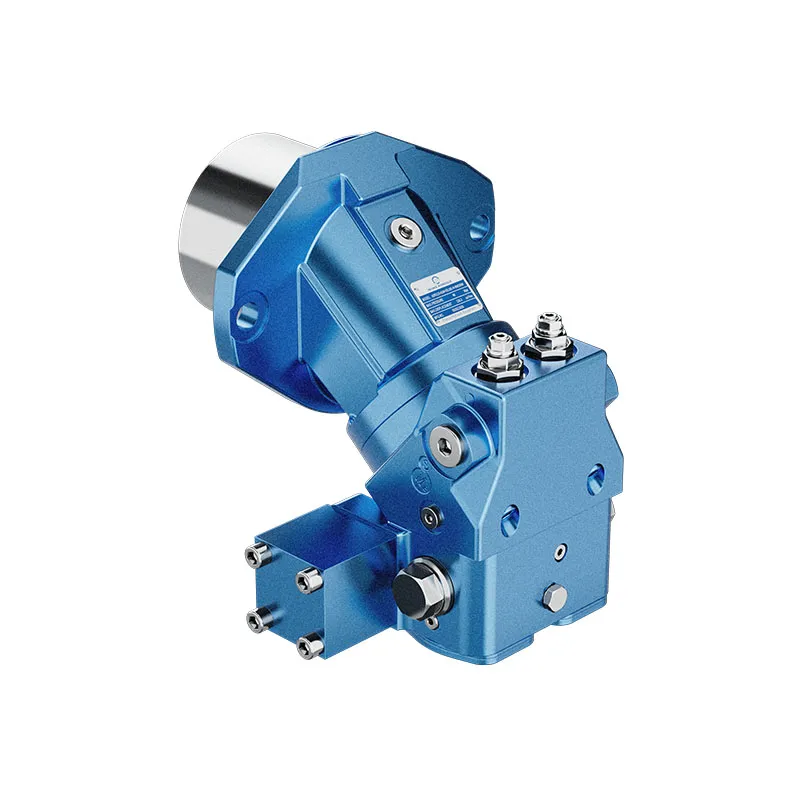

A2FE original product view

Your Application.
The Right Configuration.

Hydraulic pumps · Hydraulic motors · Hydraulic valves

Send the A2FE nameplate, operating requirements and installation drawing for a configuration review before quoting.

  • Model review — send the full model code or an existing nameplate photograph.
  • Interface matching — confirm shaft, mounting flange, rotation and ports.
  • Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
  • Documentation — request the relevant product data and drawings for your review.
Prance workshop with a row of production equipment

A2FE Buying Guide

Use this sequence to prepare the A2FE configuration for review and quotation.

  1. Define starting and continuous torque, speed range and duty cycle.
  2. Specify available flow, work-port pressure difference and return pressure.
  3. Confirm the displacement setting and required behavior during starting and stopping.
  4. Check shaft, mounting pilot, flange, port orientation and external loads.
  5. Review case drainage, replenishment and any displacement control.
  6. Specify fluid conditions and any independent braking requirement.
  7. Approve the complete model, operating envelope, drawing and quantity.

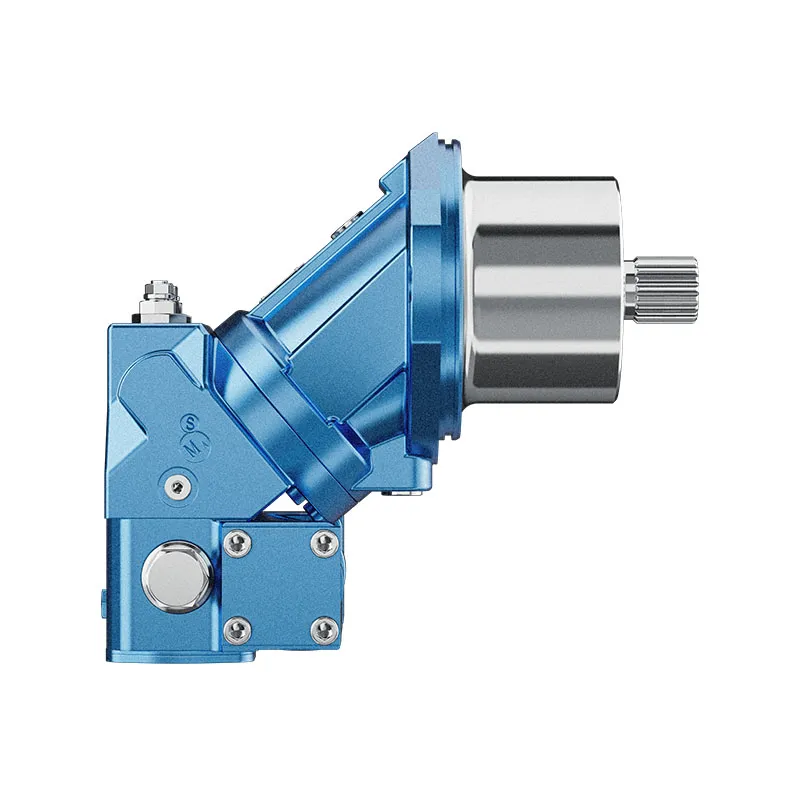

A2FE original product photograph for installation review

Selection, Documentation & Project Support

Prance technical team image from its company website

Selection Support

Learn more →

Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.


Flow · Pressure · Speed · Interfaces
Prance quality standards image from its company website

Technical Resources

Learn more →

Review product documentation, model codes and technical data before finalizing the specification.


Datasheets · Model codes · Drawings
Prance sales team image from its company website

Project Inquiries

Learn more →

Send your required model, quantity, application and project requirements to discuss your inquiry.


Product inquiries · Configuration review

Configuration, Quantity & Delivery

Confirm the complete A2FE code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.

Discuss Your A2FE Application

Send the full model code, operating duty, installation details and quantity.

Request a A2FE Quotation

A2FE Questions Before Ordering

What type of product is the A2FE?

A2FE Fixed Displacement Bent Axis Motor. Design: Axial piston; bent axis, fixed displacement. Open and closed circuits, subject to configuration. Confirm the complete order code for the offered version.

Can a similar motor replace the A2FE?

Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.

Which data is needed for a quotation?

Define starting and continuous torque, speed range and duty cycle. Specify available flow, work-port pressure difference and return pressure. Attach the nameplate, complete order code, installation drawing and required quantity.

A2FE Technical Data & Documents

View A2FE catalog data and operating conditions

Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.

Technical Data

Pressure at port A or B Nominal pressure——–Pn = 35MPa Peak pressure———Pmax = 40MPa The sum of the pressure at port A or B must not exceed 710MPa (Individual pressure on either.side max, 40MPa) Maximun pernissible case pressure Pca———–0.2MPa tmin———— -25℃ tmax———— +80℃

Viscosity Range

Vmin (for short periods)——— 10mm2/s Vmax (for short periods)——— 1000mm2/s Optimun Operating viscosity Vopt——— 16-36mm2/s Fluid Recommendations
Operatingtemperature range DIN51519 or ISO(VG) Recommendations viscosity class to DIN51519ISO(VG)
30-40℃ VG22 22mm2/s at 40°C
40-50℃ VG35 32mm2/s at 40°C
50-60℃ VG46 46mm2/s at 40°C
60-70℃ VG68 68mm2/s at 40°C
70-80℃ VG100 100mm2/s at 40°C

Filtration of Fluid

Recommended filtration:10um,Coarser filtration of 25-40um,is possible,but with filtration of10um.longer service life life is obtained (reduce wearing).

Speed Range

No limitation on minimum Speed nmin,if high uniformity of rotation is required, nmin should not be lower than 50 rpm.See table for maximum Speed nmax.

Mounting Position

Optional.The housing must always be filled with oil.

Calculation of size

Motor
Flow Q=(Vg∙n)/(1000∙ηv) (L/min)
Torque M=(1.59Vg∙Δp∙ηmb) (Nm)
Power P=Mn/9549=(Q∙Δp∙ηt)/60 (KW)
Speed n=(1000∙Q∙ηv)/Vg (r/min)
Vg:geom.displacement(ml/r)
Δp:Pressure differential(MPa)
n:Speed
ηv:volumetric efficiency
nmp:mech.hydr.efficiency
ηt:Overall efficiency
[ηtηy∙ηmh]
Technical Data (theoretical Values, without considering ηv∙ ηmh ∙Values rounded off)
Size 55 80 107 125 160
Displaement Vg ml/r 54.8 80 107 126.3 160
Max.Speed nmax r/min 3750 3350 3000 3000 2650
Max.flow Qmax L/min 206 268 321 379 424
Torque constants MK Nm/MPa 8.71 12.74 16.97 20.1 25.40
Max.Torque Δp=35MPa M Nm 305 446 594 703.5 889
Max. Power Δp=35MPa P KW 120 156 187 221 247
Moment of inertia about drive shaft J Kgm2 0.0052 0.0109 0.0167 0.0322 0.0532
Weight (approx) Kg
Watch A2FE Product Video
A2FE product video

Request a A2FE Quotation

Tell us your required configuration, quantity and application.

Contact Form Demo

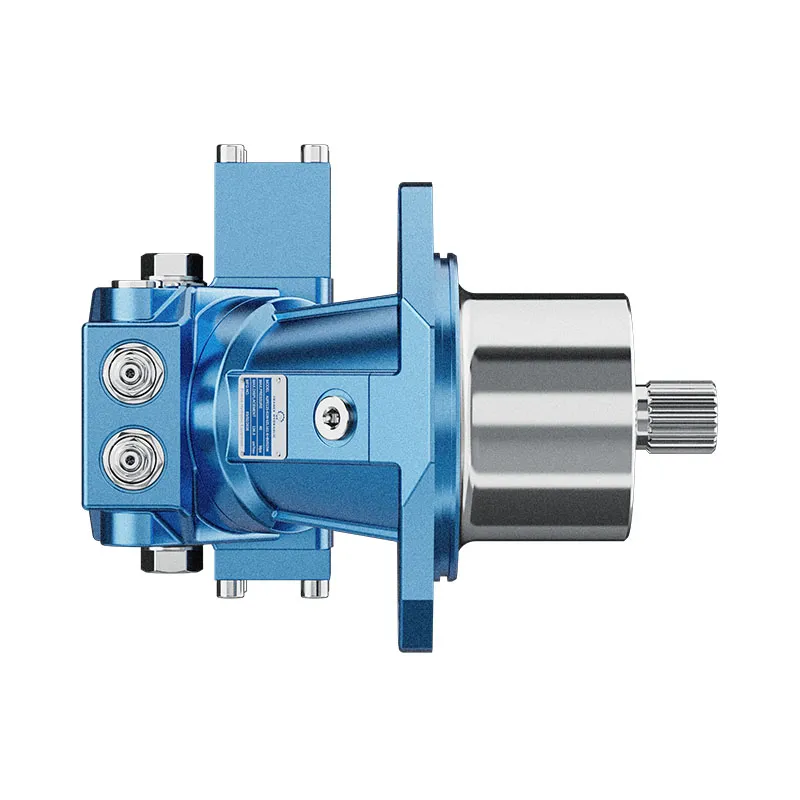

A2FE original product photograph

Technical Data

Pressure at port A or B

Nominal pressure--------Pn = 35MPa

Peak pressure---------Pmax = 40MPa

The sum of the pressure at port A or B must not exceed 710MPa

(Individual pressure on either.side max, 40MPa)

Maximun pernissible case pressure

Pca-----------0.2MPa

tmin------------ -25℃

tmax------------ +80℃

Viscosity Range

Vmin (for short periods)--------- 10mm2/s

Vmax (for short periods)--------- 1000mm2/s

Optimun Operating

viscosity

Vopt--------- 16-36mm2/s

Fluid Recommendations

Operatingtemperature range DIN51519 or ISO(VG) Recommendations viscosity class to DIN51519ISO(VG)
30-40℃ VG22 22mm2/s at 40°C
40-50℃ VG35 32mm2/s at 40°C
50-60℃ VG46 46mm2/s at 40°C
60-70℃ VG68 68mm2/s at 40°C
70-80℃ VG100 100mm2/s at 40°C

Filtration of Fluid

Recommended filtration:10um,Coarser filtration of 25-40um,is possible,but with filtration of10um.longer service life life is obtained (reduce wearing).

Speed Range

No limitation on minimum Speed nmin,if high uniformity of rotation is required, nmin should not be lower than 50 rpm.See table for maximum Speed nmax.

Mounting Position

Optional.The housing must always be filled with oil.

Calculation of size

Motor
Flow Q=(Vg∙n)/(1000∙ηv) (L/min)
Torque M=(1.59Vg∙Δp∙ηmb) (Nm)
Power P=Mn/9549=(Q∙Δp∙ηt)/60 (KW)
Speed n=(1000∙Q∙ηv)/Vg (r/min)
Vg:geom.displacement(ml/r)
Δp:Pressure differential(MPa)
n:Speed
ηv:volumetric efficiency
nmp:mech.hydr.efficiency
ηt:Overall efficiency
[ηtηy∙ηmh]
Technical Data (theoretical Values, without considering ηv∙
ηmh ∙Values rounded off)
Size 55 80 107 125 160
Displaement Vg ml/r 54.8 80 107 126.3 160
Max.Speed nmax r/min 3750 3350 3000 3000 2650
Max.flow Qmax L/min 206 268 321 379 424
Torque constants MK Nm/MPa 8.71 12.74 16.97 20.1 25.40
Max.Torque
Δp=35MPa
M Nm 305 446 594 703.5 889
Max. Power
Δp=35MPa
P KW 120 156 187 221 247
Moment of inertia
about drive shaft
J Kgm2 0.0052 0.0109 0.0167 0.0322 0.0532
Weight (approx) Kg

A2FE
