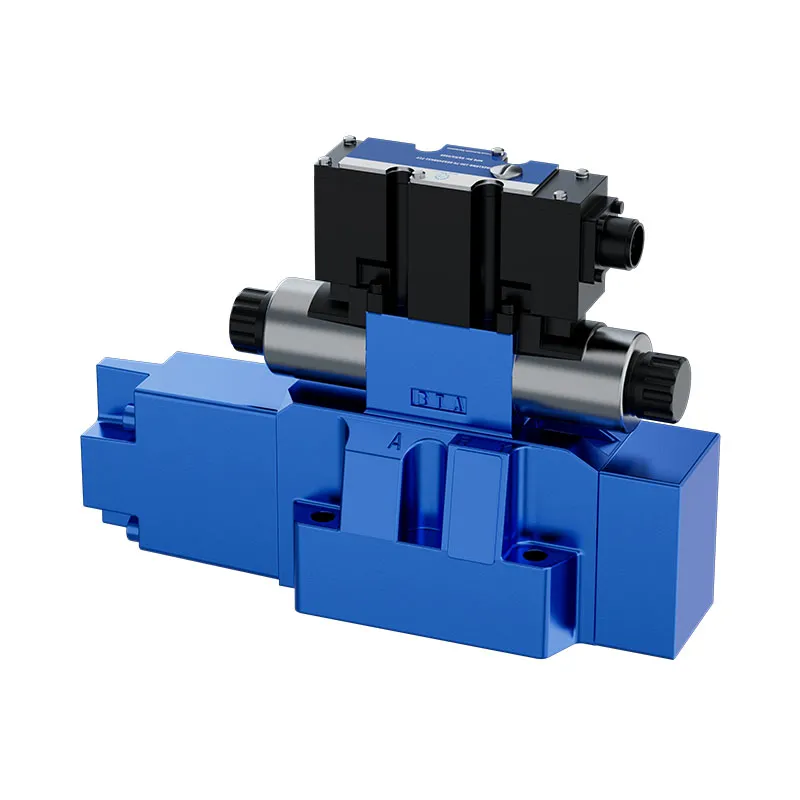

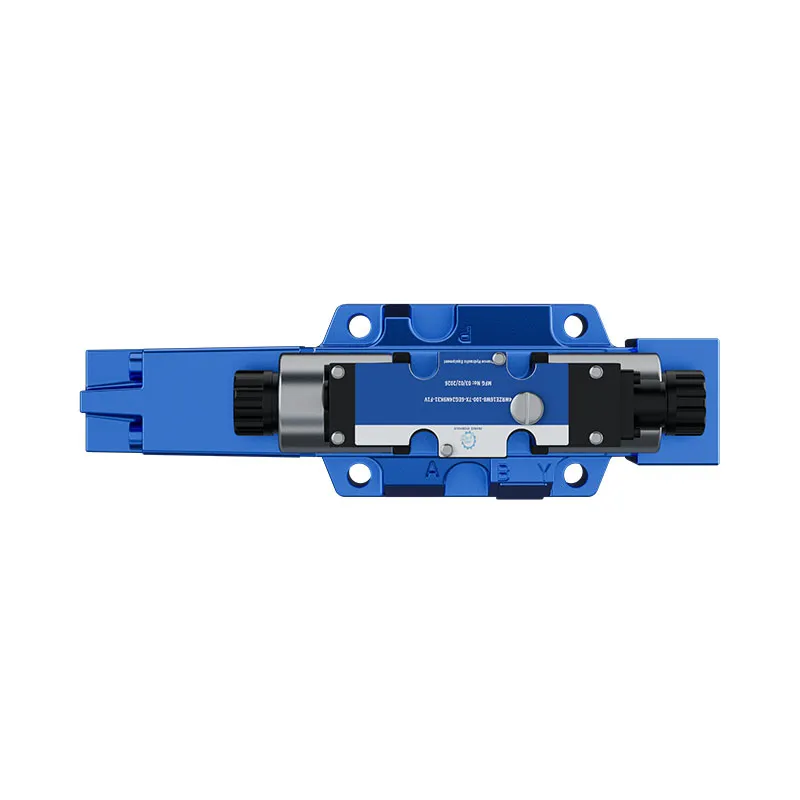

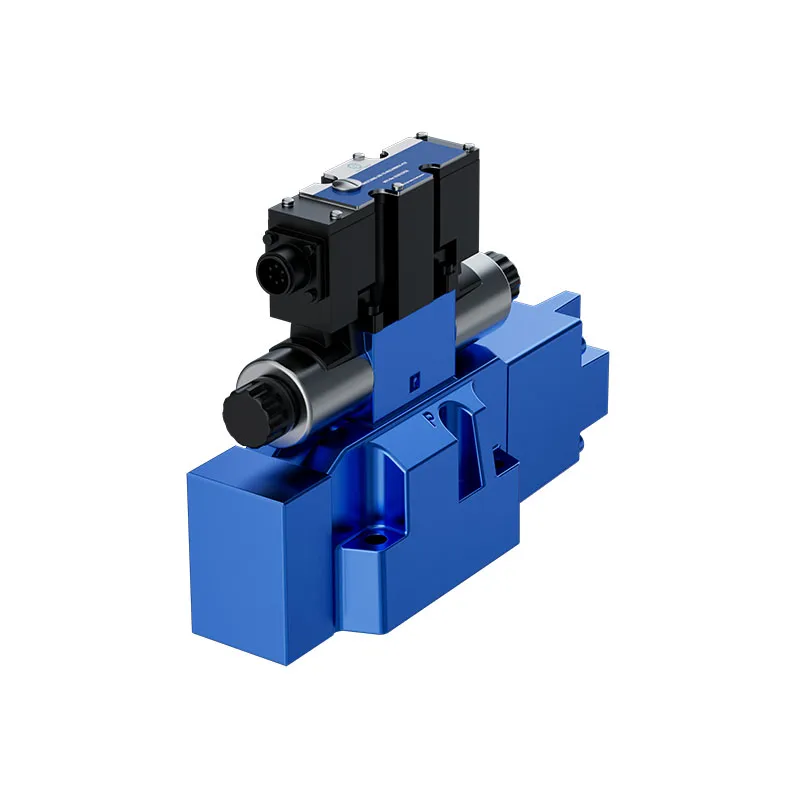

4WRZE Pilot Operated Proportional Valve
The 4WRZE pilot-operated proportional valve controls flow direction and flow rate. Its subplate interface and spring-centered spool are part of the existing product description. For a press application, valve selection must be tied to the complete machine hydraulic and control design.
- Pilot-operated directional control
- Subplate mounting
- Spring-centered spool
- Proportional electronics must match the valve code
PRANCE HYDRAULIC · PRODUCT SERIES
Pilot-operated proportional directional valve · Subplate-mounted direction and flow control
The 4WRZE pilot-operated proportional valve controls flow direction and flow rate. Its subplate interface and spring-centered spool are part of the existing product description. For a press application, valve selection must be tied to the complete machine hydraulic and control design.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Pilot-operated directional control
- Subplate mounting
- Spring-centered spool
- Proportional electronics must match the valve code
CATEGORIES: Hydraulic Valve, Proportional Valve
4WRZE Features & Application
Pilot-operated directional control
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
Subplate mounting
Check pilot diameter, bolt pattern, shaft engagement or port pattern against the approved installation drawing.
Spring-centered spool
Match the circuit symbol, flow condition and mounting interface. The family name alone does not establish the correct spool or electrical option.
Proportional electronics must match the valve code
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
4WRZE Specifications
| Series / model | 4WRZE |
|---|---|
| Product type | 4WRZE Pilot Operated Proportional Valve |
| Design | Pilot-operated proportional directional valve |
| Circuit / selection | Subplate-mounted direction and flow control |
| Mounting | Subplate mounting |
| Control function | Proportional direction and flow; confirm spool and electronics |
4WRZE Selection & Configuration
The 4WRZE pilot-operated proportional valve controls flow direction and flow rate. Its subplate interface and spring-centered spool are part of the existing product description. For a press application, valve selection must be tied to the complete machine hydraulic and control design.
Check pilot supply, drain arrangement, spool overlap and command behavior at startup and switch-off. Do not use the series name as evidence of a safety function. Request the specific valve symbol, pressure-drop condition for rated flow and electrical connection drawing.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the 4WRZE nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

4WRZE Buying Guide
Use this sequence to prepare the 4WRZE configuration for review and quotation.
- Select the circuit symbol and required de-energized spool position.
- State working flow, pressure and the pressure-drop condition for rated flow.
- Review spool overlap and command behavior during startup and switch-off.
- Confirm nominal size, subplate pattern, port and seal requirements.
- Match supply voltage, command input, connector and pin assignment.
- Review pilot supply, drain and feedback where the selected valve uses them.
- Approve the exact valve code, circuit drawing, quantity and documentation.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete 4WRZE code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your 4WRZE Application
Send the full model code, operating duty, installation details and quantity.
Request a 4WRZE Quotation4WRZE Questions Before Ordering
What type of product is the 4WRZE?
4WRZE Pilot Operated Proportional Valve. Design: Pilot-operated proportional directional valve. Subplate-mounted direction and flow control. Confirm the complete order code for the offered version.
Can a similar valve replace the 4WRZE?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Select the circuit symbol and required de-energized spool position. State working flow, pressure and the pressure-drop condition for rated flow. Attach the nameplate, complete order code, installation drawing and required quantity.
4WRZE Technical Data & Documents
View 4WRZE catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data (for applications outside these parameters, please consult us!)
hydraulic (measured with HLP46, θoil=40 ℃+5 ℃ and p=100 bar)
| Size | Size | 10 | 16 | 25 | 32 | 52 | |
| Operating pressure – Pilot control valve | External pilot oil supply Internal pilot oil supply | bar | 30 to 100 | 20 to 100 | |||
| _ | |||||||
| bar | 100 to 315 only with “D3” | 100 to 350 only with “D3” | |||||
| -Main valve | bar | Up to 315 | Up to 350 | Up to 350 | Up to 350 | Up to 350 | |
| Return flow pressure | – Port T (port R) (external pilot oil retum) | bar | Up to 315 | Up to 250 | Up to 250 | Up to 150 | Up to 250 |
| – Port T (internal pilot oil return) | bar | Up to 30 | Up to 30 | Up to 30 | Up to 30 | – | |
| – Port Y | bar | Up to 30 | Up to 30 | Up to 30 | Up to 30 | Up to 30 | |
| Flow of the main valve | l/min | Up to 170 | Up to 460 | Up to 870 | Up to 1600 | Up to 2800 | |
| Pilot flow at ports X and Y with stepped input signal 0→100% | l/min | 3.5 | 5.5 | 7 | 15.9 | 7 | |
| Pilot volume for switching process 0→100% | cm3 | 1.7 | 4.6 | 10 | 26.5 | 54.3 | |
| Hydraulic fluid | See table below | ||||||
| Hydraulic fluid temperature range(at the valve working ports) | ℃ | -20 to +80 (preferably +40 to +50) | |||||
| Viscosity range | mm2/s | 20 to 380 (preferably 30 to 46) | |||||
| Maximum admissible degree of contamination of the hydraulicfluid, cleanliness class according to ISO 4406 (c) | |||||||
| – Pilot control valve | Class 18/16/13 1) | ||||||
| – Main valve | Class 20/18/15 1) | ||||||
| Hysteresis | % | ≤6 | |||||
| Hydraulic fluid | Classification | Suitable sealing materials | Standards | |
| Mineral oils and related hydrocarbons | HL, HLP | NBR,FKM | DIN 51524 | |
| Flame-resistant | -containing water | HFC (Fuchs HYDROTHERM 46M,Petrofer Ultra Safe 620) | NBR | ISO 12922 |
| Important information on hydraulic fluids! -For more information and data on the use of other hydraulic fluids refer to data sheet 90220 or contact us! -There may be limitations regarding the technical valve data (temperature, pressure range, life cycle, maintenance intervals, etc.)! -The flash point of the process and operating medium used must be 40 K greater than the maximum solenoid surface temperature. – Flame-resistant- containing water:The maximum pressure differential per control edge 175 bar. Pressure preloading at the tank port > 20% of the pressure differential; otherwise, increased cavitation. – Life cycle as compared to operation with mineral oil HL,HLP 50% to 100% | ||||
Electric
| Valvetype | .WRZ 1) | .WRZE | ||
| Voltage type | Direct voltage | |||
| Command value overlap | % | 15 | ||
| Maximum current | A | 1.5 | 2.5 | |
| Solenoid coil resistance | – Cold value at 20 °C | Ω | 4.8 | 2 |
| – Maximum hot value | Ω | 7.2 | 3 | |
| Duty cycle | % | 100 | ||
| Maximum coil temperature 3) | ℃ | 150 | ||
| Protection class of the valve according to EN 60529 | IP65 with mating connectors mounted and locked | |||
Control electronics
| Type 4WRZ | Digital amplifier in Euro-card format 2) | VT-VSPD-1-2X/…according to data sheet 30523 | ||
| Analog amplifier in Euro-card format 2) with 1 ramp time | VT-VSPA2-1-2X/V0/T1, according to data sheet 30110 | |||
| Analog amplifier in Euro-card format 2) with 5 ramp times | VT-VSPA2-1-2X/V0/T5, according to data sheet 30110 | |||
| Analog module amplifier 2) | VT-11118-1X/… according to data sheet 30218 | |||
| Type 4WRZE | Analog command value module 2) | Integrated in the valve, see page 14 | ||
| VT- SWMA-1-1X/… according to data sheet 29902 | ||||
| Analog command value module 2) | VT-SWMAK-1-1X/… according to data sheet 29903 | |||
| Digital command value card 2) | VT-HACD-1-1X/… according to data sheet 30143 | |||
| Analog command value card 2) | VT-SWKA-1-1X/… according to data sheet 30255 | |||
| Current consumption | Imax | A | - | 1.8 |
| – Impulse current | A | - | 3 | |
| Command value signal | – Voltage input “A1” | V | - | ±10 |
| – Current input “F1” | mA | - | 4 to 20 | |
