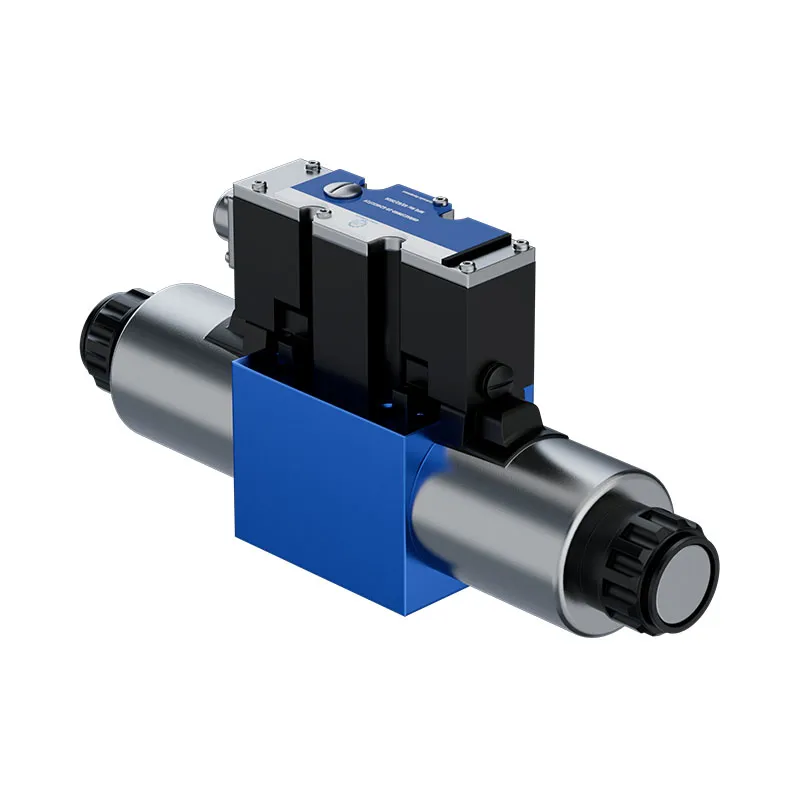

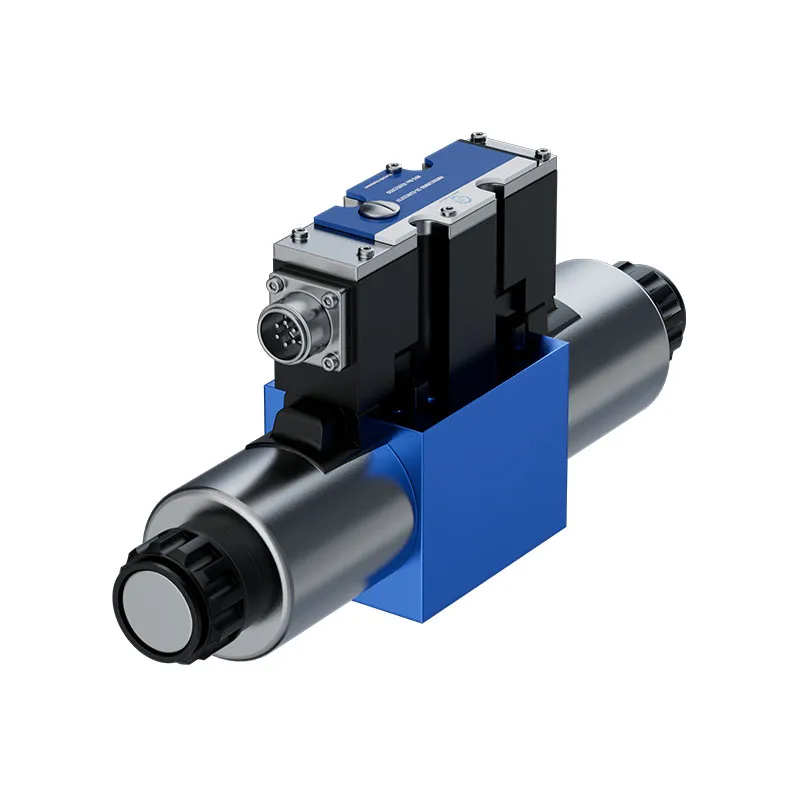

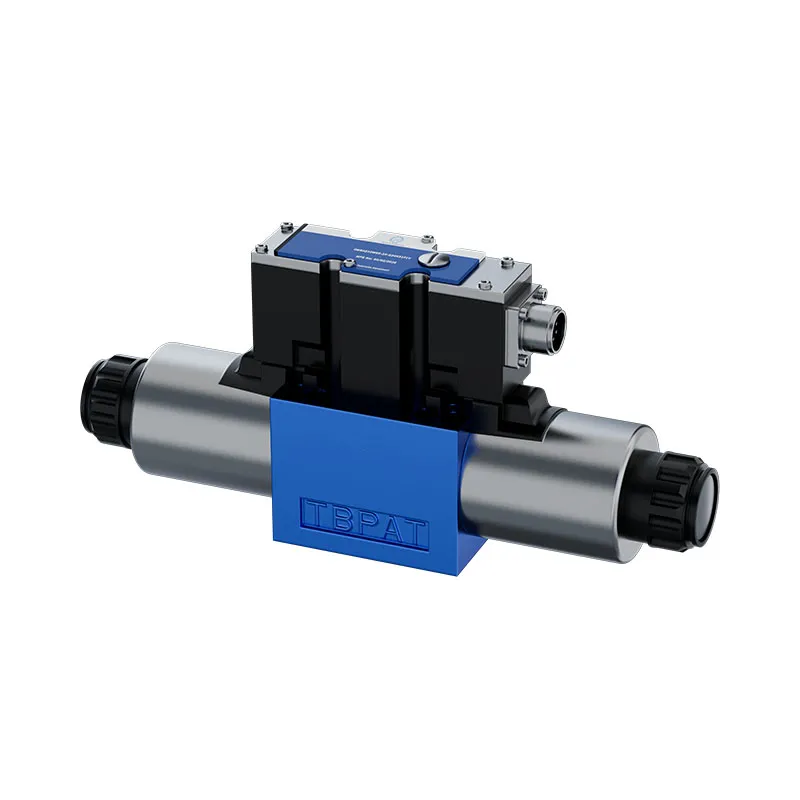

4WRAE Direct Operated Proportional Valve
The 4WRAE proportional valve controls hydraulic direction and flow by direct actuation. The series table includes both WRA and WRAE versions; the WRAE integrated-electronics data must be used when matching the controller and connector.
- Direct actuation
- Spring-centered control spool
- Integrated electronics for WRAE variant
- Subplate mounting
PRANCE HYDRAULIC · PRODUCT SERIES
Direct-operated proportional directional valve · Subplate-mounted direction and flow control
The 4WRAE proportional valve controls hydraulic direction and flow by direct actuation. The series table includes both WRA and WRAE versions; the WRAE integrated-electronics data must be used when matching the controller and connector.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Direct actuation
- Spring-centered control spool
- Integrated electronics for WRAE variant
- Subplate mounting
CATEGORIES: Hydraulic Valve, Proportional Valve
4WRAE Features & Application
Direct actuation
Specify the full 4WRAE order code, installation drawing and operating duty so the quotation can identify the proposed configuration.
Spring-centered control spool
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
Integrated electronics for WRAE variant
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
Subplate mounting
Check pilot diameter, bolt pattern, shaft engagement or port pattern against the approved installation drawing.
4WRAE Specifications
| Series / model | 4WRAE |
|---|---|
| Product type | 4WRAE Direct Operated Proportional Valve |
| Design | Direct-operated proportional directional valve |
| Circuit / selection | Subplate-mounted direction and flow control |
| Published nominal sizes | 6 and 10 |
| Listed WRAE command variants | A1: ±10 V; F1: 4–20 mA |
| Rated-flow test condition | Δp = 10 bar in the existing technical table |
4WRAE Selection & Configuration
The 4WRAE proportional valve controls hydraulic direction and flow by direct actuation. The series table includes both WRA and WRAE versions; the WRAE integrated-electronics data must be used when matching the controller and connector.
Confirm nominal size, spool characteristic and command input before choosing a rated flow. Rated flow is given at a specified pressure drop and is different from maximum permissible flow. Keep the WRA and WRAE electrical data separate during comparison.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the 4WRAE nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

4WRAE Buying Guide
Use this sequence to prepare the 4WRAE configuration for review and quotation.
- Select the circuit symbol and required de-energized spool position.
- State working flow, pressure and the pressure-drop condition for rated flow.
- Review spool overlap and command behavior during startup and switch-off.
- Confirm nominal size, subplate pattern, port and seal requirements.
- Match supply voltage, command input, connector and pin assignment.
- Review pilot supply, drain and feedback where the selected valve uses them.
- Approve the exact valve code, circuit drawing, quantity and documentation.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete 4WRAE code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your 4WRAE Application
Send the full model code, operating duty, installation details and quantity.
Request a 4WRAE Quotation4WRAE Questions Before Ordering
What type of product is the 4WRAE?
4WRAE Direct Operated Proportional Valve. Design: Direct-operated proportional directional valve. Subplate-mounted direction and flow control. Confirm the complete order code for the offered version.
Can a similar valve replace the 4WRAE?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Select the circuit symbol and required de-energized spool position. State working flow, pressure and the pressure-drop condition for rated flow. Attach the nameplate, complete order code, installation drawing and required quantity.
4WRAE Technical Data & Documents
View 4WRAE catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
(for applications outside these parameters, please consult us!)General
| Nominal size | NS | 6 | 10 | |
| Installation | optional, preferably horizontal | |||
| Storage temperature range | ℃ | -20 to +80 | ||
| Ambient | 4WRA | ℃ | -20 to +70 | |
| temperature range | 4WRAE | ℃ | -20 to +50 | |
| Weight | 4WRA | kg | 2.0 | 6.6 |
| 4WRAE | kg | 2.2 | 6.8 | |
| Hydraulic (measured with HLP46,Θoil= 40 ℃±5 ℃) | ||||
| Max. operating pressure | Ports A, B, P | bar | 315 | |
| Port T | bar | 210 | ||
| Nominal flow qV nom at Δp=10 bar | l/min | 7,15,26 | 30,60 | |
| Max. permissible flow | l/min | 42 (80)1) | 75 (140)1) | |
| Pressure fluid | mineral oil (HL, HLP) to DIN 51524 other pressure fluids on request! | |||
| Pressure fluid temperature range | ℃ | -20 to +80 (preferably +40 to +50) | ||
| Viscosity range | mm2/s | 20 to 380 (preferably 30 to 46) | ||
| Max. permissible degree of pressure fluid contamination cleanlisness class to ISO 4406 (c) | class 20/18/15 2) | |||
| Hysteresis | % | ≤ 5 | ||
| Reversal error | % | ≤ 1 | ||
| Response sensitivity | % | ≤ 0.5 | ||
Electical
| Nominal size | NS | 6 | 10 | |
| Voltage type | DC | |||
| Command value signa | Voltage input “A1” | V | ±10 | |
| with type WRAE | Current input “F1” | mA | 4 to 20 | |
| Max. current per solenoid | A | 2.5 | ||
| Solenoid coil | Cold value at 20 ℃ | Ω | 2 | |
| resistance | Max. warm value | Ω | 3 | |
| Duty | % | 100 | ||
| Max. coil temperature 1) | ℃ | 150 | ||
| Electrical connections see page 7 | 4WRA | with component plug to DIN EN 175301-803 or ISO 4400 | ||
| plug-in connector to DIN EN 175301-803 or ISO 4400 2) | ||||
| 4WRAE | with component plug to DIN EN 175201-804 | |||
| plug-in connector DIN EN 175201-804 2) | ||||
| Valve protection to EN 60529 | IP65 with mounted and fixed plug-in connector | |||
Control electronics
| For 4WRA | Digital amplifier in Eurocard format 2) | VT-VSPD-1-2X (to RE 30523 – middle of 2006) | |
| Analogue amplifier in Eurocard format 2) | VT-VSPA2-1-2X/… to RE 30110 | ||
| Analogue module amplifier 2) | VT-MSPA2-1-1X to RE 30228 | ||
| For 4WRAE | Analogue command value module | integrated into the valves, see page 8 | |
| VT- SWMA-1-1X/… to RE 29902 | |||
| Analogue command value module | VT-SWMKA-1-1X/… to RE 29903 | ||
| Digital command value card | VT-HACD-1-1X/… to RE 30143 | ||
| Analogue command value card | VT-SWKA-1-1X/… to RE 30255 | ||
| Supply voltage 4WRAE, 4WRA 3) | Nominal voltage | VDC | 24 |
| Lower limiting value | V | 21 / 22 (4WRA); 19 (4WRAE) | |
| Upper limiting value | V | 35 | |
| Amplifier current | lmax | A | 1.8 |
| consumption | Max. impulse current | A | 3 |
Note:
For details regarding the environmental simulation test covering EMC (electromagnetic compatibility), climate and mechanical loading see RE 29055-U(declaration regarding environmental compatibility).Watch 4WRAE Product Video
Related Selection Resources
Request a 4WRAE Quotation
Tell us your required configuration, quantity and application.
Technical data
(for applications outside these parameters, please consult us!)
General
| Nominal size | NS | 6 | 10 | |
| Installation | optional, preferably horizontal | |||
| Storage temperature range | ℃ | -20 to +80 | ||
| Ambient | 4WRA | ℃ | -20 to +70 | |
| temperature range | 4WRAE | ℃ | -20 to +50 | |
| Weight | 4WRA | kg | 2.0 | 6.6 |
| 4WRAE | kg | 2.2 | 6.8 | |
| Hydraulic (measured with HLP46,Θoil= 40 ℃±5 ℃) | ||||
| Max. operating pressure | Ports A, B, P | bar | 315 | |
| Port T | bar | 210 | ||
| Nominal flow qV nom at Δp=10 bar | l/min | 7,15,26 | 30,60 | |
| Max. permissible flow | l/min | 42 (80)1) | 75 (140)1) | |
| Pressure fluid | mineral oil (HL, HLP) to DIN 51524 other pressure fluids on request! |
|||
| Pressure fluid temperature range | ℃ | -20 to +80 (preferably +40 to +50) | ||
| Viscosity range | mm2/s | 20 to 380 (preferably 30 to 46) | ||
| Max. permissible degree of pressure fluid contamination cleanlisness class to ISO 4406 (c) | class 20/18/15 2) | |||
| Hysteresis | % | ≤ 5 | ||
| Reversal error | % | ≤ 1 | ||
| Response sensitivity | % | ≤ 0.5 | ||
1)permissible flow with a dual flow path
2)The cleanliness class stated for the components must be adhered too in hydraulic systems. Effective filtration prevents faults from occurring and at the same time increases the component service life.For the selection of filters see catalogue sheets RE 50070,RE 50076, RE 50081, RE 50086 and RE 50088
Electical
| Nominal size | NS | 6 | 10 | |
| Voltage type | DC | |||
| Command value signa | Voltage input "A1" | V | ±10 | |
| with type WRAE | Current input "F1" | mA | 4 to 20 | |
| Max. current per solenoid | A | 2.5 | ||
| Solenoid coil | Cold value at 20 ℃ | Ω | 2 | |
| resistance | Max. warm value | Ω | 3 | |
| Duty | % | 100 | ||
| Max. coil temperature 1) | ℃ | 150 | ||
| Electrical connections see page 7 |
4WRA | with component plug to DIN EN 175301-803 or ISO 4400 | ||
| plug-in connector to DIN EN 175301-803 or ISO 4400 2) | ||||
| 4WRAE | with component plug to DIN EN 175201-804 | |||
| plug-in connector DIN EN 175201-804 2) | ||||
| Valve protection to EN 60529 | IP65 with mounted and fixed plug-in connector | |||
Control electronics
| For 4WRA | Digital amplifier in Eurocard format 2) | VT-VSPD-1-2X (to RE 30523 - middle of 2006) | |
| Analogue amplifier in Eurocard format 2) | VT-VSPA2-1-2X/... to RE 30110 | ||
| Analogue module amplifier 2) | VT-MSPA2-1-1X to RE 30228 | ||
| For 4WRAE | Analogue command value module | integrated into the valves, see page 8 | |
| VT- SWMA-1-1X/... to RE 29902 | |||
| Analogue command value module | VT-SWMKA-1-1X/... to RE 29903 | ||
| Digital command value card | VT-HACD-1-1X/... to RE 30143 | ||
| Analogue command value card | VT-SWKA-1-1X/... to RE 30255 | ||
| Supply voltage 4WRAE, 4WRA 3) |
Nominal voltage | VDC | 24 |
| Lower limiting value | V | 21 / 22 (4WRA); 19 (4WRAE) |
|
| Upper limiting value | V | 35 | |
| Amplifier current | lmax | A | 1.8 |
| consumption | Max. impulse current | A | 3 |
1) Due to the occurring surface temperature of the solenoid coils, the European Standards DIN EN 563 and DIN EN 982must be taken into account!
2) Separate order
3) With Bosch Rexroth AG control electronics
Note:
For details regarding the environmental simulation test covering EMC (electromagnetic compatibility), climate and mechanical loading see RE 29055-U(declaration regarding environmental compatibility).
