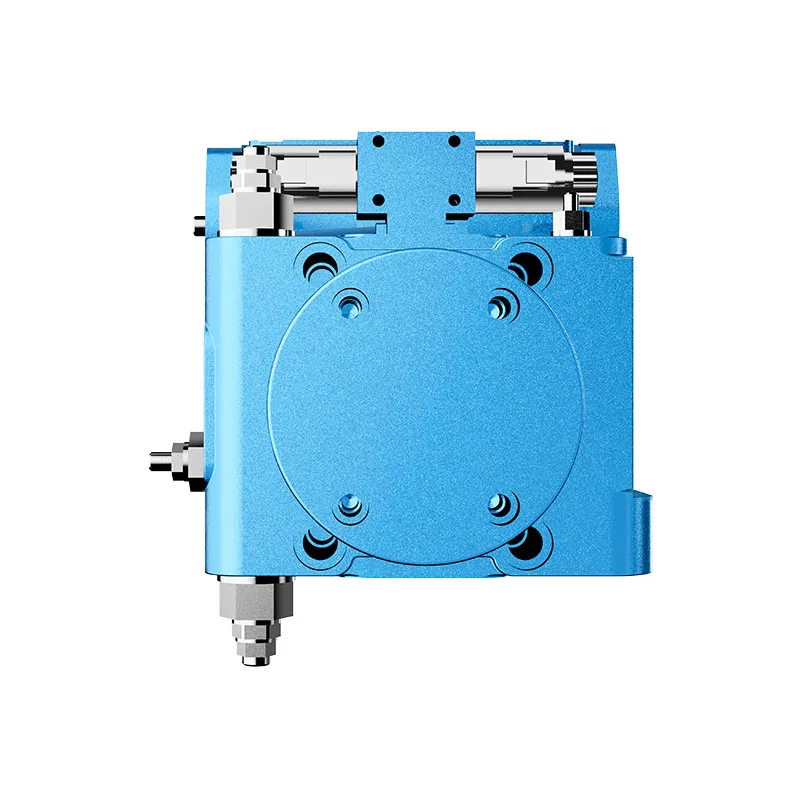

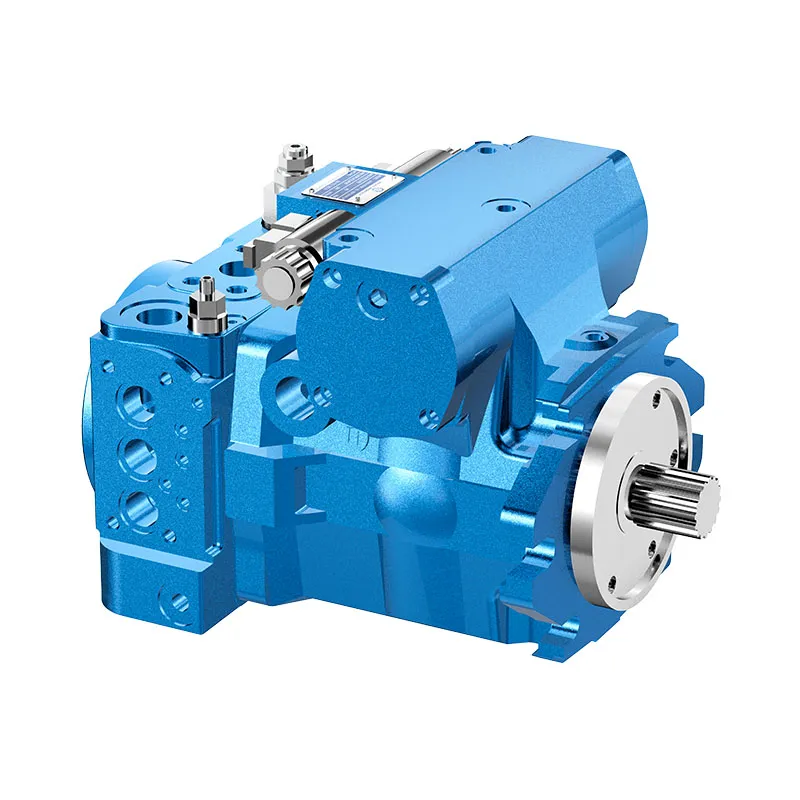

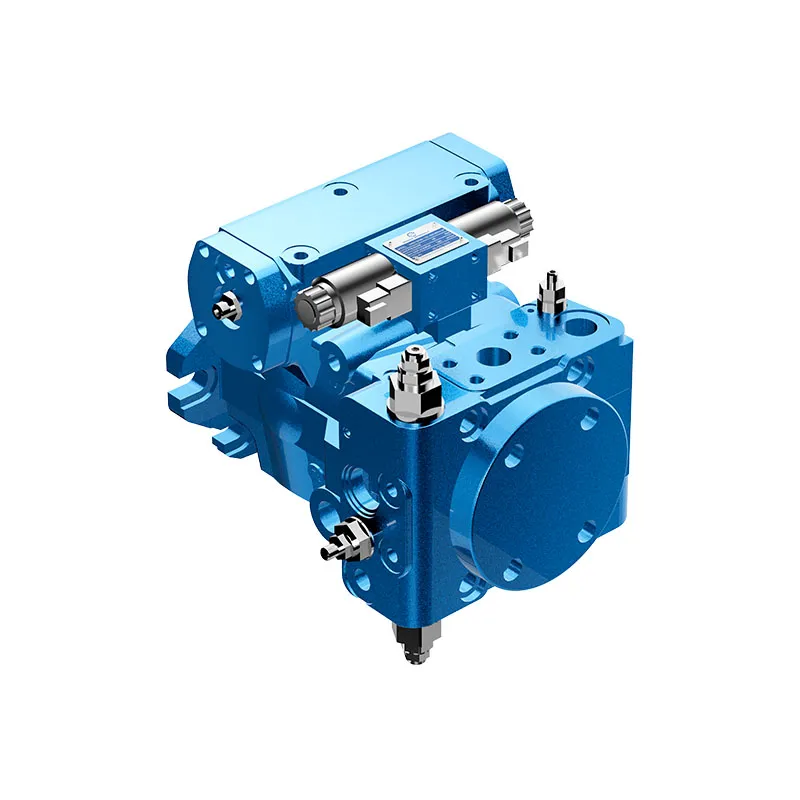

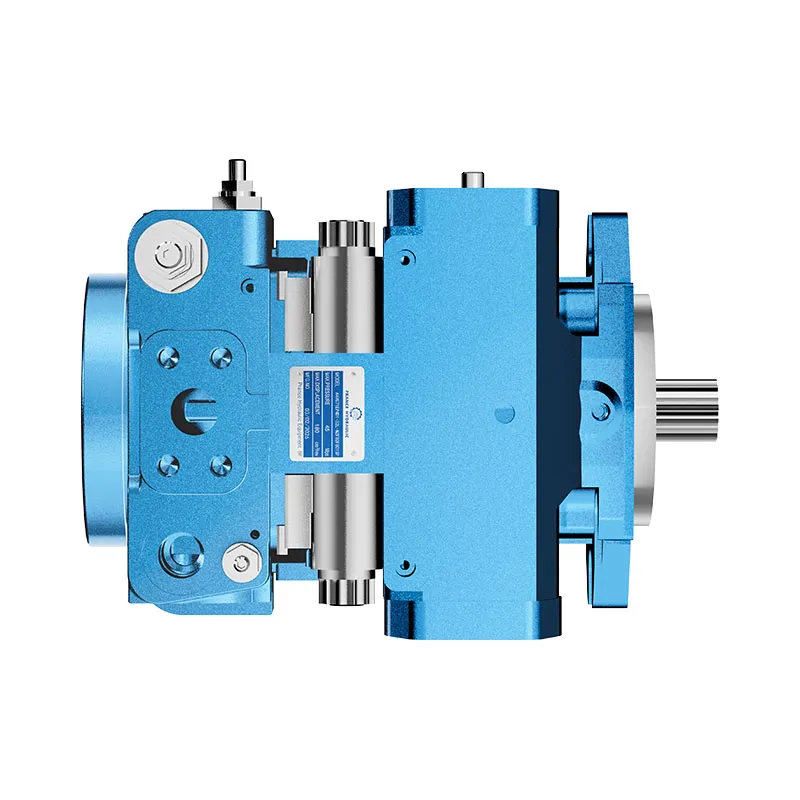

A4VG Closed Circuit Variable Piston Pump
The A4VG variable displacement pump is offered for closed-circuit hydraulic drives. The boost supply, high-pressure loop and control arrangement form one selection problem, especially where a drive reverses or sees an overrunning load.
- Integrated boost and pilot supply
- Reversible flow through neutral
- High-pressure relief functions
- Pressure cut-off configuration
PRANCE HYDRAULIC · PRODUCT SERIES
Axial piston; variable swashplate · Closed circuit
The A4VG variable displacement pump is offered for closed-circuit hydraulic drives. The boost supply, high-pressure loop and control arrangement form one selection problem, especially where a drive reverses or sees an overrunning load.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Integrated boost and pilot supply
- Reversible flow through neutral
- High-pressure relief functions
- Pressure cut-off configuration
CATEGORIES: Piston Pump, Variable Displacement Pump
A4VG Features & Application
Integrated boost and pilot supply
Account for pilot or replenishment demand and the relevant pressure limits. Include filtration and the return or drain route in the circuit review.
Reversible flow through neutral
Review combined drive torque and simultaneous demand, including any additional pump connected to the drive.
High-pressure relief functions
Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.
Pressure cut-off configuration
Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.
A4VG Specifications
| Series / model | A4VG |
|---|---|
| Product type | A4VG Closed Circuit Variable Piston Pump |
| Design | Axial piston; variable swashplate |
| Circuit / selection | Closed circuit |
| Published nominal sizes | 28, 40, 56, 71, 90, 125 and 180 |
| Circuit | Closed circuit |
A4VG Selection & Configuration
The A4VG variable displacement pump is offered for closed-circuit hydraulic drives. The boost supply, high-pressure loop and control arrangement form one selection problem, especially where a drive reverses or sees an overrunning load.
Check pressure cut-off, high-pressure relief and boost-pressure settings separately. Provide the motor, flushing demand, maximum drive speed and control signal. Confirm the model series and through-drive requirements before comparing another A4VG or AA4VG unit.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the A4VG nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

A4VG Buying Guide
Use this sequence to prepare the A4VG configuration for review and quotation.
- Define required flow at the actual drive speed and continuous pressure.
- Identify peak pressure, duration and the work cycle.
- Confirm the selected displacement control and any auxiliary-drive requirement.
- Match rotation viewed from the shaft end, shaft, flange and ports.
- Review inlet conditions, drain routing and the installation envelope.
- Confirm fluid, viscosity, temperature, filtration and seals.
- Approve the complete model, control, drawing, quantity and delivery terms.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete A4VG code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your A4VG Application
Send the full model code, operating duty, installation details and quantity.
Request a A4VG QuotationA4VG Questions Before Ordering
What type of product is the A4VG?
A4VG Closed Circuit Variable Piston Pump. Design: Axial piston; variable swashplate. Closed circuit. Confirm the complete order code for the offered version.
Can a similar pump replace the A4VG?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.
A4VG Technical Data & Documents
View A4VG catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
| Size Displacement.geometric.per revolution | NG | 28 | 40 | 56 | 71 | 90 | 125 | 180 | |||
| variable pump | Vg max | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||
| boost pump (at p=20bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | ||
| Rotational speed1) | maximum at Vg max | nnom | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | |
| limted,maximum2) | nmax1 | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | ||
| intermittent,maximum3) | nmax2 | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | ||
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Torque4) | at Vg max and | Δp = 440 bar | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | 1146 |
| Δp = 100 bar | T | Nm | 45 | 64 | 89 | 113 | 143 | 199 | 286 | ||
| Rotary stiffness of drive shaft | S | c | kNm/rad | 31.4 | 69 | 80.8 | 98.8 | 158.1 | 218.3 | 244.5 | |
| T | c | kNm/rad | – | – | 95 | 120.9 | – | 252.1 | 318.4 | ||
| A | c | kNm/rad | – | 79.6 | 95.8 | 142.4 | 176.8 | 256.5 | – | ||
| Z | c | kNm/rad | 32.8 | 67.5 | 78.8 | 122.8 | 137 | 223.7 | 319.6 | ||
| U | c | kNm/rad | – | 50.8 | – | – | 107.6 | – | – | ||
| Moment of inertia for rotary group | JTW | Kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | ||
| Maximum angular acceleration5) | α | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | ||
| Case volume | V | L | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | 3.1 | ||
| Weight (without through drive) approx. | m | kg | 29 | 31 | 38 | 50 | 60 | 80 | 101 | ||
Notice
▶Theoretical values, without efficiency and tolerances;values rounded ▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit.Determining the operation characteristics
Key
Vg Displacement per revolution in [cm3] Δp Differential pressure [bar] n Rotational speed [rpm] ηv Volumetric efficiency ηhm Hydraulic-mechanical efficiency ηt Total efficiency (ηt= ηv*ηhm) 1) The values are applicable: – for the optimum viscosity range from n =36 to 16mm2/s – for hydraulic fluid based on mineral oils (for HF hydraulic fluids,observe the technical data in 90225) 2)Valid at half corner power (e.g.at Vg max and p,/2) 3) Valid at Δp=70 to 150 bar or Δp < 300 bar and t<0.1s 4) Without boost pump 5) The data are valid for values between the minimum required and maximum permissible rotational speed.Valid for external excitation (e.g.diesel engine 2 to 8 times rotary frequency,cardan shaft twice the rotar frequency). The limit value is only valid for a single pump. The load capacity of the connection parts must be considered.Watch A4VG Product Video
Related Selection Resources
Request a A4VG Quotation
Tell us your required configuration, quantity and application.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| A4V | G | D | / | 32 | - | N |
Axial pistion unit
| 01 | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
Operating mode
| 02 | Pump, closed circuit | G |
Size (NG)
| 03 | Geometric displacement, see "Technical data" on page 8 | 28 | 40 | 56 | 71 | 90 | 125 | 180 |
Control device
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | |||||
| 04 | Without control module | ● | ● | ● | ● | ● | ● | ● | NV | ||
| Proportional control, hydraulic | Pilot-pressure related p = 6 to 18 bar | ● | ● | ● | ● | ● | ● | ● | HD3 | ||
| Mechanical servo | ● | ● | ● | ● | ● | ● | ● | HW | |||
| Proportional control, electric | U=12V | ● | ● | ● | ● | ● | ● | ● | EP3 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | EP4 | |||
| Two-point control, electric | U=12V | ● | ● | ● | ● | ● | ● | ● | EZ1 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | EZ2 | |||
| Automatic control, speed related | U=12V | ● | ● | ● | ● | ● | ● | ● | DA1 | ||
| U=24V | ● | ● | ● | ● | ● | ● | ● | DA2 | |||
| tydraulic control, direct operated | ● | ● | ● | ● | ● | ● | ● | DG | |||
| Electric control, direct operated,
two pressure reducing valves |
U=12V | ● | ● | ● | ● | - | - | - | ET5 | ||
| U=24V | ● | ● | ● | ● | - | - | - | ET6 | |||
Pressure cut-off
| 05 | Pressure cut-off(standard) | D |
Neutral position switch
| 06 | Without neutral position switch (without code) | ● | |
| Neutral position switch (for HW control only) | ● | L |
Mechanical stroke limiter
| 07 | Without mechanical stroke limiter (without code) | ● | |
| Mechanical stroke limiter, externally adjustable | ● | M |
Stroking chamber pressure port
| 06 | Without stroking chamber pressure port X3, X4 without code | ● | |
| Stroking chamber pressure port X3, X4 | ● | T |
DA control valve
| NV | HD | HW | DG | DA | EP | EZ | ||||
| 09 | Without DA control valve | ● | ● | ● | ● | - | ● | ● | 1 | |
| DA control valve, fixed setting | - | ● | ● | ● | ● | ● | - | 2 | ||
| DA control valve, mechanically adjustable with position lever | direction of actuation, clockwise | - | ● | ● | ● | ● | ● | - | 3R | |
| direction of actuation,
counter-clockwise |
- | ● | ● | ● | ● | ● | - | 3L | ||
| DA control valve, fixed setting, ports for pilot control device | - | ● | ● | - | ● | ● | - | 7 | ||
| DA control valve, fixed setting and brake inch valve mounted, control with brake fluid | based on mineral oil | - | - | - | - | ● | - | - | 8 | |
•= available ○= on request -= not available
= preferred program
Series
| 10 | Series 3, index 2 | 32 |
Direction of rotation
| 11 | Viewed from shaft end | clockwise | R |
| counter-clockwise | L |
Sealing material
| 12 | NBR(nitrile rubber),shaft seal in FKM (fluoroelastomer) | N |
Drive shaft
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||||
| 13 | Splined shaft
DIN 5480 |
for single pump | ● | ● | ● | ● | ● | ● | ● | Z |
| for combination pump-1st pump | _1) | ● | ● | ● | ● | ● | _2) | A | ||
| Splined shaft
ANSI B92. 1a |
for single pump | ● | ● | ● | ● | ● | ● | ● | S | |
| for combination pump-1st pump | _2) | _2) | ● | ● | _2) | ● | ● | T | ||
| for combination pump-2nd pump | - | ● | - | - | ● | - | - | U |
Mounting flange
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||||
| 14 | SAE J744 | 2-hole | ● | ● | ● | - | - | - | - | C |
| 4-hole | - | - | - | - | - | - | ● | D | ||
| 2+4-hole | - | - | - | ● | ● | ● | - | F |
Working port
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||||
| 15 | SAE Working port A and B, top and bottom | Suction port S bottom | - | ● | ● | ● | ● | ● | ● | 02 |
| SAE Working port A and B, top and bottom | Suction port S top | - | ● | ● | ○ | ○ | ○ | ○ | 03 | |
| SAE Working port A and B, same side right3) | Suction port S bottom | ● | - | - | - | - | - | - | 10 | |
| SAE Working port A and B, same side left3) | Suction port S bottom | - | - | - | ● | ○ | ● | - | ||
| SAE Working port A and B, same side right3) | Suction port S top | - | - | - | ○ | ○ | ○ | - | 13 | |
| SAE Working port A and B, same side left3) | Suction port S top | ● | - | ● | - | - | - | - |
Boost pump
| 16 | Without integrated boost pump | without through drive | N |
| with through drive | K | ||
| Integrated boost pump | with and without through drive | F |
Through drive
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||||
| 17 | Without through drive, versions N and F(no. 16) only | ● | ● | ● | ● | ● | ● | ● | 00 | |
| Flange SAE J7444) | Hub for splined shaft | |||||||||
| 82-2(A) | 5/8 in 9T 16/32DP5) | ● | ● | ● | ● | ● | ● | ● | 01 | |
| 101-2(B) | 7/8 in 13T 16/32DP5) | ● | ● | ● | ● | ● | ● | ● | 02 | |
| 1 in 15T 16/32DP5) | ● | ● | ● | ● | ● | ● | ● | 04 | ||
| 127-2(C) | 1 in 15T 16/32DP5) | - | ● | - | - | - | - | - | 09 | |
| 1 1/4 in 14T 12/24DP5) | - | - | ● | ● | ● | ● | ● | 07 | ||
| 52-2/4(D) | W35 2X16X9g7) | - | - | - | - | ● | - | - | 73 | |
| 1 3/4 in 13T 8/16DP5) | - | - | - | - | - | ● | ● | 69 | ||
| 165-4(E) | 1 3/4 in 13T 8/16DP5) | - | - | - | - | - | - | ● | 72 | |
•= available ○= on request -= not available
1)Standard for combination pump-1st pump:Shaft Z
2) Standard for combination pump -1st pump:Shaft S
3) Only possible without attachment filter
4)2=2-hole;4=4-hole
5) Hub for splined shaft to ANSI B92.1a
6) NG90 to 180 with additional 4-hole-flange (127-4)
7) Hub for splined shaft according to DIN 5480.
High-pressure relief valve
| Setting rabe Δp | 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||||
| 18 | High-pressure relief valve,pilot operated | 100 to 420 bar | with bypass | - | - | - | ● | ● | ● | ● | 1 |
| High-pressure relief valve,direch operated, fixed setting | 250 to 420 bar | without bypass | ● | ● | ● | - | - | - | - | 3 | |
| with bypass | ● | ● | ● | - | - | - | - | 5 | |||
| 100 to 250 bar | without bypass | ● | ● | ● | - | - | - | - | 4 | ||
| with bypass | ● | ● | ● | - | - | - | - | 6 | |||
Filtration boost circuit/external boost pressure supply
| 28 | 40 | 56 | 71 | 90 | 125 | 180 | |||
| 19 | Filtration in the boost pump suction line | ● | ● | ● | ● | ● | ● | ● | S |
| Filtration in the boost pump pressure line
Porst for external boost circuit filtration (Fe and Fa) |
● | ● | ● | ● | ● | ● | ● | D | |
| Attachment filter with cold start valve | - | ● | ● | ● | ● | ● | ● | F | |
| Attachment filter with cold start valve and visual contamation indicator | - | ● | ● | ● | ● | ● | ● | P | |
| Attachment filter with cold start valve and electric contamation indicator | - | ● | ● | ● | ● | ● | ● | B | |
| External boost pressure supply (version without integrated boost pump-N00, K...) | ● | ● | ● | ● | ● | ● | ● | E |
Swivel angle sensor
| 28 to 180 | |||
| 20 | Without swivel angle sensor (without code) | ● | |
| Electric swivel angle sensor8) | ● | R |
Connector for solenoids9)
| 28 to 180 | ||||
| 21 | Without connector (without code),only for purely hydraulic control | ● | ||
| DEUTSCH molded connector,2-pin | without suppressor diode | ● | P | |
| with suppressor diode(only for EZ and DA) | ● | Q | ||
Standard/special version
| 22 | Standard version | without code | |
| combined with attachment part or attachment pump | -K | ||
| Special version | -S | ||
| combined with attachment part or attachment pump | -SK |
•= available ○= on request -= not available
= preferred program
Notice
▶In addition to the type code,please specify the
relevant technical data when placing your order.
8)Please contact us if the swivel angle sensor is used for control
9) Connectors for other electric components may deviate
Technical data
| Size
Displacement.geometric.per revolution |
NG | 28 | 40 | 56 | 71 | 90 | 125 | 180 | |||
| variable pump | Vg max | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | 180 | ||
| boost pump (at p=20bar) | VgSp | cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | 39.8 | ||
| Rotational speed1) | maximum at Vg max | nnom | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2850 | 2500 | |
| limted,maximum2) | nmax1 | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | 2900 | ||
| intermittent,maximum3) | nmax2 | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | 3000 | ||
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Flow | at nnom and Vg max | qv | I/min | 119 | 160 | 202 | 234 | 275 | 356 | 450 | |
| Power4) | at nnom,Vg max and Δp = 400 bar | P | kW | 79 | 107 | 134 | 156 | 183 | 238 | 300 | |
| Torque4) | at Vg max and | Δp = 440 bar | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | 1146 |
| Δp = 100 bar | T | Nm | 45 | 64 | 89 | 113 | 143 | 199 | 286 | ||
| Rotary stiffness of drive shaft | S | c | kNm/rad | 31.4 | 69 | 80.8 | 98.8 | 158.1 | 218.3 | 244.5 | |
| T | c | kNm/rad | - | - | 95 | 120.9 | - | 252.1 | 318.4 | ||
| A | c | kNm/rad | - | 79.6 | 95.8 | 142.4 | 176.8 | 256.5 | - | ||
| Z | c | kNm/rad | 32.8 | 67.5 | 78.8 | 122.8 | 137 | 223.7 | 319.6 | ||
| U | c | kNm/rad | - | 50.8 | - | - | 107.6 | - | - | ||
| Moment of inertia for rotary group | JTW | Kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | 0.0444 | ||
| Maximum angular acceleration5) | α | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | 11000 | ||
| Case volume | V | L | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | 3.1 | ||
| Weight (without through drive) approx. | m | kg | 29 | 31 | 38 | 50 | 60 | 80 | 101 | ||
Notice
▶Theoretical values, without efficiency and tolerances;values rounded
▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit.
Determining the operation characteristics
| Flow | qv=(Vg ∙ n ∙ ηv) / 1000 | I/min |
| Torque | T=(Vg ∙ Δp) / 20 ∙ π ∙ ηhm | Nm |
| Power | P=(2π ∙ T ∙ n)/60000=(qv ∙ Δp)/600 ∙ ηt | kW |
Key
Vg Displacement per revolution in [cm3]
Δp Differential pressure [bar]
n Rotational speed [rpm]
ηv Volumetric efficiency
ηhm Hydraulic-mechanical efficiency
ηt Total efficiency (ηt= ηv*ηhm)
1) The values are applicable:
- for the optimum viscosity range from n =36 to 16mm2/s
- for hydraulic fluid based on mineral oils (for HF hydraulic fluids,observe the technical data in 90225)
2)Valid at half corner power (e.g.at Vg max and p,/2)
3) Valid at Δp=70 to 150 bar or Δp < 300 bar and t<0.1s
4) Without boost pump
5) The data are valid for values between the minimum required and maximum permissible rotational speed.Valid for external excitation (e.g.diesel engine 2 to 8 times rotary frequency,cardan shaft twice the rotar frequency).
The limit value is only valid for a single pump.
The load capacity of the connection parts must be considered.
