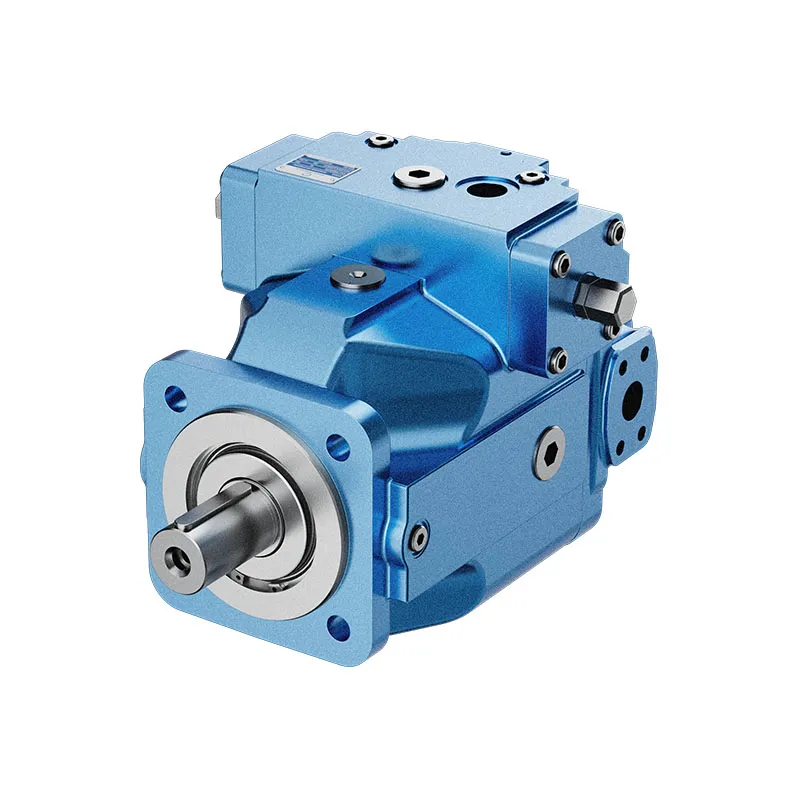

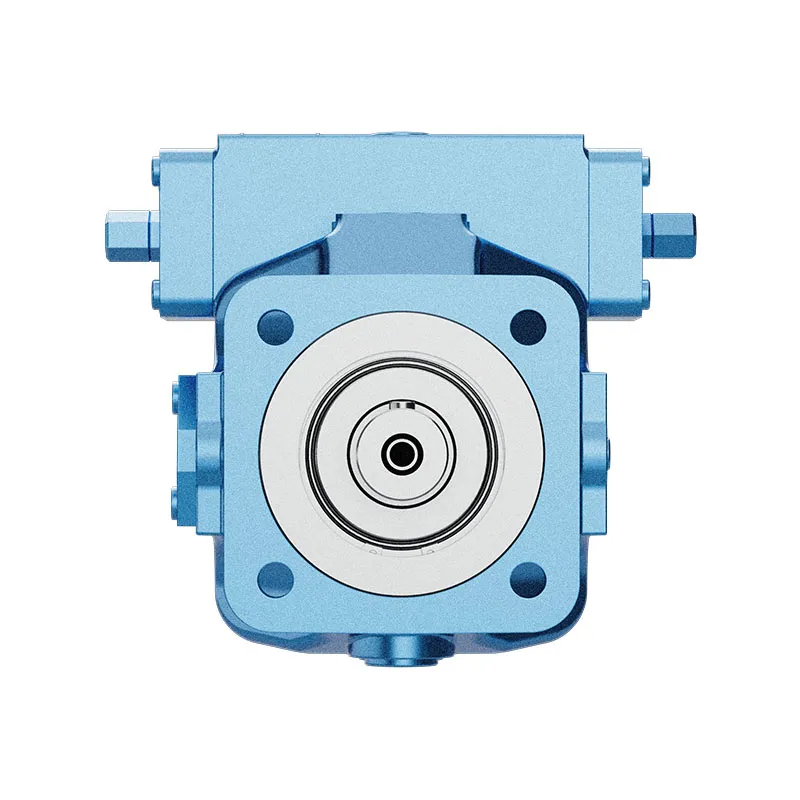

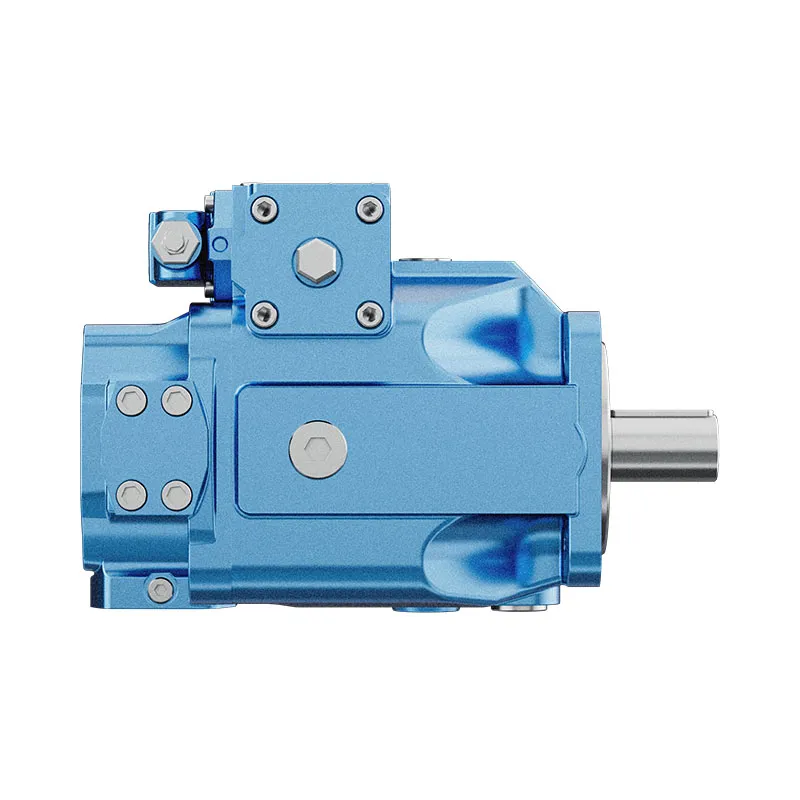

A4VSO Open Circuit Variable Piston Pump
The A4VSO open-circuit variable pump uses a swashplate axial piston rotary group. The family documentation also discusses variable-speed operation and fluid-specific versions; those options must be selected explicitly rather than assumed for every A4VSO.
- Open-circuit swashplate rotary group
- Variable-speed-drive use
- Fluid-specific variants require confirmation
- Size and control variants separated in the data
PRANCE HYDRAULIC · PRODUCT SERIES
Axial piston; variable swashplate · Open circuit
The A4VSO open-circuit variable pump uses a swashplate axial piston rotary group. The family documentation also discusses variable-speed operation and fluid-specific versions; those options must be selected explicitly rather than assumed for every A4VSO.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Open-circuit swashplate rotary group
- Variable-speed-drive use
- Fluid-specific variants require confirmation
- Size and control variants separated in the data
CATEGORIES: Piston Pump, Variable Displacement Pump
A4VSO Features & Application
Open-circuit swashplate rotary group
Review normal running, startup and reversal where applicable. The pressure and flow requirements can differ between operating states.
Variable-speed-drive use
Specify the displacement range or switching arrangement and verify performance at each required setting.
Fluid-specific variants require confirmation
Confirm the actual fluid and temperature range. Seal and fluid compatibility must be checked for the supplied version.
Size and control variants separated in the data
Match the complete control option and its command requirements to the existing controller. Similar housings can use different control arrangements.
A4VSO Specifications
| Series / model | A4VSO |
|---|---|
| Product type | A4VSO Open Circuit Variable Piston Pump |
| Design | Axial piston; variable swashplate |
| Circuit / selection | Open circuit |
| Published nominal sizes | 40, 71, 125, 180, 250, 355, 500, 750 and 1000 |
| Fluid variants | Confirm the selected standard or special version |
A4VSO Selection & Configuration
The A4VSO open-circuit variable pump uses a swashplate axial piston rotary group. The family documentation also discusses variable-speed operation and fluid-specific versions; those options must be selected explicitly rather than assumed for every A4VSO.
For a variable-speed drive, review both low-speed pressure holding and high-flow operation. Confirm minimum lubrication and inlet requirements, cooling, control stability and the selected fluid. A special HFC or HF version cannot be inferred from the standard product name.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the A4VSO nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

A4VSO Buying Guide
Use this sequence to prepare the A4VSO configuration for review and quotation.
- Define required flow at the actual drive speed and continuous pressure.
- Identify peak pressure, duration and the work cycle.
- Confirm the selected displacement control and any auxiliary-drive requirement.
- Match rotation viewed from the shaft end, shaft, flange and ports.
- Review inlet conditions, drain routing and the installation envelope.
- Confirm fluid, viscosity, temperature, filtration and seals.
- Approve the complete model, control, drawing, quantity and delivery terms.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete A4VSO code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your A4VSO Application
Send the full model code, operating duty, installation details and quantity.
Request a A4VSO QuotationA4VSO Questions Before Ordering
What type of product is the A4VSO?
A4VSO Open Circuit Variable Piston Pump. Design: Axial piston; variable swashplate. Open circuit. Confirm the complete order code for the offered version.
Can a similar pump replace the A4VSO?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.
A4VSO Technical Data & Documents
View A4VSO catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
Standard rotary group version
| Size | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 7505) | 1000 | ||
| Geometric displacement per revolution | Vg max | cm3 | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 750 | 1000 | |
| Rotational speed maximum1) | at Vg max2) | nnom | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | 1500 | 1320 | 1200 | 1500 | 1000 |
| at Vg ≤ Vg max3) | nmax | rpm | 3200 | 2700 | 2200 | 2100 | 1800 | 1700 | 1600 | 1500 | 1500 | 1200 | |
| Flow | at nnom and Vg max | qv | I/min | 104 | 156 | 225 | 324 | 375 | 533 | 660 | 900 | 1125 | 1000 |
| at 1500 rpm | qv | I/min | 60 | 107 | 186 | 270 | 375 | 533 | 5816) | 7706) | 1125 | – | |
| Power | With nnom, Vg max and Δp = 350 bar | P | kW | 61 | 91 | 131 | 189 | 219 | 311 | 385 | 525 | 656 | 583 |
| at 1500 rpm | P | kW | 35 | 62 | 109 | 158 | 219 | 311 | 3396) | 4496) | 656 | – | |
| Torque | at Vg max and Δp = 350 bar2) | Mmax | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 4174 | 5565 |
| and Δp = 100 bar2) | M | Nm | 64 | 113 | 199 | 286 | 398 | 564 | 795 | 1193 | 1193 | 1590 | |
| Rotary stiffness of drive shaft | Shaft end P | c | kNm/rad | 80 | 146 | 260 | 328 | 527 | 800 | 1145 | 1860 | 1860 | 2730 |
| Shaft end Z | c | kNm/rad | 77 | 146 | 263 | 332 | 543 | 770 | 1136 | 1812 | 1812 | 2845 | |
| Moment of inertia | JTW | Kgm2 | 0.0049 | 0.0121 | 0.03 | 0.055 | 0.0959 | 0.19 | 0.3325 | 0.66 | 0.66 | 1.20 | |
| Maximum angular acceleration4) | α | rad/s2 | 17000 | 11000 | 8000 | 6800 | 4800 | 3600 | 2800 | 2000 | 2000 | 1450 | |
| Case volume | V | L | 2 | 2.5 | 5 | 4 | 10 | 8 | 14 | 19 | 22 | 27 | |
| Weight (without through drive) approx. | m | kg | 39 | 53 | 88 | 102 | 184 | 207 | 320 | 460 | 490 | 605 | |
High-speed rotary group version
| Size | NG | 71 | 250 | 355 | 500 | ||
| Displacement, geometric, per revolution | Vg max | cm3 | 71 | 250 | 355 | 500 | |
| Rotational speed maximum1) | at Vg max | nnom | rpm | 3000 2)7)8) | 19002) | 17002) | 15002) |
| at Vg ≤ Vg max | nmax | rpm | – | 21003) | 19003) | 18003) | |
| Rotary stiffness of drive shaft | Shaft end P | c | kNm/rad | 146 | 527 | 800 | 1145 |
| Shaft end Z | c | kNm/rad | 146 | 543 | 770 | 1136 | |
| Moment of inertia | JTW | Kgm2 | 0.0121 | 0.0959 | 0.19 | 0.3325 | |
| Maximum angular acceleration4) | α | rad/s2 | 11000 | 4800 | 3600 | 2800 | |
| Case volume | V | L | 2.5 | 10 | 8 | 14 | |
| Weight (without through drive) approx. | m | kg | 53 | 184 | 207 | 320 | |
Maximum permissible speed (speed limit)(Ps abs = Inlet pressure [bar)
Maximal permissible speed at High Speed size 71
Determining the characteristics
Key
Vg = Displacement per revolution in [cm3] Δp = Differential pressure [bar] n = Rotational speed [rpm] ηv = Volumetric efficiency ηhm = Hydraulic-mechanical efficiency ηt = Total efficiency (ηt= ηv*ηhm)Notices
▶Theoretica values, without efficiency and tolerances;values rounded ▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. We recommend testing the loads by means of experiment or calculation / simulation and comparison with the permissible values. ▶Special requirements apply in the case of belt drives.Please contact us.Permissible radial and axial forces of the drive shafts
| Size | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 7501) | 1000 | ||
| Radial force, maximum | ![]() |
Fq max | N | 1000 | 1200 | 1600 | 2000 | 2000 | 2200 | 2500 | 3000 | 3500 |
| Maximum axial force | ![]() |
±Fax max | N | 600 | 800 | 1000 | 1400 | 1800 | 2000 | 2000 | 2200 | 2200 |
Permissible input and through-drive torques
| Size | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 1000 | |||
| Maximum input torque on drive shaft2) | ||||||||||||
| Splined shaft Z | ME max | Nm | 446 | 790 | 1392 | 2004 | 2782 | 3952 | 5566 | 8348 | 11130 | |
| Shaft key P | ME max | Nm | 380 | 700 | 1392 | 1400 | 2300 | 3557 | 5200 | 7513 | 9444 | |
| Maximum through-drive torque | ||||||||||||
| Splined shaft Z | MD max | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 5565 | |
| Shaft key P | MD max | Nm | 157 | 305 | 696 | 398 | 909 | 1581 | 2417 | 3339 | 3879 | |
Distribution of torques
| Input torque | ME=M1+M2+M3 |
| ME < ME max | |
| Through-drive torque | MD=M2+M3 |
| MD < MD max |

Watch A4VSO Product Video
Related Selection Resources
Request a A4VSO Quotation
Tell us your required configuration, quantity and application.
ORDER CODE
1.Hydraulic fluid / version
| Size | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | |
| Mineral oil (no code) | √ | √ | √ | √ | √ | √ | √ | √ | △ | |
| HF hydraulic fluid (with the exception of skydrol) | √ | √ | √ | √ | √ | √ | √ | √ | △ | E |
| High- Speed-Version | ▲ | ▲ | ▲ | √ | √ | √ | √ | △ | H |
2.Axial piston unit
| Swashplate design, variable, for industrial applications | A4VS |
3.Boost pump (Impeller)
| Size | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | |
| △ | △ | △ | √ | √ | √ | √ | △ | △ | L |
4.Type of operation
| Pump,open circuit | ○ |
5.Nominal size
| displacement Vg max (cm3/r) | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | |
| √ | √ | √ | √ | √ | √ | √ | √ | △ |
6.Control device
| Size | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | |
| Pressure control | DR | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Flow control | FR | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Power control with hyperbolic curve | LR | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Manual control | MA | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Electric Motor Control | EM | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Hydraulic control,control position dependent | HW | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Hydraulic control,control volume dependent | HM | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Hydraulic control,with servo /proportional valve HS | HS | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Electronic control | EO | √ | √ | √ | √ | √ | √ | √ | √ | △ |
| Hydraulic control,and stress related | HD | △ | △ | △ | △ | △ | △ | △ | △ | △ |
| Speed control,the two control | DS | △ | △ | △ | △ | △ | △ | △ | △ | △ |
7.Series
| Size | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 |
| 10 Series | √ | √ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ |
| 20 Series | ▲ | ▲ | √ | √ | √ | √ | √ | √ | ▲ |
| 30 Series | ▲ | ▲ | √ | √ | √ | √ | √ | √ | △ |
8.Direction of rotation
| Viewed on shaft end | clockwise | R |
| anti-clockwise | L |
9.Seals
| Nitrile rubber NBR(DIN 1629) | P |
| Fluorine rubber FRM(DIN ISO 1629) | V |
10.Shaft end
| Keyed parallel shaft DIN 6885 | P |
| Splined shaft DIN 5480 | Z |
√=available △=in preparation ▲=not available
11.Mounting flange
| Size | 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | |
| IS04 hole | √ | √ | √ | √ | √ | √ | √ | √ | ▲ | B |
| IS08 hole | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | △ | H |
12.Oil port B & S position
| 40 | 71 | 125 | 180 | 250 | 300 | 355 | 370 | 500 | ||
| Oil port B and S are at the side of SAE,the angle of 90°,with fixed thread | √ | √ | √ | √ | √ | √ | √ | √ | △ | 13 |
| Secondary pressure oil port B1 is at the opposite of port B. they should be jammed with flanges in supply | √ | √ | √ | √ | √ | √ | √ | √ | △ | 25 |
Complete shaft drive
| No auxiliary pumps,No complete shaft drive | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| Complete shaft drive can be connected to the piston,the gear pumps or the radial piston pumps | ||||||||||||
| Flange | shaft sleeve/shaft | connectable | ||||||||||
| ISO 125,4-hole | Spline shaft 32x2x30x14x9g | A4VSO/H/G 40 | √ | √ | √ | √ | √ | √ | √ | √ | △ | K33 |
| S0 140,4-hole | Spline shaft 40x2x30x18x9g | A4VSO/H/G 71 | ▲ | √ | √ | √ | √ | √ | √ | √ | △ | K33 |
| S0 160,4-hole | Spline shaft 50x2x30x24x9g | A4VS0/H/G 125 | ▲ | ▲ | √ | √ | √ | √ | √ | √ | △ | K34 |
| IS0 160.4-hole | Spline shaft 50x2x30x24x9g | A4VSO/G 180 | ▲ | ▲ | ▲ | √ | √ | √ | √ | √ | △ | K34 |
| ISO 224,4-hole | Spline shaft 60x2x30x28x9g | A4VSO/H/G 250 | ▲ | ▲ | ▲ | ▲ | √ | √ | √ | √ | △ | K35 |
| ISO 224,4-hole | Spline shaft 70x3x30x22x9g | A4VSO/G 355 | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | √ | √ | △ | K77 |
| IS0315,8-hole | Spline shaft 80x3x30x25x9g | A4VSO/G 500 | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | ▲ | △ | K43 |
| IS0 80,2-hole | Spline 3/4" 19-4(SAE A-B) | A10VSO18 | △ | △ | √ | √ | √ | △ | △ | △ | △ | KB2 |
| S0 100,2-hole | Spline 7/8" 22-4(SAE B) | A10VSO28 | √ | √ | √ | √ | √ | √ | √ | √ | △ | KB3 |
| S0 100,2-hole | Spline 1" 25-4(SAE B-B) | A10VS045 | ▲ | △ | √ | √ | √ | √ | △ | △ | △ | KB4 |
| ISO 125.2-hole | Spline 1 1/4" 32-4(SAE C) | A10VS071 | ▲ | △ | √ | √ | √ | √ | △ | △ | △ | KB5 |
| ISO 125.2-hole | Spline 1 1/2" 38-4(SAE C-C) | A10VS0 100 | ▲ | ▲ | √ | √ | √ | √ | △ | △ | △ | KB6 |
| IS0 180,4-hole | Spline1 3/4" 44-4(SAE D) | A10VSO 140 | ▲ | ▲ | ▲ | △ | √ | √ | √ | △ | △ | KB7 |
| 82-2 (SAE A,2-hole) | Spline5/8" 16-4(SAE A) | G2/GC2/GC3-1X | √ | √ | √ | √ | √ | √ | √ | √ | △ | K01 |
| 82-2 (SAE A,2-hole) | Spline3/4" 19-4(SAE A-B) | A10VSO18 | √ | √ | √ | √ | √ | √ | √ | √ | △ | K52 |
| 101-2 (SAE B,2-hole) | Spline 7/8" (SAE B) | G3 | √ | √ | √ | √ | √ | √ | √ | √ | △ | K02 |
| 101-2 (SAE B) | Spline25-4(SAE B-B) | GC4-1X.A10V045 | ▲ | ▲ | √ | √ | √ | √ | √ | √ | △ | K04 |
| 127-2(SAE C) | Spline32-4(SAE C) | A10VO71 | ▲ | ▲ | √ | √ | √ | △ | △ | △ | △ | K07 |
| 101-2 (SAE B) | Spline32-4(SAE C) | GC5-1X | ▲ | ▲ | √ | √ | √ | △ | △ | △ | △ | K06 |
| 127-2(SAE C) | Spline38-4(SAE C-C) | GC6-1X,A10VO 100 | ▲ | ▲ | √ | √ | √ | △ | △ | △ | △ | K24 |
| 152-4 (SAE D) | Spline44-4(SAE D) | A10VO 140 | ▲ | ▲ | ▲ | √ | √ | △ | △ | △ | △ | K17 |
| 063,metric 4-hole | Shaft with key025 | R4 | √ | √ | √ | √ | √ | △ | △ | △ | △ | K57 |
| 101-2(SAE B) | 22-4(SAE B) | G4,A10VO 28 | √ | √ | √ | √ | √ | √ | √ | △ | △ | K68 |
| Bandpass shaft,no sleeve,without reducing flange. | √ | √ | √ | √ | √ | √ | √ | √ | △ | K99 | ||
√=available △=in preparation ▲=not available
Technical data
Standard rotary group version
| Size | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 7505) | 1000 | ||
| Geometric displacement
per revolution |
Vg max | cm3 | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 750 | 1000 | |
| Rotational speed
maximum1) |
at Vg max2) | nnom | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | 1500 | 1320 | 1200 | 1500 | 1000 |
| at Vg ≤ Vg max3) | nmax | rpm | 3200 | 2700 | 2200 | 2100 | 1800 | 1700 | 1600 | 1500 | 1500 | 1200 | |
| Flow | at nnom and Vg max | qv | I/min | 104 | 156 | 225 | 324 | 375 | 533 | 660 | 900 | 1125 | 1000 |
| at 1500 rpm | qv | I/min | 60 | 107 | 186 | 270 | 375 | 533 | 5816) | 7706) | 1125 | - | |
| Power | With nnom, Vg max
and Δp = 350 bar |
P | kW | 61 | 91 | 131 | 189 | 219 | 311 | 385 | 525 | 656 | 583 |
| at 1500 rpm | P | kW | 35 | 62 | 109 | 158 | 219 | 311 | 3396) | 4496) | 656 | - | |
| Torque | at Vg max
and Δp = 350 bar2) |
Mmax | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 4174 | 5565 |
| and Δp = 100 bar2) | M | Nm | 64 | 113 | 199 | 286 | 398 | 564 | 795 | 1193 | 1193 | 1590 | |
| Rotary stiffness of
drive shaft |
Shaft end P | c | kNm/rad | 80 | 146 | 260 | 328 | 527 | 800 | 1145 | 1860 | 1860 | 2730 |
| Shaft end Z | c | kNm/rad | 77 | 146 | 263 | 332 | 543 | 770 | 1136 | 1812 | 1812 | 2845 | |
| Moment of inertia | JTW | Kgm2 | 0.0049 | 0.0121 | 0.03 | 0.055 | 0.0959 | 0.19 | 0.3325 | 0.66 | 0.66 | 1.20 | |
| Maximum angular acceleration4) | α | rad/s2 | 17000 | 11000 | 8000 | 6800 | 4800 | 3600 | 2800 | 2000 | 2000 | 1450 | |
| Case volume | V | L | 2 | 2.5 | 5 | 4 | 10 | 8 | 14 | 19 | 22 | 27 | |
| Weight (without through drive) approx. | m | kg | 39 | 53 | 88 | 102 | 184 | 207 | 320 | 460 | 490 | 605 | |
High-speed rotary group version
| Size | NG | 71 | 250 | 355 | 500 | ||
| Displacement, geometric, per revolution | Vg max | cm3 | 71 | 250 | 355 | 500 | |
| Rotational speed
maximum1) |
at Vg max | nnom | rpm | 3000 2)7)8) | 19002) | 17002) | 15002) |
| at Vg ≤ Vg max | nmax | rpm | - | 21003) | 19003) | 18003) | |
| Flow | at nnom and Vg max | qv | I/min | 213 7)8) | 475 | 604 | 750 |
| Power | at nnom, Vg max
and Δp = 350 bar |
P | kW | 124 | 277 | 352 | 437 |
| Torque | at Vg max
and Δp = 350 bar |
Mmax | Nm | 395 | 13912) | 19762) | 27832) |
| Rotary stiffness of
drive shaft |
Shaft end P | c | kNm/rad | 146 | 527 | 800 | 1145 |
| Shaft end Z | c | kNm/rad | 146 | 543 | 770 | 1136 | |
| Moment of inertia | JTW | Kgm2 | 0.0121 | 0.0959 | 0.19 | 0.3325 | |
| Maximum angular acceleration4) | α | rad/s2 | 11000 | 4800 | 3600 | 2800 | |
| Case volume | V | L | 2.5 | 10 | 8 | 14 | |
| Weight (without through drive) approx. | m | kg | 53 | 184 | 207 | 320 | |
1) The values are applicable:
-to the optimum viscosity range from Vopt = 36 to 16 mm2/s
- with hydraulic fluid based on mineral oils
2)The values apply at absolute pressure Pabs = 1 bar at suction ports.
3) Maximum rotational speed (speed limit) when increasing the inlet pressure Pabs at suction ports and Vg < Vg max, see diagram on page 9.
4)The data are valid for values between the minimum required and maximum permissible rotational speed. Valid for external excitation(e.g. diesel engine 2 to 8 times rotary frequency; cardan shaft twice the rotary frequency). The limit value is only valid for a single pump. The load capacity of the connecting parts must be considered.
5) with charge pump (A4VSLO)
6) At Vg < Vgmax
7) If Vg > 30% (depending on speed dee diagram"High Speed NG71")
8) For suction pressure < 1 bar see diagram Maximum rotational speed (speed limit) no rotational speed increase possible when the inlet pressure increases.
Maximum permissible speed (speed limit)(Ps abs = Inlet pressure [bar)

Maximal permissible speed at High Speed size 71

Determining the characteristics
| Flow | qv=(Vg ∙ n ∙ ηv) / 1000 | I/min |
| Torque | M=(Vg ∙ Δp) / 20 ∙ π ∙ ηhm | Nm |
| Power | P=(2π ∙ M ∙ n)/60000=(qv ∙ Δp)/600 ∙ ηt | kW |
Key
Vg = Displacement per revolution in [cm3]
Δp = Differential pressure [bar]
n = Rotational speed [rpm]
ηv = Volumetric efficiency
ηhm = Hydraulic-mechanical efficiency
ηt = Total efficiency (ηt= ηv*ηhm)
Notices
▶Theoretica values, without efficiency and tolerances;values rounded
▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. We recommend testing the loads by means of experiment or calculation / simulation and comparison with the permissible values.
▶Special requirements apply in the case of belt drives.Please contact us.
Permissible radial and axial forces of the drive shafts
| Size | NG | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 7501) | 1000 | ||
| Radial force,
maximum |
![]() |
Fq max | N | 1000 | 1200 | 1600 | 2000 | 2000 | 2200 | 2500 | 3000 | 3500 |
| Maximum axial force | ![]() |
±Fax max | N | 600 | 800 | 1000 | 1400 | 1800 | 2000 | 2000 | 2200 | 2200 |
Permissible input and through-drive torques
| Size | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 750 | 1000 | |||
| Torque at Vg max and Δp = 350 bar1) | Mmax | Nm | 223 | 365 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 5565 | |
| Maximum input torque on drive shaft2) | ||||||||||||
| Splined shaft Z | ME max | Nm | 446 | 790 | 1392 | 2004 | 2782 | 3952 | 5566 | 8348 | 11130 | |
| Shaft key P | ME max | Nm | 380 | 700 | 1392 | 1400 | 2300 | 3557 | 5200 | 7513 | 9444 | |
| Maximum through-drive torque | ||||||||||||
| Splined shaft Z | MD max | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 4174 | 5565 | |
| Shaft key P | MD max | Nm | 157 | 305 | 696 | 398 | 909 | 1581 | 2417 | 3339 | 3879 | |
Distribution of torques

| Torque at 1st pump | M1 |
| Torque at 2nd pump | M2 |
| Torque at 3rd pump | M3 |
| Input torque | ME=M1+M2+M3 |
| ME < ME max | |
| Through-drive torque | MD=M2+M3 |
| MD < MD max |
1)Efficiency not considered
2)For drive shafts with no radial force
