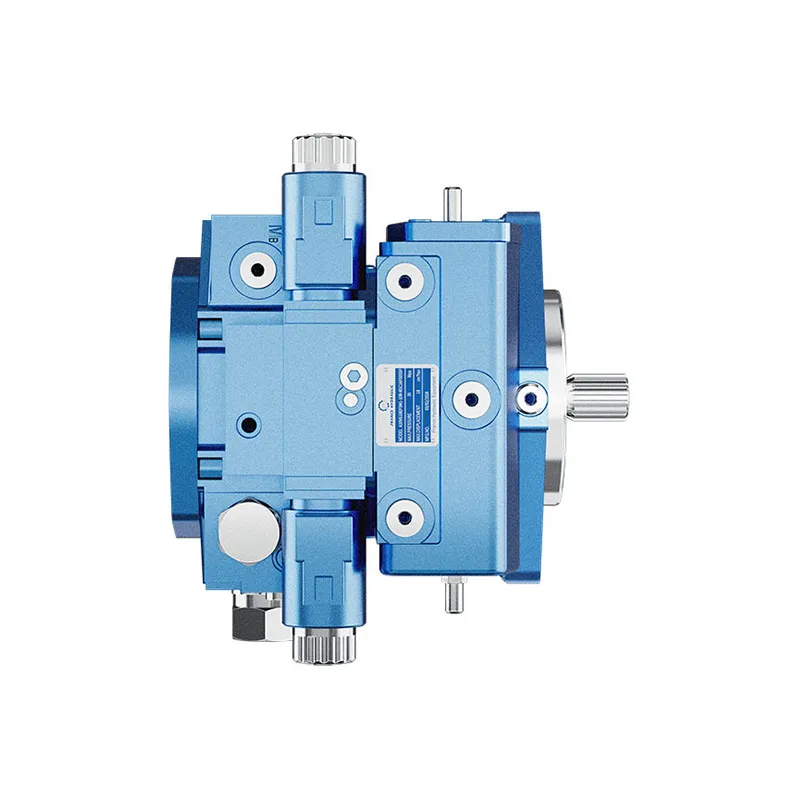

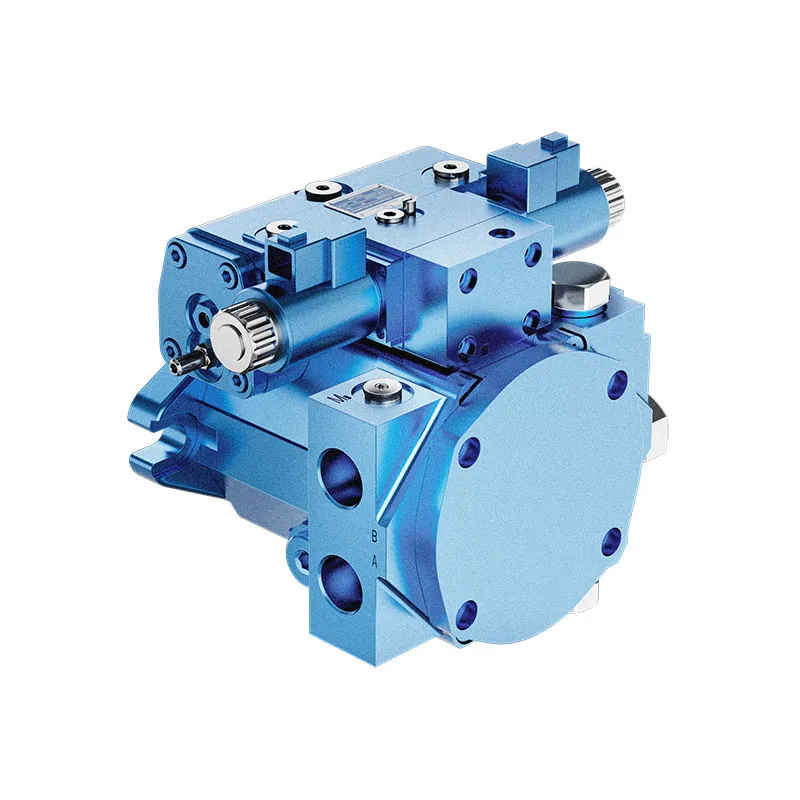

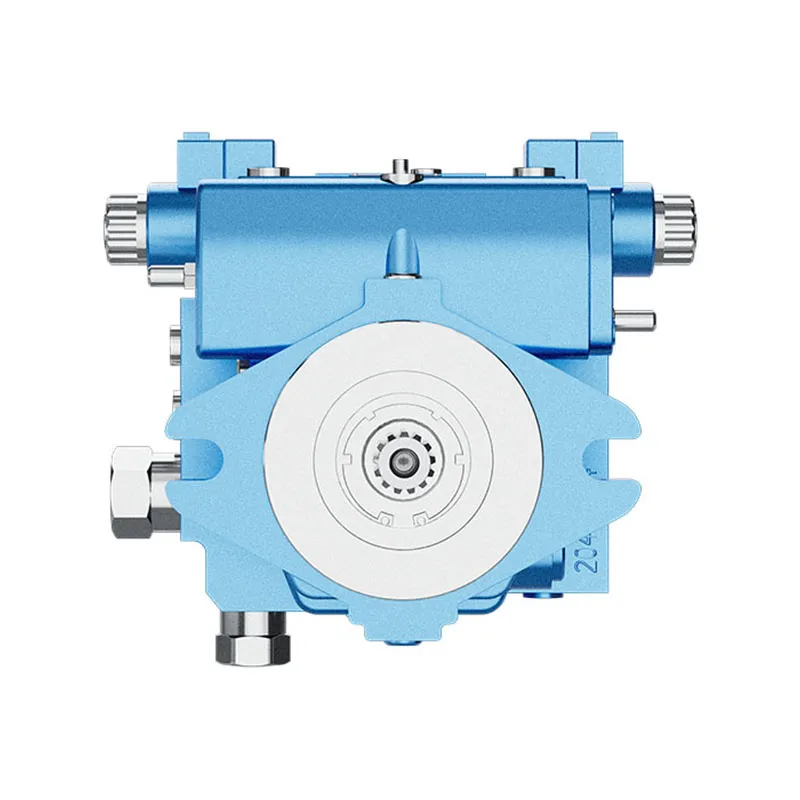

Variable Displacement Piston Pump A10VG

Type code

01	02	03	04	05	06	07	08	09		10	11		12	13	14	15	16	17	18	19	20	21	22
A10V	G								/	10		-	N		C

Axial piston unit

01

Swashplate design, variable,nominal pressure 300 bar, maximum pressure 350 bar

A10V

Operating mode

02

Pump, closed circuit

G

Size (NG)

03

Geometric displacement, see "Technical data" on page 8

18

28

45

63

Control device

				18	28	45	63
04	Proportional control hydraulic	pilot-pressure related, with inlet filtration in P and X1/X2		●	●	●	●	HD3
		mechanical servo		●	●	●	●	HW
	Automatic control, speed related1)		U=12V	-	●	●	●	DA1
			U=24V	-	●	●	●	DA2
	Hydraulic control	direct operated		●	●	●	●	DG
	Proportional control, electric	with proportional solenoid with inlet filtration in P and X1/X2	U=12V	●	●	●	●	EP3
			U=24V	●	●	●	●	EP4
	Two-point control, electric	with switching solenoid	U=12V	●	●	●	●	EZ1
			U=24V	●	●	●	●	EZ2
	Electric control, direct operated two pressure reducing valves (FTDRE)		U=12V	-	●	●	-	ET3
			U=24V	-	●	●	-	ET4
	Electric pressure controller, negative control, with 4/2 directional valve and one pressure reducing valve1)	de-energized, stroking chamber is controlled via X1	U=24V	-	●	●	●	ED2
		de-energized, stroking chamber is controlled via X2	U=24V	-	●	●	●	ED4

Pressure cut-off

		18	28	45	63
05	Without pressure cut-off (without code)	●	●	●	●
	With pressure cut-off	-	●	●	●	D

Neutral position switch

		18	28	45	63
06	Without neutral position switch (without code)	●	●	●	●
	Neutral position switch with DEUTSCH connector (only for HW control)	●	●	●	●	L

Mechanical stroke limiter²⁾

		18	28	45	63
07	Without mechanical stroke limiter (without code)	●	●	●	●
	Mechanical stroke limiter, externally adjustable	●	●	●	●	L

Stroking chamber pressure port²⁾

		18	28	45	63
08	Without stroking chamber pressure port X3, X4(without code)	●	●	●	●
	Stroking chamber pressure portX3, X4	●	●	●	●	L

•= available    ○= on request    -= not available     = preferred program

1) Only possible in combination with pressure cut-off(DA.D..., ED.D...)

2) Not available in combination with DG control device

DA control valve for NG28 ... 63

			HD	HW	DG	DA	EP	EZ	ET	ED
09	Without DA control valve		●	●	●	-	●	●	●	●	1
	DA control valve, fixed setting		●	●	●	●	●	-	-	-	2
	DA control valve, mechanically adjustable, with position lever	direction of actuation, counter-clockwise	●	●	●	●	●	-	-	-	3L
		direction of actuation, clockwise	●	●	●	●	●	-	-	-	3R
	DA control valve, fixed setting, ports for pilot control device		●	●	-	●	●	-	-	-	7
	DA control valve, fixed setting, and hydraulic inch valve mounted,control with mineral oil		-	-	-	●	-	-	-	-	8

Series

10

Series 1, index 0

10

Direction of rotation

			18	28	45	63
11	Viewed on drive shaft	clockwise	●	●	●	●	R
		counter-clockwise	●	●	●	●	L

Sealing material

		18	28	45	63
12	NBR (nitrile rubber), shaft seal made of FKM (fluoroelastomer)	●	●	●	●	N

Drive shaft

			18	28	45	63
13	Splined shaft ANSI B92.1a-1976	for single pump	●	●	●	●	S
		for combination pump	●	●	●	●	T

Mounting flange

			18	28	45	63
14	SAE J744	2-hole	●	●	●	●	C

Working port

15	Port thread: Metric with profile sealing ring sealing according to DIN 3852 Fastening thread at the SAE working port and through drive: Metric according to DIN 13		18	28	45	63
	SAE working port A and B, same side left	suction port S bottom	-	●	●	●	10
	SAE working port A and B, same side right	suction port S at top (externally piped up, except for DG)	-	●	●	●	13
	Port and working port thread: Metric with profile sealing ring sealing according to DIN 3852 Fastening thread at the through drive: Metric according to DIN 13		18	28	45	63
	Threaded port A and B, same side right	suction port S bottom	●	-	-	-	16

Boost pump

			18	28	45	63
16	Without integrated boost pump	without through drive	●	●	●	●	N
		with through drive	●	●	●	●	K
	Integrated boost pump	with and without through drive	●	●	●	●	F

•= available    ○= on request    -= not available     = preferred program

Through drive³⁾

				18	28	45	63
17	Without through drive, only for version N and F (position 16)			●	●	●	●	00
	Flange SAE J744	Hub for splined shaft4)
	82-2 (A)	5/8 in	9T 16/32DP	●	●	●	●	01
		3/4 in	11T 16/32DP	-	●	●	●	52
	101-2(B)	7/8 in	13T 16/32DP	●	●	●	●	02
		1in	15T 16/32DP	-	●	●	●	04
	127-2 (C)	1 1/4 in	14T 12/24DP	-	-	-	●	07

High-pressure relief valve

		Setting range ΔpHD		18	28	45	63
18	High-pressure relief valve direct operated, fixed setting	250 ... 320 bar	without bypass	●	●	●	●	3
			with bypass	●	●	●	●	5
		100 ... 250 bar	without bypass	-	●	●	●	4
			with bypass	-	●	●	●	6

Filtration boost circuit/external boost pressure supply

		18	28	45	63
19	Filtration in the boost pump suction line	●	●	●	●	S
	Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and G (Fa))	-	●5)	●5)	●	D
	External boost pressure supply (on version without integrated boost pump - N, K)	●	●	●	●	E

Connector for solenoids⁶⁾

			18	28	45	63
20	Without connector (without code), only with purely hydraulic controls		●	●	●	●
	DEUTSCH molded connector 2-pin, DT04-2P	without suppressor diode	●	●	●	●	P
		with suppressor diode (only for EZ, DA and ED switching solenoid)	●	●	●	●	Q

Flushing valve

			18	28	45	63
21	Without flushing valve (without code)		●	●	●	●
	Flushing valve	SAE connection diagram, metric mounting	●	●	●	●	1
		metric threaded ports	●	●	●	●	3

Standard/special version

22	Standard version	without code
	Special version		-S

•= available   ○= on request   -= not available     = preferred program

Notice

▶Note the project planning notes on page 59!

▶In addition to the type code, please specify the relevant technical data when placing your order.

▶Please note that not all type code combinations are available although the individual functions are marked as being available.

3)Specifications for version with integrated boost pump,please contact us for version without boost pump

4)Hub for splined shaft according to ANSI B92.1a-1976(drive shaft allocation according to SAE J744)

5) Pressure filtration is not possible in connection with DA control valve

6) Connectors for other electric components may deviate

Technical data

Size			NG		18	28	45	63
Geometric displacement, per revolution
	variable pump		Vg max	cm3	18	28	46	63
	boost pump (at p = 20 bar)		Vg Sp	cm3	5.5	6.1	8.6	14.9
Rotational speed1)	maximum at Vg max		nnom	min-1	4000	3900	3300	3000
	limited maximum2)		nmax1	min-1	4850	4200	3550	3250
	intermittent maximum3)		nmax2	min-1	5200	4500	3800	3500
	minimum		nmin	min-1	500	500	500	500
Flow	at nnom and Vg max		qv	I/min	72	109	152	189
Power4)	at nnom,  Vg max and	Δp =300 bar	P	kW	36	54.6	75.9	94.5
Torque4)	with Vg max and	Δp =300 bar	M	Nm	86	134	215	301
		Δp =100 bar	M	Nm	28.6	44.6	72	100.3
Rotary stiffness of drive shaft		S	c	kNm/rad	20.28	32.14	53.40	78.37
		T	c	kNm/rad	-	-	73.80	92.37
Moment of inertia of the rotary group			JTW	kgm2	0.00093	0.0017	0.0033	0.0056
Maximum angular acceleration5)			α	rad/s2	6800	5500	4000	3300
Case volume			V	l	0.45	0.64	0.75	1.1
Weight (without through drive) approx.6)			m	kg	18	25	27	39

Notice

▶Theoretical values, without efficiency and tolerances;values rounded

▶Operation above the maximum values or below the minimum values may result in a loss of function,a reduced service life or in the destruction of the axial piston unit. Prance recommends testing the loads by means of experiment or calculation /simulation and comparison with the permissible values.

Determining the operating characteristics

Flow	qv=(Vg ∙ n ∙ ηv) / 1000	I/min
Torque	M=(Vg ∙ Δp) /(20 ∙ π ∙ ηhm)	Nm
Power	P=(2π ∙ M ∙ n)/60000=(qv ∙ Δp)/(600 ∙ ηt)	kW

Key

V_g  Displacement per revolution in [cm³]

Δp  Differential pressure [bar]

n   Rotational speed [rpm]

η_v   Volumetric efficiency

η_hm  Hydraulic-mechanical efficiency

η_t   Total efficiency (η_t= η_v*η_hm)

1)The values are applicable:

- for the optimum viscosity range from Vopt = 36 ... 16 mm²/s

- for hydraulic fluid based on mineral oils (for HF hydraulic fluids,observe the technical data in 90225)

2)Valid at half corner power (e.g. at Vg max and pi/2)

3) Valid at Ap = 70 ... 150 bar or Ap < 300 bar and t < 0.1 s

4)Without boost pump

5)The data are valid for values between the minimum required and maximum permissible rotational speed.

Valid for external excitation (e. g. diesel engine 2 to 8 times rotary frequency; cardan shaft twice the rotary frequency).

The limit value is only valid for a single pump.

The load capacity of the connection parts must be considered.

6)Weight may vary by equipment.

Permissible radial and axial loading of the drive shaft

Size		NG		18	28	28	45	45	63	63
Drive shaft			in	7/8	1	1 1/4	1	1 1/4	1 1/4	1 3/8
Maximum radial force at distance a (to the shaft collar)		Fq max	N	1300	2500	2500	3600	3600	5000	5000
		a	mm	16.5	17.5	17.5	17.5	17.5	17.5	17.5
Maximum axial force		+Fax max	N	973	987	987	1500	1500	2200	2200
		-Fax max	N	973	987	987	1500	1500	2200	2200

Notice

▶The axial and radial loading generally influence the bearing service life.

▶Special requirements apply in the case of belt drive and cardan shaft. Please contact us.

Permissible input and through-drive torques

Size		NG		18	28	45	63
Torque at Vg max and Δp = 300 bar1)		M	Nm	86	134	220	301
Maximum input torque on drive shaft2)
ANSI B92.1a (SAE J744)	S	ME max	Nm	192	314	314	602
			in	7/8	1	1	1 1/4
	T	ME max	Nm	-	602	602	970
			in	-	1 1/4	1 1/4	1 3/8
Maximum through-drive torque		ME max	Nm	112	220	314	439

Distribution of torques

Torque at 1st pump	M1
Torque at 2nd pump	M2
Torque at 3rd pump	M3
Input torque	ME=M1+M2+M3
	ME < ME max
Through∙drive torque	MD=M2+M3
	MD < MD max

1) Efficiency not considered

2) For drive shafts free of radial force
