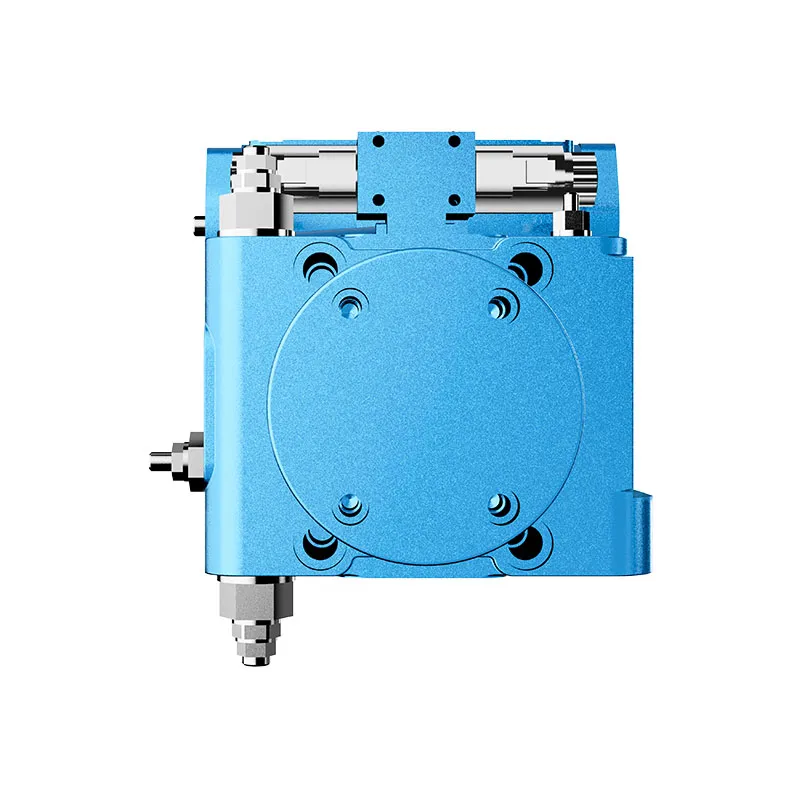

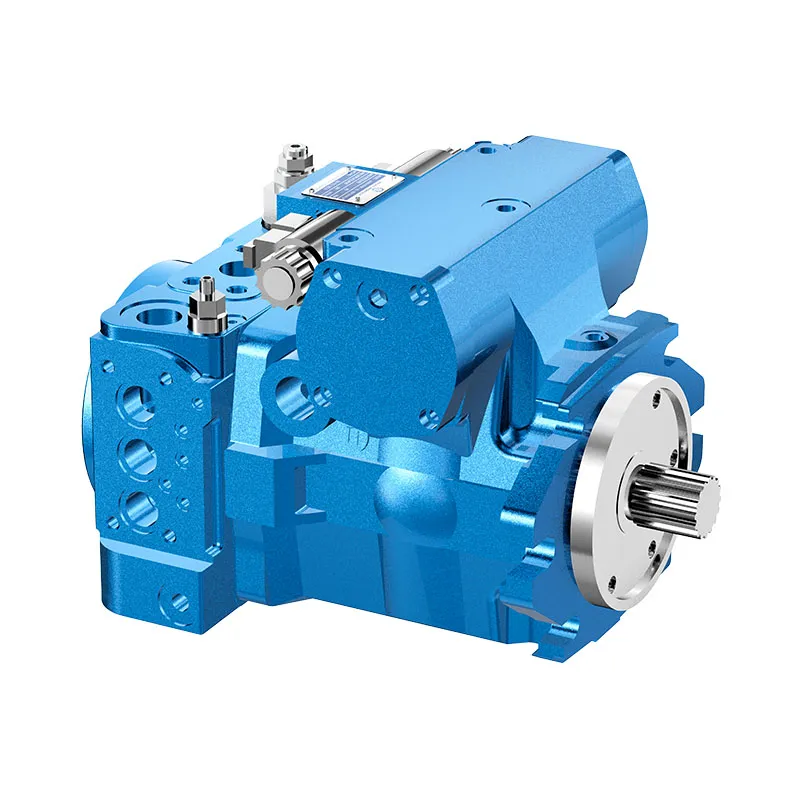

AA4VG Closed Circuit Variable Piston Pump
The AA4VG pump is offered for closed-circuit hydrostatic drives with integrated auxiliary oil supply. Its AA4VG code and interface data must be checked independently when comparing an A4VG configuration, even where nominal displacement appears similar.
- Integrated auxiliary supply
- Flow reverses through neutral
- Adjustable pressure cut-off
- Through-drive configuration requires matching
PRANCE HYDRAULIC · PRODUCT SERIES
Axial piston; variable swashplate · Closed circuit
The AA4VG pump is offered for closed-circuit hydrostatic drives with integrated auxiliary oil supply. Its AA4VG code and interface data must be checked independently when comparing an A4VG configuration, even where nominal displacement appears similar.
Model

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.
Configuration review · Technical documentation · Product selection
Product Details
- Integrated auxiliary supply
- Flow reverses through neutral
- Adjustable pressure cut-off
- Through-drive configuration requires matching
CATEGORIES: Piston Pump, Variable Displacement Pump
AA4VG Features & Application
Integrated auxiliary supply
Account for pilot or replenishment demand and the relevant pressure limits. Include filtration and the return or drain route in the circuit review.
Flow reverses through neutral
Review combined drive torque and simultaneous demand, including any additional pump connected to the drive.
Adjustable pressure cut-off
Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.
Through-drive configuration requires matching
Review combined drive torque and simultaneous demand, including any additional pump connected to the drive.
AA4VG Specifications
| Series / model | AA4VG |
|---|---|
| Product type | AA4VG Closed Circuit Variable Piston Pump |
| Design | Axial piston; variable swashplate |
| Circuit / selection | Closed circuit |
| Published nominal sizes | 28, 40, 56, 71, 90 and 125 |
| Circuit | Closed circuit; verify charge and control requirements |
AA4VG Selection & Configuration
The AA4VG pump is offered for closed-circuit hydrostatic drives with integrated auxiliary oil supply. Its AA4VG code and interface data must be checked independently when comparing an A4VG configuration, even where nominal displacement appears similar.
Provide the complete machine loop, charge requirements and control specification. Confirm shaft and port standards, pressure cut-off settings and the torque capacity of any through-drive assembly before approving a replacement.

Your Application.
The Right Configuration.
Hydraulic pumps · Hydraulic motors · Hydraulic valves
Send the AA4VG nameplate, operating requirements and installation drawing for a configuration review before quoting.
- Model review — send the full model code or an existing nameplate photograph.
- Interface matching — confirm shaft, mounting flange, rotation and ports.
- Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
- Documentation — request the relevant product data and drawings for your review.

AA4VG Buying Guide
Use this sequence to prepare the AA4VG configuration for review and quotation.
- Define required flow at the actual drive speed and continuous pressure.
- Identify peak pressure, duration and the work cycle.
- Confirm the selected displacement control and any auxiliary-drive requirement.
- Match rotation viewed from the shaft end, shaft, flange and ports.
- Review inlet conditions, drain routing and the installation envelope.
- Confirm fluid, viscosity, temperature, filtration and seals.
- Approve the complete model, control, drawing, quantity and delivery terms.

Selection, Documentation & Project Support

Selection Support
Learn more →Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.
Flow · Pressure · Speed · Interfaces

Technical Resources
Learn more →Review product documentation, model codes and technical data before finalizing the specification.
Datasheets · Model codes · Drawings

Project Inquiries
Learn more →Send your required model, quantity, application and project requirements to discuss your inquiry.
Product inquiries · Configuration review
Configuration, Quantity & Delivery
Confirm the complete AA4VG code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.
Discuss Your AA4VG Application
Send the full model code, operating duty, installation details and quantity.
Request a AA4VG QuotationAA4VG Questions Before Ordering
What type of product is the AA4VG?
AA4VG Closed Circuit Variable Piston Pump. Design: Axial piston; variable swashplate. Closed circuit. Confirm the complete order code for the offered version.
Can a similar pump replace the AA4VG?
Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.
Which data is needed for a quotation?
Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.
AA4VG Technical Data & Documents
View AA4VG catalog data and operating conditions
Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.
Technical data
| Size | NG | 28 | 40 | 56 | 71 | 90 | 125 | |||
| Displacement, geometric, per revolution | Vg max | in3 | 1.71 | 2.44 | 3.42 | 4.33 | 5.49 | 7.63 | ||
| variable pump | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | |||
| boost pump (at p = 290 psi (20 bar)) | Vg Sp | in3 | 0.37 | 0.52 | 0.71 | 1.20 | 1.20 | 1.73 | ||
| cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | ||||
| Rotational speed1) | maximum at Vg max | nnom | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2950 | |
| limited, maximum2) | nmax1 | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | ||
| intermittent, maximum3) | nmax2 | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | ||
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Flow | at nnom and Vg max | qv | gpm | 31.4 | 42.3 | 53.4 | 61.8 | 72.6 | 94 | |
| I/min | 119 | 160 | 202 | 234 | 275 | 356 | ||||
| Power4) | at nnom, Vg max and | Δp = 5800 psi | P | hp | 106 | 143 | 180 | 209 | 245 | 319 |
| Δp =400 bar | P | kW | 79 | 107 | 134 | 156 | 183 | 238 | ||
| Torque4) | at Vg max and | Δp =5800 psi | T | Ib-ft | 131 | 188 | 263 | 333 | 423 | 587 |
| Δp =400 bar | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | ||
| Ap =1450 psi | T | lb-ft | 33 | 47 | 66 | 83 | 105 | 147 | ||
| Ap =100 bar | T | Nm | 45 | 64 | 89 | 113 | 143 | 199 | ||
| Rotary stiffness of drive shaft | S | c | lb-ft/rad | 23159 | 50892 | 59595 | 72871 | 116609 | 161010 | |
| kNm/rad | 31.4 | 69 | 80.8 | 98.8 | 158.1 | 218.3 | ||||
| T | c | lb-ft/rad | – | – | 70068 | 89171 | – | 185939 | ||
| kNm/rad | – | – | 95 | 120.9 | – | 252.1 | ||||
| U | c | lb-ft/rad | – | 37468 | – | – | 79362 | – | ||
| kNm/rad | – | 50.8 | – | – | 107.6 | – | ||||
| Moment of inertia for rotary group | JTW | lbs-ft2 | 0.0522 | 0.0902 | 0.1566 | 0.2302 | 0.3536 | 0.5505 | ||
| kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | ||||
| Maximum angular acceleration5) | α | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | ||
| Case volume | V | gal | 0.24 | 0.29 | 0.40 | 0.34 | 0.40 | 0.55 | ||
| I | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | ||||
| Weight (without through drive) approx. | m | Ibs | 64 | 68 | 84 | 110 | 132 | 176 | ||
| Kg | 29 | 31 | 38 | 50 | 60 | 80 | ||||
Notice
▶Theoretical values, without efficiency and tolerances;values rounded ▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. Bosch Rexroth recommend testing the loads by means of experiment or calculation / simulation and comparison with the permissible values.Determining the operating characteristics
Key
Vg Displacement per revolution [in3(cm3)] Δp Differential pressure [psi(bar)] n Rotational speed [rpm] ηv Volumetric efficiency ηhm Hydraulic-mechanical efficiency ηt Total efficiency (ηt= ηv*ηhm) 1)The values are applicable: – for the optimum viscosity range from Vopt = 170 to 82 SUS(36 to 16 mm2/s) – for hydraulic fluid based on mineral oils (for HF hydraulic fluids,observe the technical data in 90225) 2)Valid at half corner power (e.g. at Vg max and pN/2) 3) Valid at Δp = 1000 to 2200 psi (70 to 150 bar) or Δp < 4350 psi(300 bar) and t < 0.1 s 4)Without boost pump 5)The data are valid for values between the minimum required and maximum permissible rotational speed. Valid for external excitation (e.g. diesel engine 2 to 8 times rotary frequency, cardan shaft twice the rotary frequency). The limit value is only valid for a single pump. The load capacity of the connecting parts must be considered.Permissible radial and axial forces on the drive shaft
▼Splined shaft ANSI B92.1a| Size | NG | 28 | 40 | 40 | 56 | 56 | 71 | ||
| Drive shaft | in | 1 | 1 | 1 1/4 | 1 1/4 | 1 3/8 | 1 1/4 | ||
| Maximum radial force at distance a(from shaft collar) | ![]() |
Fq max | lbf | 671 | 958 | 766 | 1073 | 975 | 1360 |
| N | 2983 | 4261 | 3409 | 4772 | 4338 | 6050 | |||
| a | in | 0.75 | 0.75 | 0.94 | 0.94 | 0.94 | 0.94 | ||
| mm | 19 | 19 | 24 | 24 | 24 | 24 | |||
| Maximum axial force | ![]() |
+Fax max | lbf | 350 | 477 | 477 | 654 | 654 | 954 |
| N | 1557 | 2120 | 2120 | 2910 | 2910 | 4242 | |||
| -Fax max | lbf | 94 | 198 | 198 | 355 | 355 | 620 | ||
| N | 417 | 880 | 880 | 1490 | 1490 | 2758 | |||
| Size | NG | 71 | 90 | 90 | 125 | 125 | ||
| Drive shaft | in | 1 3/8 | 1 1/4 | 1 3/4 | 1 3/4 | 2 | ||
| Maximum radial force at distance a(from shaft collar) | ![]() |
Fq max | lbf | 1236 | 1724 | 1232 | 1711 | 1497 |
| N | 550 | 7670 | 5478 | 7609 | 6658 | |||
| a | in | 0.94 | 0.94 | 1.32 | 1.32 | 1.57 | ||
| mm | 24 | 24 | 33.5 | 33.5 | 40 | |||
| Maximum axial force | ![]() |
+Fax max | lbf | 954 | 973 | 973 | 1361 | 1361 |
| N | 4242 | 4330 | 4330 | 6053 | 6053 | |||
| -Fax max | lbf | 620 | 600 | 600 | 797 | 797 | ||
| N | 2758 | 2670 | 2670 | 3547 | 3547 | |||
Notice
▶The axial and radial forces generally influence the service life of the bearings. ▶Special requirements apply in the case of belt drive and cardan shaft. Please contact u| Size | NG | 28 | 40 | 56 | 71 | 90 | 125 | |||
| Torque at Vg max and | Δp = 5800 psi1) | T | lb-ft | 131 | 188 | 263 | 333 | 423 | 587 | |
| Δp = 400 bar1) | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | ||
| Maximum input torque at drive shaft2) ANSI B92.1a (SAE J744) | S | TE max | lb-ft | 232 | 444 | 444 | 444 | 1210 | 1210 | |
| Nm | 314 | 602 | 602 | 602 | 1640 | 1640 | ||||
| in | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 3/4 | 1 3/4 | ||||
| T | TE max | lb-ft | – | – | 715 | 715 | – | 1969 | ||
| Nm | – | – | 970 | 970 | – | 2670 | ||||
| in | – | – | 1 3/8 | 1 3/8 | – | 2 | ||||
| U3) | TE max | lb-ft | – | 232 | – | – | 444 | – | ||
| Nm | – | 314 | – | – | 602 | – | ||||
| in | – | 1 | – | – | 1 1/4 | – | ||||
| Maximum through-drive torque4) | TD max | lb-ft | 170 | 232 | 384 | 487 | 606 | 819 | ||
| Nm | 231 | 314 | 521 | 660 | 822 | 1110 | ||||
Distribution of torques
| Input torque | TE=T1+T2+T3 |
| TE < TE max | |
| Through∙drive torque | TD=T2+T3 |
| TD < TD max |
Related Selection Resources
Request a AA4VG Quotation
Tell us your required configuration, quantity and application.
Type code
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | ||
| AA4V | G | D | / | 32 | - | N |
Axial piston unit
| 01 | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (450 bar) | AA4V |
Operating mode
| 02 | Pump, closed circuit | G |
Size(NG)
| 03 | Geometric displacement, see "Technical data" on page 8 | in3/rev. | 1.71 | 2.44 | 3.42 | 4.33 | 5.49 | 7.63 |
| cm3/rev. | 28 | 40 | 56 | 71 | 90 | 125 |
Control device
| 28 | 40 | 56 | 71 | 90 | 125 | |||||
| 04 | Without control module | ● | ● | ● | ● | ● | ● | NV | ||
| Proportional control, hydraulic | Pilot-pressure related p = 87 to 260 psi (6 to 18 bar) | ○ | ○ | ● | ● | ● | ● | HD3 | ||
| Mechanical servo | ● | ● | ● | ● | ● | ● | HW | |||
| Proportional control, electric | U=12V | ● | ● | ● | ● | ● | ● | EP3 | ||
| U=24V | ● | ● | ● | ● | ● | ● | EP4 | |||
| Two-point control, electric | U=12V | ● | ● | ● | ● | ● | ● | EZ1 | ||
| U=24V | ● | ● | ● | ● | ● | ● | EZ2 | |||
| Automatic control, speed related | U=12V | ● | ● | ● | ● | ● | ● | DA1 | ||
| U=24V | ● | ● | ● | ● | ● | ● | DA2 | |||
| Hydraulic control, direct operated | ○ | ○ | ● | ● | ● | ● | DG | |||
| Electric control, direct operated,
two pressure reducing valves |
U=12V | ● | ● | ● | ● | - | - | ET5 | ||
| U=24V | ● | ● | ● | ● | - | - | ET6 | |||
Pressure cut-off
| 05 | Pressure cut-off (standard) | D |
Neutral position switch
| 06 | Without neutral position switch (without code) | ● | |
| Neutral position switch (for HW control only) | ● | L |
Mechanical stroke limiter
| 07 | Without mechanical stroke limiter (without code) | ● | |
| Mechanical stroke limiter, externally adjustable | ● | M |
Stroking chamber pressure port
| 28 | 40 | 56 | 71 | 90 | 125 | |||
| 08 | |Without stroking chamber pressure port X3, X4 (without code) | ● | ● | ● | ● | ● | ● | |
| Stroking chamber pressure port X3, X4 | ○ | ○ | ● | ● | ● | ● | T | |
DA control valve
| NV | HD | HW | DG | DA | EP | EZ | ||||
| 09 | Without DA control valve | ● | ● | ● | ● | - | ● | ● | 1 | |
| DA control valve, fixed setting | ● | ● | ● | ● | ● | - | 2 | |||
| DA control valve, mechanically adjustable with position lever | direction of actuation, clockwise | - | ● | ● | ● | ● | ● | - | 3R | |
| direction of actuation,
counter-clockwise |
- | ● | ● | ● | ● | ● | - | 3L | ||
| DA control valve, fixed setting, ports for pilot control device | - | ○ | ○ | - | ○ | ○ | - | 7 | ||
| DA control valve, fixed setting and
brake inch valve mounted, control with brake fluid |
based on mineral oil | - | - | - | - | ● | - | - | 8 | |
•= available ○= on request -= not available
= preferred program
Series
| 10 | Series 3, index 2 | 32 |
Direction of rotation
| 11 | Viewed on drive shaft | clockwise | R |
| counter-clockwise | L |
Sealing material
| 12 | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
Drive shaft
| 28 | 40 | 56 | 71 | 90 | 125 | ||||
| 13 | Splined shaft
ANSIB92.1a |
for single pump | ● | ● | ● | ● | ● | ● | S |
| for combination pump - 1st pump | _1) | _1) | ● | ● | _1) | ● | T | ||
| only for combination pump -2nd pump | - | ● | - | - | ● | - | U | ||
Mounting flange
| 28 | 40 | 56 | 71 | 90 | 125 | ||||
| 14 | SAEJ744 | 2-hole | ● | ● | ● | - | - | - | C |
| 2+4-hole | - | - | - | ● | ● | ● | F | ||
Working port
| 28 | 40 | 56 | 71 | 90 | 125 | ||||
| 15 | SAE working port A and B, top and bottom | Suction port S bottom | - | ● | ● | ● | ● | ● | 52 |
| SAE working port A and B, top and bottom | Suction port S top | - | ○ | ● | - | - | ○ | 53 | |
| SAE working port A and B, same side right2) | Suction port S bottom | ● | - | - | - | - | - | 60 | |
| SAE working port A and B, same side left2) | Suction port S bottom | - | - | - | ● | - | - | ||
| SAE working port A and B, same side right2) | Suction port S top | - | - | - | - | - | ○ | 63 | |
Boost pump
| 16 | Without integrated boost pump | without through drive | N |
| with through drive | K | ||
| Integrated boost pump | with and without through drive | F |
Through drives3)
| 28 | 40 | 56 | 71 | 90 | 125 | ||||
| 17 | Without through drive, versions N and F (no. 16) only | ● | ● | ● | ● | ● | ● | 00 | |
| Flange SAE J7444) | Hub for splined shaft | ||||||||
| 82-2 (A) | 5/8 in 9T 16/32DP5) | ● | ● | ● | ● | ● | ● | 01 | |
| 101-2 (B) | 7/8 in 13T 16/32DP5) | ● | ● | ● | ● | ● | ● | 02 | |
| 1in 15T 16/32DP5) | ● | ● | ● | ● | ● | ● | 04 | ||
| 127-2 (C)6) | 1 1/4 in 14T 12/24DP5) | - | - | ● | ● | ● | ● | 07 | |
| 152-2/4 (D) | 13/4 in 13T 8/16DP5) | - | - | - | - | - | ● | 69 | |
•= available ○= on request -= not available
= preferred program
1) Standard for combination pump - 1st pump: Shaft S
2) Only possible without attachment filter
3) Specifications for version with integrated boost pump, please contact us for version without boost pump
4) 2 = 2-hole; 4 = 4-hole
5) Hub for splined shaft to ANSI B92.1a
6) NG90 to 125 with additional 4-hole-flange (127-4)
High-pressure relief valve
| Setting range Δp | 28 | 40 | 56 | 71 | 90 | 125 | ||||
| 18 | High pressure relief valve, pilot operated | 1450 to 6100 psi
(100 to 420 bar) |
with bypass | - | - | - | ● | ● | ● | 1 |
| High-pressure relief valve, direct operated,
fixed setting |
3600 to 6100 psi
(250 to 420 bar) |
without bypass | ● | ● | ● | - | - | - | 3 | |
| with bypass | ● | ● | ● | - | - | - | 4 | |||
| 1450 to 3600 bar
(100 to 250 bar) |
without bypass | ● | ● | ● | - | - | - | 5 | ||
| with bypass | ● | ● | ● | - | - | - | 6 | |||
Filtration boost circuit/external boost pressure supply
| 28 | 40 | 56 | 71 | 90 | 125 | |||
| 19 | Filtration in the boost pump suction line | ● | ● | ● | ● | ● | ● | S |
| Filtration in the boost pump pressure line
Ports for external boost circuit filtration (Fe and Fa) |
● | ● | ● | ● | ● | ● | D | |
| Mounted cold start valve and ports for external boost circuit filtration | - | ● | ● | - | - | - | K | |
| Attachment filter with cold start valve | - | ● | ● | ● | ● | ● | F | |
| Attachment filter with cold start valve and visual contamination indicator | - | ● | ● | ● | ● | ● | P | |
| Attachment filter with cold start valve and electric contamination indicator | - | ● | ● | ● | ● | ● | B | |
| External boost pressure supply (version without integrated boost pump - NO0, K...) | ● | ● | ● | ● | ● | ● | E | |
Swivel angle sensor
| 28 | 40 | 56 | 71 | 90 | 125 | |||
| 20 | Without swivel angle sensor (without code) | ● | ● | ● | ● | ● | ● | |
| Electric swivel angle sensor7) | ○ | ○ | ● | ○ | ○ | ○ | R | |
Connector for solenoids8)
| 21 | Without connector (without code), only for purely hydraulic control | ● | ||
| DEUTSCH molded connector, 2-pin | without suppressor diode | ● | P | |
| with suppressor diode (only for EZ and DA) | ● | Q | ||
Standard / special version
| 22 | Standard version | without code | |
| combined with attachment part or attachment pump | -K | ||
| Special version | -S | ||
| combined with attachment part or attachment pump | -SK |
•= available ○= on request -= not available
= preferred program
Notice
▶Note the project planning notes on page 68.
▶In addition to the type code, please specify the relevant technical data when placing your order.
7)Please contact us if the swivel angle sensor is used for control
8) Connectors for other electric components may deviate
Technical data
| Size | NG | 28 | 40 | 56 | 71 | 90 | 125 | |||
| Displacement, geometric, per revolution | Vg max
|
in3 | 1.71 | 2.44 | 3.42 | 4.33 | 5.49 | 7.63 | ||
| variable pump | cm3 | 28 | 40 | 56 | 71 | 90 | 125 | |||
| boost pump (at p = 290 psi (20 bar)) | Vg Sp
|
in3 | 0.37 | 0.52 | 0.71 | 1.20 | 1.20 | 1.73 | ||
| cm3 | 6.1 | 8.6 | 11.6 | 19.6 | 19.6 | 28.3 | ||||
| Rotational speed1) | maximum at Vg max | nnom | rpm | 4250 | 4000 | 3600 | 3300 | 3050 | 2950 | |
| limited, maximum2) | nmax1 | rpm | 4500 | 4200 | 3900 | 3600 | 3300 | 3250 | ||
| intermittent, maximum3) | nmax2 | rpm | 5000 | 5000 | 4500 | 4100 | 3800 | 3450 | ||
| minimum | nmin | rpm | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Flow | at nnom and Vg max | qv | gpm | 31.4 | 42.3 | 53.4 | 61.8 | 72.6 | 94 | |
| I/min | 119 | 160 | 202 | 234 | 275 | 356 | ||||
| Power4) | at nnom, Vg max and | Δp = 5800 psi | P | hp | 106 | 143 | 180 | 209 | 245 | 319 |
| Δp =400 bar | P | kW | 79 | 107 | 134 | 156 | 183 | 238 | ||
| Torque4) | at Vg max and | Δp =5800 psi | T | Ib-ft | 131 | 188 | 263 | 333 | 423 | 587 |
| Δp =400 bar | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | ||
| Ap =1450 psi | T | lb-ft | 33 | 47 | 66 | 83 | 105 | 147 | ||
| Ap =100 bar | T | Nm | 45 | 64 | 89 | 113 | 143 | 199 | ||
| Rotary stiffness of drive shaft | S | c | lb-ft/rad | 23159 | 50892 | 59595 | 72871 | 116609 | 161010 | |
| kNm/rad | 31.4 | 69 | 80.8 | 98.8 | 158.1 | 218.3 | ||||
| T | c | lb-ft/rad | - | - | 70068 | 89171 | - | 185939 | ||
| kNm/rad | - | - | 95 | 120.9 | - | 252.1 | ||||
| U | c | lb-ft/rad | - | 37468 | - | - | 79362 | - | ||
| kNm/rad | - | 50.8 | - | - | 107.6 | - | ||||
| Moment of inertia for rotary group | JTW | lbs-ft2 | 0.0522 | 0.0902 | 0.1566 | 0.2302 | 0.3536 | 0.5505 | ||
| kgm2 | 0.0022 | 0.0038 | 0.0066 | 0.0097 | 0.0149 | 0.0232 | ||||
| Maximum angular acceleration5) | α | rad/s2 | 38000 | 30000 | 24000 | 21000 | 18000 | 14000 | ||
| Case volume | V | gal | 0.24 | 0.29 | 0.40 | 0.34 | 0.40 | 0.55 | ||
| I | 0.9 | 1.1 | 1.5 | 1.3 | 1.5 | 2.1 | ||||
| Weight (without through drive) approx. | m | Ibs | 64 | 68 | 84 | 110 | 132 | 176 | ||
| Kg | 29 | 31 | 38 | 50 | 60 | 80 | ||||
Notice
▶Theoretical values, without efficiency and tolerances;values rounded
▶Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. Bosch Rexroth recommend testing the loads by means of experiment or calculation / simulation and comparison with the permissible values.
Determining the operating characteristics
| Flow | qv=(Vg ∙ n ∙ ηv) /231 | gpm | (Vg ∙ n ∙ ηv) / 1000 | I/min |
| Torque | T=(Vg ∙ Δp) /(24 ∙ π ∙ ηhm) | lb-ft | (Vg ∙ Δp) /(24 ∙ π ∙ ηhm) | Nm |
| Power | P=(2π ∙ T ∙ n)/33000=(qv ∙ Δp)/(1714 ∙ ηt) | HP | (2π ∙ M ∙ n)/60000=(qv ∙ Δp∙ ηt)/600 | kW |
Key
Vg Displacement per revolution [in3(cm3)]
Δp Differential pressure [psi(bar)]
n Rotational speed [rpm]
ηv Volumetric efficiency
ηhm Hydraulic-mechanical efficiency
ηt Total efficiency (ηt= ηv*ηhm)
1)The values are applicable:
- for the optimum viscosity range from Vopt = 170 to 82 SUS(36 to 16 mm2/s)
- for hydraulic fluid based on mineral oils (for HF hydraulic fluids,observe the technical data in 90225)
2)Valid at half corner power (e.g. at Vg max and pN/2)
3) Valid at Δp = 1000 to 2200 psi (70 to 150 bar) or Δp < 4350 psi(300 bar) and t < 0.1 s
4)Without boost pump
5)The data are valid for values between the minimum required and maximum permissible rotational speed.
Valid for external excitation (e.g. diesel engine 2 to 8 times rotary frequency, cardan shaft twice the rotary frequency).
The limit value is only valid for a single pump.
The load capacity of the connecting parts must be considered.
Permissible radial and axial forces on the drive shaft
▼Splined shaft ANSI B92.1a
| Size | NG | 28 | 40 | 40 | 56 | 56 | 71 | ||
| Drive shaft | in | 1 | 1 | 1 1/4 | 1 1/4 | 1 3/8 | 1 1/4 | ||
| Maximum radial force at distance a(from shaft collar) | ![]() |
Fq max | lbf | 671 | 958 | 766 | 1073 | 975 | 1360 |
| N | 2983 | 4261 | 3409 | 4772 | 4338 | 6050 | |||
| a | in | 0.75 | 0.75 | 0.94 | 0.94 | 0.94 | 0.94 | ||
| mm | 19 | 19 | 24 | 24 | 24 | 24 | |||
| Maximum axial force | ![]() |
+Fax max | lbf | 350 | 477 | 477 | 654 | 654 | 954 |
| N | 1557 | 2120 | 2120 | 2910 | 2910 | 4242 | |||
| -Fax max | lbf | 94 | 198 | 198 | 355 | 355 | 620 | ||
| N | 417 | 880 | 880 | 1490 | 1490 | 2758 | |||
| Size | NG | 71 | 90 | 90 | 125 | 125 | ||
| Drive shaft | in | 1 3/8 | 1 1/4 | 1 3/4 | 1 3/4 | 2 | ||
| Maximum radial force at distance a(from shaft collar) | ![]() |
Fq max | lbf | 1236 | 1724 | 1232 | 1711 | 1497 |
| N | 550 | 7670 | 5478 | 7609 | 6658 | |||
| a | in | 0.94 | 0.94 | 1.32 | 1.32 | 1.57 | ||
| mm | 24 | 24 | 33.5 | 33.5 | 40 | |||
| Maximum axial force | ![]() |
+Fax max | lbf | 954 | 973 | 973 | 1361 | 1361 |
| N | 4242 | 4330 | 4330 | 6053 | 6053 | |||
| -Fax max | lbf | 620 | 600 | 600 | 797 | 797 | ||
| N | 2758 | 2670 | 2670 | 3547 | 3547 | |||
Notice
▶The axial and radial forces generally influence the service life of the bearings.
▶Special requirements apply in the case of belt drive and cardan shaft. Please contact u
| Size | NG | 28 | 40 | 56 | 71 | 90 | 125 | |||
| Torque at Vg max and | Δp = 5800 psi1) | T | lb-ft | 131 | 188 | 263 | 333 | 423 | 587 | |
| Δp = 400 bar1) | T | Nm | 178 | 255 | 357 | 452 | 573 | 796 | ||
| Maximum input torque
at drive shaft2) ANSI B92.1a (SAE J744) |
S | TE max | lb-ft | 232 | 444 | 444 | 444 | 1210 | 1210 | |
| Nm | 314 | 602 | 602 | 602 | 1640 | 1640 | ||||
| in | 1 | 1 1/4 | 1 1/4 | 1 1/4 | 1 3/4 | 1 3/4 | ||||
| T | TE max | lb-ft | - | - | 715 | 715 | - | 1969 | ||
| Nm | - | - | 970 | 970 | - | 2670 | ||||
| in | - | - | 1 3/8 | 1 3/8 | - | 2 | ||||
| U3) | TE max | lb-ft | - | 232 | - | - | 444 | - | ||
| Nm | - | 314 | - | - | 602 | - | ||||
| in | - | 1 | - | - | 1 1/4 | - | ||||
| Maximum through-drive torque4) | TD max | lb-ft | 170 | 232 | 384 | 487 | 606 | 819 | ||
| Nm | 231 | 314 | 521 | 660 | 822 | 1110 | ||||
Distribution of torques

| Torque at 1st pump | T1 |
| Torque at 2nd pump | T2 |
| Torque at 3rd pump | T3 |
| Input torque | TE=T1+T2+T3 |
| TE < TE max | |
| Through∙drive torque | TD=T2+T3 |
| TD < TD max |
1) Efficiency not considered
2) For drive shafts free of radial force
3) Shaft "U" is only permitted as drive shaft on the 2nd pump on a combination pump of the same size.
4)Note maximum input torque for shaft S!
