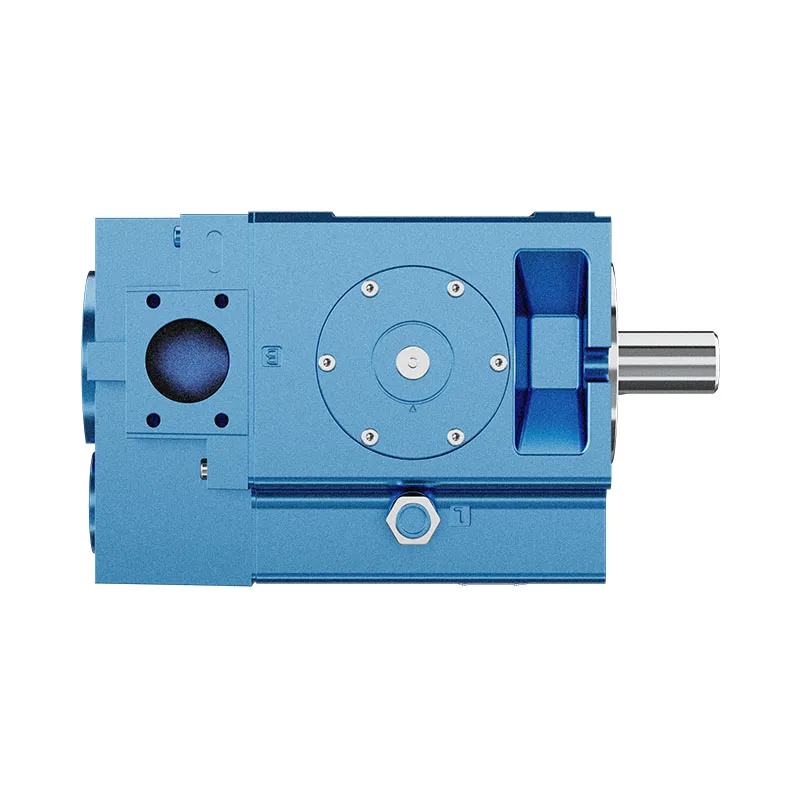

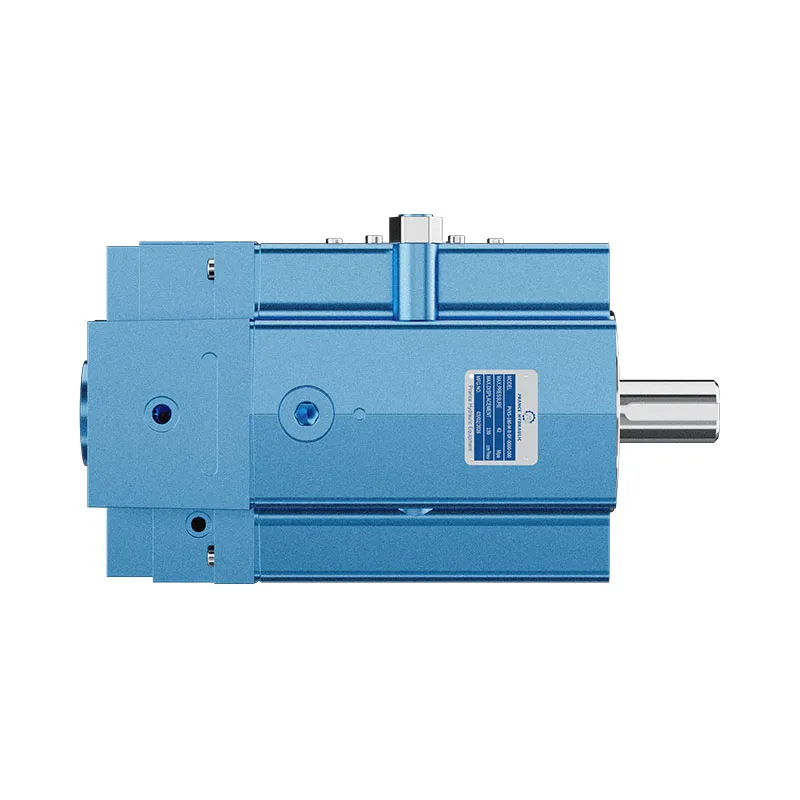

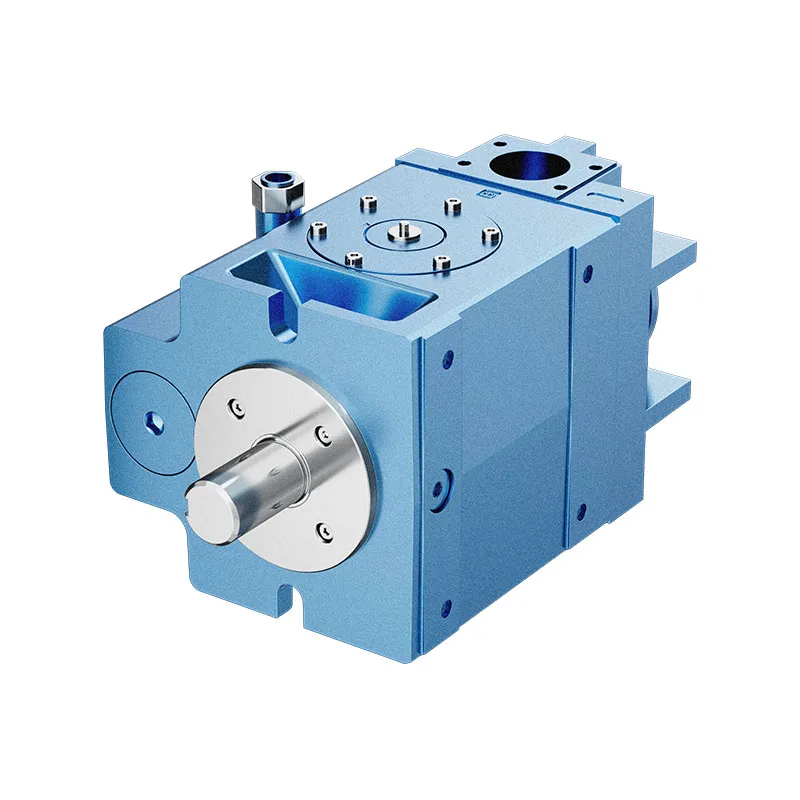

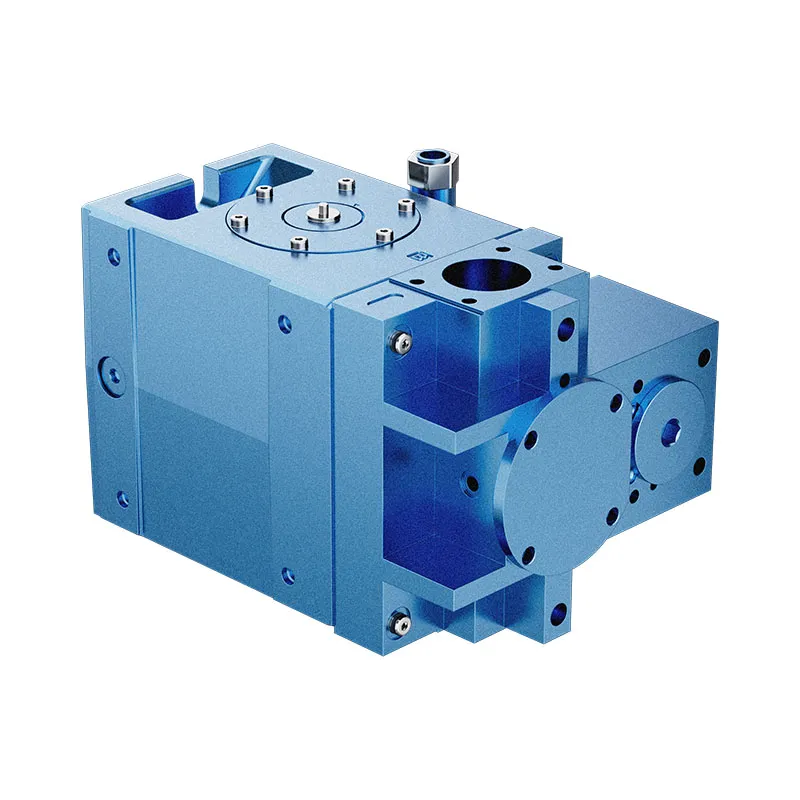

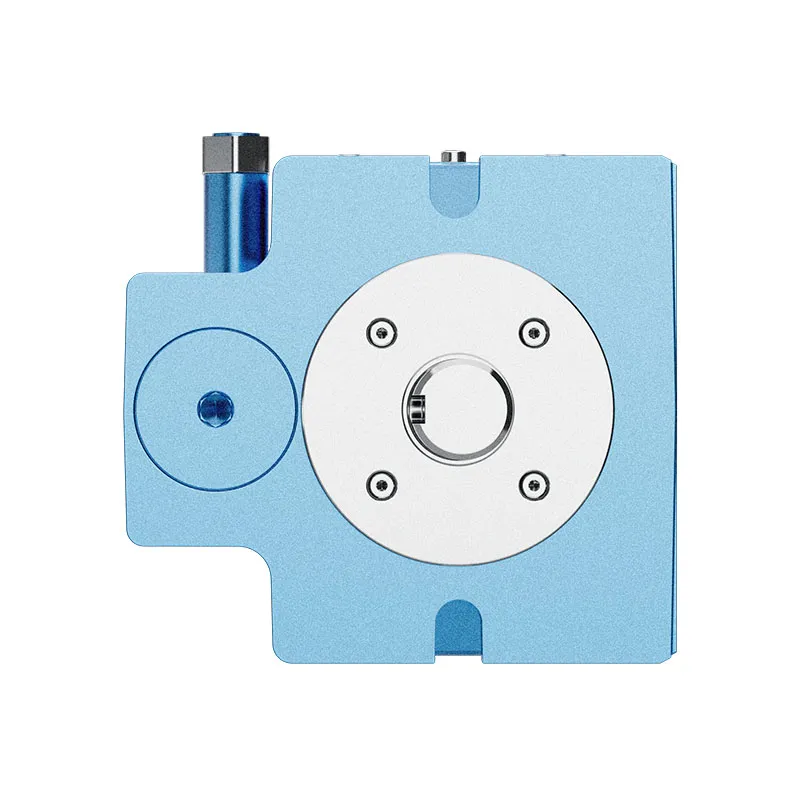

Hydraulic Bent Axis Variable Displacement Pump PVXS
Hydraulic Bent Axis Variable Displacement Pump PVXS
Hydraulic Bent Axis Variable Displacement Pump PVXS
Hydraulic Bent Axis Variable Displacement Pump PVXS
Hydraulic Bent Axis Variable Displacement Pump PVXS
Hydraulic Bent Axis Variable Displacement Pump PVXS
  1. Hydraulic Bent Axis Variable Displacement Pump PVXS
  2. Hydraulic Bent Axis Variable Displacement Pump PVXS
  3. Hydraulic Bent Axis Variable Displacement Pump PVXS
  4. Hydraulic Bent Axis Variable Displacement Pump PVXS
  5. Hydraulic Bent Axis Variable Displacement Pump PVXS
  6. Hydraulic Bent Axis Variable Displacement Pump PVXS

Hydraulic Bent Axis Variable Displacement Pump PVXS

1.Axial piston pumpswith swashplatedesign for reliable operation and long life.

2.Pressure up to 420bar. Rated speed upto 1800 min–1. Higher speeds possible.

3.Oversize shafts andbearings.

4.Rotating and pressureloaded parts arepressure balanced.

5.Integrated pilot pump,filter and pressurerelief valves available.

6.”Building block” designgives these pumps awide range of application.

7.Fast response times.

Detailed Description

These axial piston pumps adopt a professional swashplate structure design, which ensures stable and reliable continuous operation and effectively extends the overall service life under various working conditions. The pump features excellent power performance, with a maximum working pressure of 420bar and a rated operating speed of 1800 min⁻¹, and it can also stably operate at higher speeds to meet diverse working demands. Equipped with oversize shafts and bearings, the pump boasts stronger load-bearing capacity and higher structural stability.
All rotating and pressure-bearing components adopt a precise pressure balance structure, which reduces internal wear and improves operational stability. It supports integrated configuration of pilot pump, filter and pressure relief valves for simplified installation and optimized system performance. Adopting a flexible building block design, the pump realizes strong universality and a wide range of application scenarios. Besides, it delivers fast response times, enabling sensitive and accurate hydraulic system control.

Technical Data

MODEL 66 90 130 180 250
Design Swashplate - Axial piston pump
Type of mounting Flange or foot-mounted. tandem is foot mounted only
Pipe connection SAE Flange B psi 1  1/2"=3000 2"=3000 2  1/2"=3000 2  1/2"=3000 3  1/2"=500
A 1"=6000 1"=6000 1"=6000 1  1/4"=6000 1  1/4"=6000
Direction ofrotation Clockwise when viewing shaft end of pump
Counterclockwise available on request
Speed range nmin rpm 150
nmax 1800
Installation position Optional, see mounting information
Ambient temperature range min ℉ -4
max 122
Weight m lb 121 165 234 251 467
Mass of inertia J lb  ft2 0.38 0.38 1.068 1.068 3.465

HYDRAULIC  CHARACTERISTICS

Hydraulic fluid Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations
Hydraulic fluid temperature range min ℉ -13 (on startup)
max 194
Viscosity range for continuous operation min CST 10
max CST 75
Maximum permissible start viscosity max CST 1000
Filtering ISO 4406 18/15/13
Maximum geometric n=1500rpm Vg in3 4.1 5.5 7.9 11 15.2
displacement n=1800rpm
Maximum geometric n=1500rpm Qg USg pm 26 36 52 71 99
pump flow n=1800rpm 32 43 62 86 119
Case pressure pv max psi max. 7.2psi over p1. Pmax = 58 abs.

DRIVE

Maximum driving torque - single unit (p2 max. ,η= 100%) M1 Single lb.ft 325 444 640 887 1233
Maximum power consumption - single unit (p2 max.,η=100%; n=1800 rpm) P1 Single hp 93 126 182 254 355
Maximum driving torque limited to splined shaft only - comb. unit M1 Comb. lb.ft 2x325 2x444 2x640 2x887 2x1233
MODEL 66 90 130 180 250
Design Swashplate - Axial piston pump
Type of mounting Flange or foot-mounted. tandem is foot mounted only
Pipe connection SAE Flange B psi 1  1/2"=3000 2"=3000 2  1/2"=3000 2  1/2"=3000 3  1/2"=500
A 1"=6000 1"=6000 1"=6000 1  1/4"=6000 1  1/4"=6000
Direction ofrotation Clockwise when viewing shaft end of pump
Counterclockwise available on request
Speed range nmin min-1 150
nmax 1800
Installation position Optional, see mounting information
Ambient temperature range min ℃ -20
max 50
Weight m kg 55 75 106 114 212
Mass of inertia J kg m2 0.016 0.016 0.045 0.045 0.146

HYDRAULIC CHARACTERISTICS

Nominal pressure (100% duty cycle) PN bar 350
Input pressure P1min bar 0.85abs
P1max bar 50
Maximum pressure to DIN 24312 p2max bar 420
Hydraulic fluid Hydraulic oil to DIN 51524 part 2. Refer to section Application Data-Fluid Recommendations
Hydraulic fluid temperature range min ℃ -25 (on startup)
max 90
Viscosity range for continuous operation min CST 10
max CST 75
Maximum permissible start viscosity max CST 1000
Filtering ISO 4406 18/15/13
Maximum geometric n=1500rpm-1 Vg cm3 66 90 130 180 250
displacement n=1800rpm-1
Maximum geometric n=1500rpm-1 Qg L/min 99 135 195 270 375
pump flow n=1800rpm-1 118 162 234 324 450
Case pressure pv max bar max.0,5 bar over p1. pmax = 4 bar abs.

DRIVE

Maximum driving torque - single unit (p2 max. ,η= 100%) M1 Single Nm 440 600 868 1202 1671
Maximum power consumption - single unit (p2 max.,η=100%; n=1800 rpm-1) P1 Single kW 69 94 136 189 265
Maximum driving torque limited to splined shaft only - comb. unit M1 Comb. Nm 2x440 2x600 2x868 2x1202 2x1671
