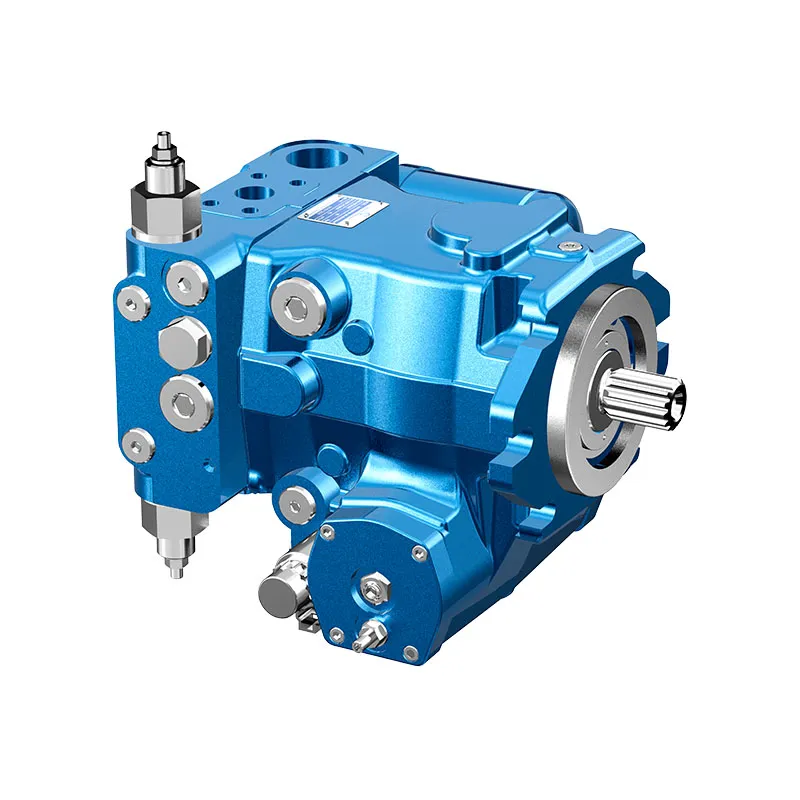

A4VTG Hydrostatic Transmission Piston Pump

Axial piston; variable swashplate · Closed-circuit transmission; confirm configuration

The A4VTG variable piston pump is listed for hydraulic transmission duty. Its reversible swashplate flow and auxiliary oil functions must be matched to the motor loop, control arrangement and machine duty cycle.

Model

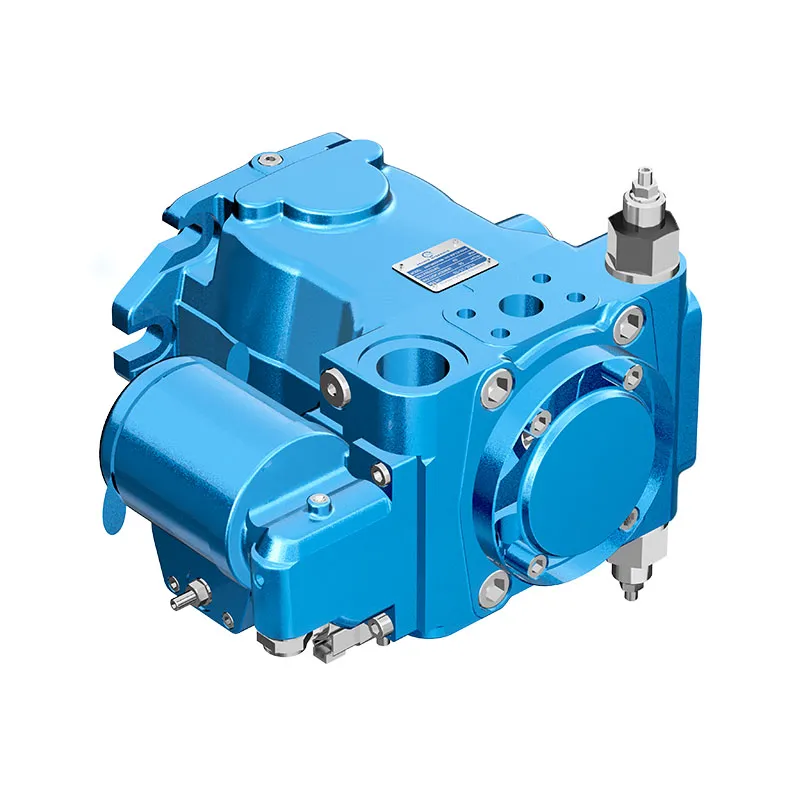

✓A4VTG original product photograph
A4VTGAxial piston; variable swashplate
Request a QuotationView Technical Data & Datasheet

Confirm the complete model and approved specification with Prance Hydraulic. Product-series references alone do not establish interchangeability.

Configuration review · Technical documentation · Product selection

Product Details

  • Auxiliary boost and pilot supply
  • Reversible flow through neutral
  • Pressure cut-off and relief functions
  • Through-drive option

CATEGORIES: Piston Pump, Variable Displacement Pump

A4VTG Features & Application

Auxiliary boost and pilot supply

Account for pilot or replenishment demand and the relevant pressure limits. Include filtration and the return or drain route in the circuit review.

Reversible flow through neutral

Review combined drive torque and simultaneous demand, including any additional pump connected to the drive.

Pressure cut-off and relief functions

Keep continuous, intermittent and peak conditions separate. Use the row for the selected size and configuration.

Through-drive option

Review combined drive torque and simultaneous demand, including any additional pump connected to the drive.

A4VTG Specifications

Series / modelA4VTG
Product typeA4VTG Hydrostatic Transmission Piston Pump
DesignAxial piston; variable swashplate
Circuit / selectionClosed-circuit transmission; confirm configuration
Product roleHydrostatic transmission pump
Auxiliary circuitConfirm boost pressure, pilot supply and filtration requirements

A4VTG Selection & Configuration

The A4VTG variable piston pump is listed for hydraulic transmission duty. Its reversible swashplate flow and auxiliary oil functions must be matched to the motor loop, control arrangement and machine duty cycle.

Review transmission startup, neutral, reversal and stopping as operating states. Check charge supply, cooling and replenishment during each state, and confirm the exact control and drive interface rather than selecting from displacement alone.

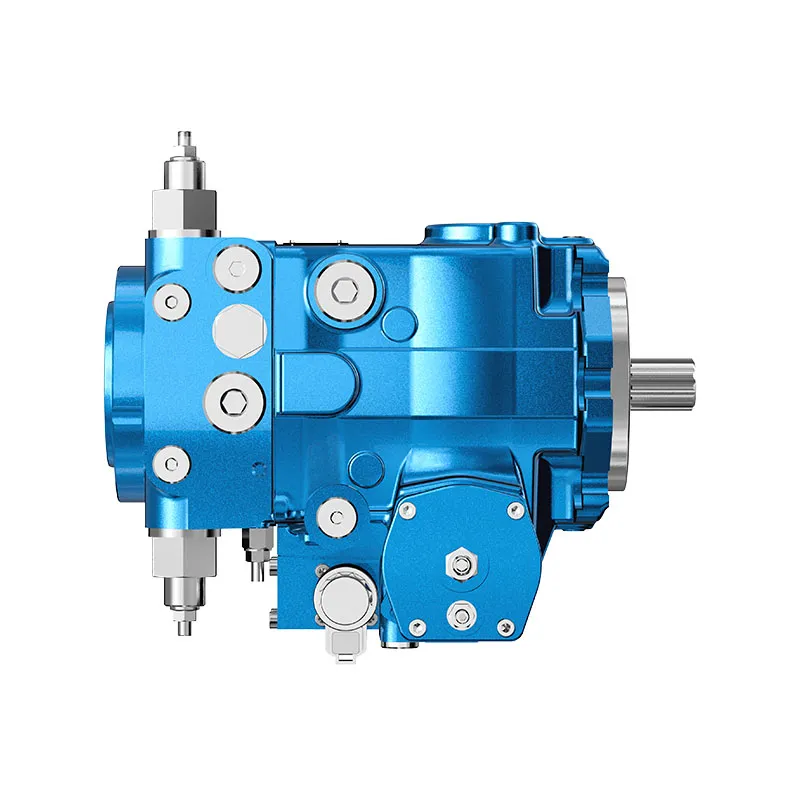

A4VTG original product view

Your Application.
The Right Configuration.

Hydraulic pumps · Hydraulic motors · Hydraulic valves

Send the A4VTG nameplate, operating requirements and installation drawing for a configuration review before quoting.

  • Model review — send the full model code or an existing nameplate photograph.
  • Interface matching — confirm shaft, mounting flange, rotation and ports.
  • Operating conditions — provide flow, pressure, speed, fluid and duty cycle.
  • Documentation — request the relevant product data and drawings for your review.
Prance workshop with a row of production equipment

A4VTG Buying Guide

Use this sequence to prepare the A4VTG configuration for review and quotation.

  1. Define required flow at the actual drive speed and continuous pressure.
  2. Identify peak pressure, duration and the work cycle.
  3. Confirm the selected displacement control and any auxiliary-drive requirement.
  4. Match rotation viewed from the shaft end, shaft, flange and ports.
  5. Review inlet conditions, drain routing and the installation envelope.
  6. Confirm fluid, viscosity, temperature, filtration and seals.
  7. Approve the complete model, control, drawing, quantity and delivery terms.

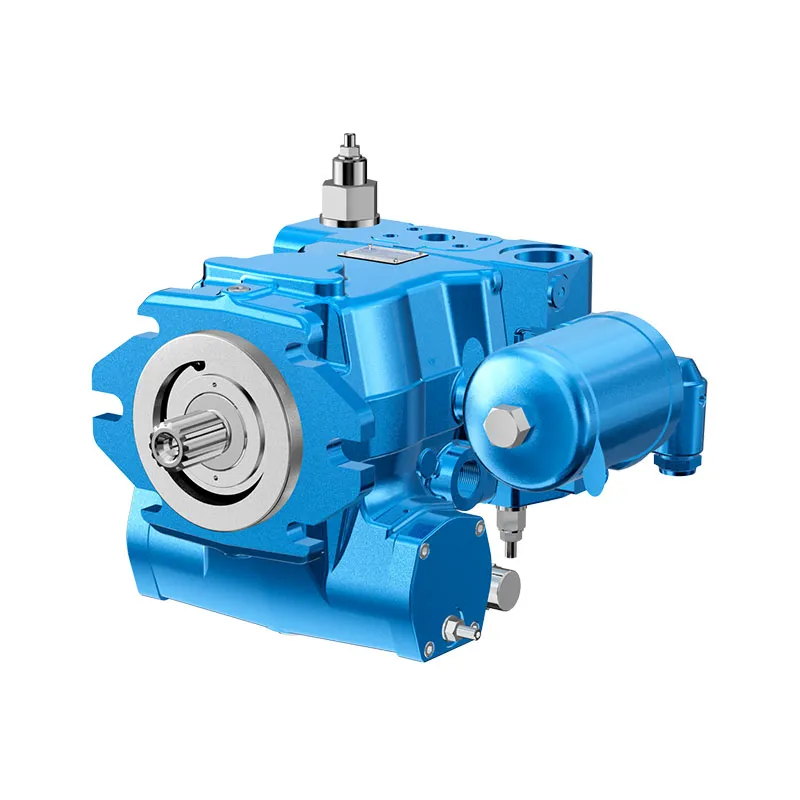

A4VTG original product photograph for installation review

Selection, Documentation & Project Support

Prance technical team image from its company website

Selection Support

Learn more →

Share your hydraulic circuit, operating point and installation requirements for a configuration discussion.


Flow · Pressure · Speed · Interfaces
Prance quality standards image from its company website

Technical Resources

Learn more →

Review product documentation, model codes and technical data before finalizing the specification.


Datasheets · Model codes · Drawings
Prance sales team image from its company website

Project Inquiries

Learn more →

Send your required model, quantity, application and project requirements to discuss your inquiry.


Product inquiries · Configuration review

Configuration, Quantity & Delivery

Confirm the complete A4VTG code, approved drawing and operating limits. Availability, quantity, documentation and delivery date are confirmed in the quotation.

Discuss Your A4VTG Application

Send the full model code, operating duty, installation details and quantity.

Request a A4VTG Quotation

A4VTG Questions Before Ordering

What type of product is the A4VTG?

A4VTG Hydrostatic Transmission Piston Pump. Design: Axial piston; variable swashplate. Closed-circuit transmission; confirm configuration. Confirm the complete order code for the offered version.

Can a similar pump replace the A4VTG?

Only after checking the operating duty, interfaces and control requirements. A matching displacement, nominal size or photograph does not establish interchangeability. Compare the approved drawings and complete codes.

Which data is needed for a quotation?

Define required flow at the actual drive speed and continuous pressure. Identify peak pressure, duration and the work cycle. Attach the nameplate, complete order code, installation drawing and required quantity.

A4VTG Technical Data & Documents

View A4VTG catalog data and operating conditions

Catalog reference for the model rows and variants explicitly identified below. Keep each value with its unit, duty condition and footnotes. Family tables may include related versions; confirm the complete offered code and approved data before ordering.

Technical data

Hydraulic fluid

Before starting project planning, please refer to our data sheets RE 90220 (mineral oil) and RE 90221 (environmentally acceptable hydraulic fluids) for detailed information regarding the choice of hydraulic fluids and application conditions. The A4VTG variable pump is not suitable for operation with HFA, HFB and HFC. If HFD or environmentally acceptable hy-draulic fluids are being used, the limitations regarding technical data and seals must be observed.Please contact us. When ordering, indicate the hydraulic fluid that is to be used.

Selection diagram

A4VTG technical reference from the existing product documentation

Details regarding the choice of hydraulic fluid

The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit the circuit temperature. The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range (vopt), see shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case. Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum operating viscosity range (vopt.shaded area), this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.

Note

The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point of the component may the temperature be higher than115 °C, however. The temperature difference specified below is to be taken into account when determining the viscosity in the bearing. If the above conditions cannot be maintained due to extreme operating parameters, please contact us.

Viscosity and temperature

Viscosity [mm2/s] Temperature Comment
Storage Tmin ≥ -50 °C up to 12 months with standard factory conservation
Topt = +5 °C to +20 °C up to 24 months with long-term factory conservation
(Cold) start-up1) Permissible tempera- ture difference Vmax=1600 TSt≥ -40°C t≤3 min, without load (p≤50 bar), n ≤ 1000 rpm
ΔT≤25K between axial piston unit and hydraulic fluid
Warm-up phase v<1600to400 T=-40 °C to-25°C at Pnom,0.5·nnom and t ≤ 15 min
Operating phase Temperature difference ΔT=approx.5 K The temperature of the hydraulic fluid in the bearing is (depending on pressure and speed) approx. 5 K higher than that of the case drain fluid at port T.
Continuous operation v=400 to 10 Vopt=16 to 36 T=-25°C to +90 °C no restriction within the permissible data
Short-term operation Vmin=<10to5 Tmax = +115 °C t<3 min,p<0.3·Pnom
Shaft seal ring FKM1) T≤ +115°C see page 5
1)At temperatures below -25 °C, an NBR shaft seal ring is required (permissible temperature range: -40 °C to +90 °C)

Filtration of the hydraulic fluid

Filtration improves the cleanliness level of the hydraulic fluid,which, in turn, increases the service life of the axial piston unit. To ensure the functional reliability of the axial piston unit, a gravimetric evaluation is necessary for the hydraulic fluid to determine the amount of contamination by solid matter and to determine the cleanliness level according to ISO 4406. A cleanliness level of at least 20/18/15 is to be maintained. Depending on the system and the application, for the A4VTG,we recommend Filter cartridges β20 > 100. With an increasing differential pressure at the filter cartridges,the B-value must not deteriorate. At very high hydraulic fluid temperatures (90 °C to maximum 115 °C), a cleanliness level of at least 19/17/14 according to ISO 4406 is necessary. If the above classes cannot be achieved, please contact us. For notes on filtration types, see page 16.

Shaft seal ring

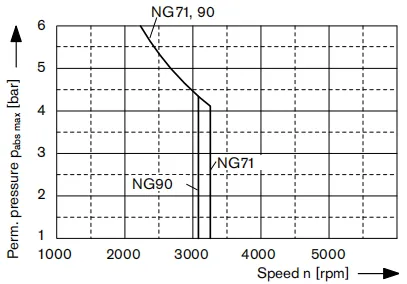

Permissible pressure loading The service life of the shaft seal ring is affected by the speed of the pump and the case drain pressure. It is recommended that the average, continuous case drain pressure 3 bar absolute at operating temperature not be exceeded (maximum permissible case drain pressure 6 bar absolute at reduced speed,see diagram). Short-term (t <0.1 s) pressure spikes of up to10 bar absolute are permitted. The service life of the shaft seal ring decreases with an increase in the frequency of pressure spikes. The case pressure must be equal to or greater than the external pressure on the shaft seal ring. A4VTG technical reference from the existing product documentation

Temperature range

The FKM shaft seal ring may be used for case drain temperatures from-25 °C to +115 °C.

 Note

For application cases below -25 °C, an NBR shaft seal ring is necessary (permissible temperature range: -40 °C to +90 °C). State NBR shaft seal ring in plain text when ordering. Please contact us.

Operating pressure range

Pressure at service line port A or B Nominal pressure pnom———– 400 bar absolute Maximum pressure Pmax———– 450 bar absolute Single operating period————– 10s Total operating period————– 300h Minimum pressure (high-pressure side)———— 25 bar Minimum pressure (inlet)————–10 bar(boost pressure setting must be higher depending on system) Rate of pressure change RA max———— 9000 bar/s A4VTG technical reference from the existing product documentation

Boost pump

Pressure at suction port S Duration ps min (v ≤ 30 mm2/s)————–≥ 0.8 bar absolute at cold starts, short-term (t <3 min) ————-≥ 0.5 bar absolute Maximum ps max—————-≤5 bar absolute Standard adjustment pSp (at n= 1500 rpm)———— 22 bar Nominal pressure pSp nom————— 30 bar Maximum pressure pSp max————— 0 bar Control pressure To ensure the function of the control, the following control pressure is required depending on the speed and operating pressure (measurement point, port Ps): For controls EP and HW Minimum control pressure PSt min (at n = 1500 rpm)— 22 bar

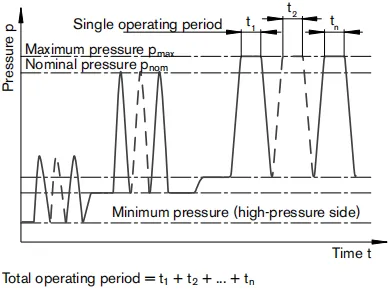

Definition

Nominal pressure Pnom The nominal pressure corresponds to the maximum design pressure. Maximum pressure pmax The maximum pressure corresponds the maximum operating pressure within the single operating period. The sum of the single operating period must not exceed the total operating period. Minimum pressure (high-pressure side) Minimum pressure on the high-pressure side (A or B) that is required in order to prevent damage to the axial piston unit. Minimum pressure (inlet) Minimum pressure in inlet (A or B) that is required in order to prevent damage to the axial piston unit. Rate of pressure change RA Maximum permissible rate of pressure build-up and pressure reduction during a pressure change over the entire pressure range. A4VTG technical reference from the existing product documentation

Table of values (theoretical values, without efficiency levels and tolerances; values rounded)

Size NG 71 90
Displacement variable pump Vg max cm3 70 90
boost pump (at p = 20 bar) Vg Sp cm3 20.5 27
Speed at Vg max nnom rpm 3300 3050
minimum nmin rpm 500 500
Torque1) at Vg max and Δp = 400 bar Tmax Nm 452 573
Δp = 100 bar T Nm 113 143
Rotary stiffness drive shaft V8 c Nm/rad 120900 –
drive shaft V9 c Nm/rad – 150896
Moment of inertia for rotary group JGR Kgm2 0.0097 0.0149
Maximum angular acceleration2) α rad/s2 21000 18000
Filling capacity V L 1.3 1.2
Mass approx. (without through drive) m kg 51 53
1)Without boost pump 2) The area of validity lies between the minimum required and maximum permissible speed. It applies for external stimuli (e. g. engine 2 to 8 times rotary frequency, cardan shaft twice the rotary frequency). The limit value applies for a single pump only. The load capacity of the connection parts must be considered.

Note

Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. We recommend testing the loads by means of experiment or calculation/simulation and comparison with the permissible values.

Determining the operating characteristics

Vg = Displacement per revolution in cm3 Δp = Differential pressure in bar n = Speed in rpm ηv = Volumetric efficiency ηmh = Mechanical-hydraulic efficiency ηt = Overall efficiency (ηt= ηv* ηmh)

Permissible radial and axial loading on drive shaft

Size NG 71 90
Drive shaft in 1 3/8 1 1/2
Radial force maximum at distance a (from shaft collar) A4VTG technical reference from the existing product documentation Fq max a N mm 5600 24 7100 24
Axial force maximum A4VTG technical reference from the existing product documentation +Fax max N 4242 4330
-Fax max N 2758 2670

Note

Special requirements apply in the case of belt drives. Please contact us. Force-transfer direction of the permissible axial force: + Fax max=Increase in service life of bearings – Fax max=Reduction in service life of bearings (avoid)

Permissible input and through-drive torques

Size NG 71 90
Input torque at drive shaft, maximum2) V8 Nm TEmax Nm 970 –
V9 Nm TEmax Nm – 1305
Maximum through-drive torque TDmax Nm 250 250
1)Efficiency not considered 2) For drive shafts with no radial force

Request a A4VTG Quotation

Tell us your required configuration, quantity and application.

Contact Form Demo

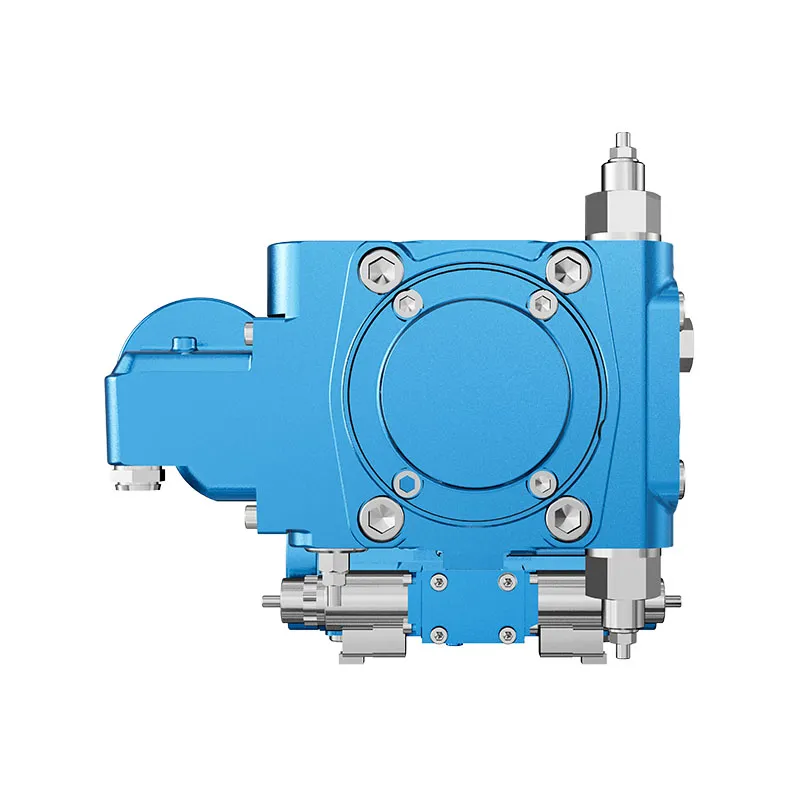

A4VTG original product photograph

Ordering code for standard program

A4VT G / 33 M N C4 F A S
01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18

Axial piston unit

01 Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar, mobile concrete mixers A4VT

Operating mode

02 Pump, closed circuit G

Size

03 Displacement Vg max in cm3 071 090

Control device

071 090
04 Proportional control hydraulic, mechanical servo, hexagon shaft with lever to the rear ● ● HW11)
Proportional control electric,

with emergency actuation and spring return

U=12VDC ● ● EP3
U=24 VDC ● ● EP4

Connector for solenoids2)

071 090
05 Without ● ● 0
DEUTSCH - molded connector, 2-pin - without suppressor diode ● ● P

Auxiliary functions

071 090
06 Without ● ● 0
With mechanical stroke limiter, externally adjustable ● ● M
With ports X3, X4 for stroking chamber pressure ● ● T
With mechanical stroke limiter and ports X3, X4 ● ● B

Series

07 Series 3, Index 3 33

Version of port and fixing threads

08 Metric M

Direction of rotation

09 Viewed from drive shaft clockwise R
anti-clockwise L

Seals

10 NBR (nitrile-caoutchouc), shaft seal ring in FKM (fluor-caoutchouc) N

Mounting flange

11 SAEJ744, 127-4 C4

Drive shaft

071 090
12 Splined shaft

ANSIB92.1a-1976

1 3/8 in 21T 16/32DP without coupling flange ● - V8
with coupling flange ● - C8
1 1/2 in 23T 16/32DP without coupling flange - ● V9
with coupling flange - ● C9

Service line ports

071 090
13 SAE flange port

A and B on same side

left Suction port S at bottom ○ ○ 1
right Suction port S at top ● ● 2

•= available   ○= on request   -= not available

1)Mounting position of the lever not specified on delivery, to be aligned by the customer

2) Connectors for other electric components can deviate.

Boost pump

14 With integrated boost pump F

Through drive

15 Flange SAE J744 Coupling for splined shaft1)
Mounting variant
Diameter Symbol Designation Diameter Designation 071 090
Without ● ● 0000
82-2 A2 5/8 in 9T 16/32DP S2 ● ● A2S2
101-2 B2 7/8 in 13T 16/32DP S4 ● ● B2S4

High-pressure valves

16 With high-pressure relief valve, direct controlled A

Filtration boost circuit

17 Filtration in the boost pump suction line S

Standard / special version

12 Standard version -0
combined with attachment part or attachment pump -K
Special version -S
combined with attachment part or attachment pump -T

Note

Short designation X refers to a special version not covered by the ordering code.

•= available   ○= on request   -= not available

3) Coupling for splined shaft acc. ANSI B92.1a-1976

Technical data

Hydraulic fluid

Before starting project planning, please refer to our data sheets RE 90220 (mineral oil) and RE 90221 (environmentally acceptable hydraulic fluids) for detailed information regarding the choice of hydraulic fluids and application conditions.

The A4VTG variable pump is not suitable for operation with HFA, HFB and HFC. If HFD or environmentally acceptable hy-draulic fluids are being used, the limitations regarding technical data and seals must be observed.Please contact us.

When ordering, indicate the hydraulic fluid that is to be used.

Selection diagram

Details regarding the choice of hydraulic fluid

The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit the circuit temperature.

The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range (vopt), see shaded area of the selection diagram. We recommended that the higher viscosity class be selected in each case.

Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum operating viscosity range (vopt.shaded area), this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.

Note

The case drain temperature, which is affected by pressure and speed, is always higher than the circuit temperature. At no point of the component may the temperature be higher than115 °C, however. The temperature difference specified below is to be taken into account when determining the viscosity in the bearing.

If the above conditions cannot be maintained due to extreme operating parameters, please contact us.

Viscosity and temperature

Viscosity [mm2/s] Temperature Comment
Storage Tmin ≥ -50 °C up to 12 months with standard factory conservation
Topt = +5 °C to +20 °C up to 24 months with long-term factory conservation
(Cold) start-up1)

Permissible tempera-

ture difference

Vmax=1600 TSt≥ -40°C t≤3 min, without load (p≤50 bar), n ≤ 1000 rpm
ΔT≤25K between axial piston unit and hydraulic fluid
Warm-up phase v<1600to400 T=-40 °C to-25°C at Pnom,0.5·nnom and t ≤ 15 min
Operating phase

Temperature

difference

ΔT=approx.5 K The temperature of the hydraulic fluid in the bearing is (depending on pressure and speed) approx. 5 K higher than that of the case drain fluid at port T.
Continuous operation v=400 to 10

Vopt=16 to 36

T=-25°C to +90 °C no restriction within the permissible data
Short-term operation Vmin=<10to5 Tmax = +115 °C t<3 min,p<0.3·Pnom
Shaft seal ring FKM1) T≤ +115°C see page 5

1)At temperatures below -25 °C, an NBR shaft seal ring is required

(permissible temperature range: -40 °C to +90 °C)

Filtration of the hydraulic fluid

Filtration improves the cleanliness level of the hydraulic fluid,which, in turn, increases the service life of the axial piston unit.

To ensure the functional reliability of the axial piston unit, a gravimetric evaluation is necessary for the hydraulic fluid to determine the amount of contamination by solid matter and to determine the cleanliness level according to ISO 4406. A cleanliness level of at least 20/18/15 is to be maintained.

Depending on the system and the application, for the A4VTG,we recommend

Filter cartridges β20 > 100.

With an increasing differential pressure at the filter cartridges,the B-value must not deteriorate.

At very high hydraulic fluid temperatures (90 °C to maximum 115 °C), a cleanliness level of at least 19/17/14 according to ISO 4406 is necessary.

If the above classes cannot be achieved, please contact us.

For notes on filtration types, see page 16.

Shaft seal ring

Permissible pressure loading

The service life of the shaft seal ring is affected by the speed of the pump and the case drain pressure. It is recommended that the average, continuous case drain pressure 3 bar absolute at operating temperature not be exceeded (maximum permissible case drain pressure 6 bar absolute at reduced speed,see diagram). Short-term (t <0.1 s) pressure spikes of up to10 bar absolute are permitted. The service life of the shaft seal ring decreases with an increase in the frequency of pressure spikes.

The case pressure must be equal to or greater than the external pressure on the shaft seal ring.

Temperature range

The FKM shaft seal ring may be used for case drain temperatures from-25 °C to +115 °C.

 Note

For application cases below -25 °C, an NBR shaft seal ring is necessary (permissible temperature range: -40 °C to +90 °C).

State NBR shaft seal ring in plain text when ordering.

Please contact us.

Operating pressure range

Pressure at service line port A or B

Nominal pressure pnom----------- 400 bar absolute

Maximum pressure Pmax----------- 450 bar absolute

Single operating period-------------- 10s

Total operating period-------------- 300h

Minimum pressure (high-pressure side)------------ 25 bar

Minimum pressure (inlet)--------------10 bar(boost pressure setting must be higher depending on system)

Rate of pressure change RA max------------ 9000 bar/s

Boost pump

Pressure at suction port S

Duration ps min (v ≤ 30 mm2/s)--------------≥ 0.8 bar absolute

at cold starts, short-term (t <3 min) -------------≥ 0.5 bar absolute

Maximum ps max----------------≤5 bar absolute

Standard adjustment pSp (at n= 1500 rpm)------------ 22 bar

Nominal pressure pSp nom--------------- 30 bar

Maximum pressure pSp max--------------- 0 bar

Control pressure

To ensure the function of the control, the following control pressure is required depending on the speed and operating pressure (measurement point, port Ps):

For controls EP and HW

Minimum control pressure PSt min (at n = 1500 rpm)--- 22 bar

Definition

Nominal pressure Pnom

The nominal pressure corresponds to the maximum design pressure.

Maximum pressure pmax

The maximum pressure corresponds the maximum operating pressure within the single operating period. The sum of the single operating period must not exceed the total operating period.

Minimum pressure (high-pressure side)

Minimum pressure on the high-pressure side (A or B) that is required in order to prevent damage to the axial piston unit.

Minimum pressure (inlet)

Minimum pressure in inlet (A or B) that is required in order to prevent damage to the axial piston unit.

Rate of pressure change RA

Maximum permissible rate of pressure build-up and pressure reduction during a pressure change over the entire pressure range.

Table of values (theoretical values, without efficiency levels and tolerances; values rounded)

Size NG 71 90
Displacement variable pump Vg max cm3 70 90
boost pump (at p = 20 bar) Vg Sp cm3 20.5 27
Speed at Vg max nnom rpm 3300 3050
minimum nmin rpm 500 500
Flow at nnom H and Vg max qv max I/min 234 275
Power1) at nnom H, Vg max Δp = 400 bar Pmax kW 156 183
Torque1) at Vg max and Δp = 400 bar Tmax Nm 452 573
Δp = 100 bar T Nm 113 143
Rotary stiffness drive shaft V8 c Nm/rad 120900 -
drive shaft V9 c Nm/rad - 150896
Moment of inertia for rotary group JGR Kgm2 0.0097 0.0149
Maximum angular acceleration2) α rad/s2 21000 18000
Filling capacity V L 1.3 1.2
Mass approx. (without through drive) m kg 51 53

1)Without boost pump

2) The area of validity lies between the minimum required and maximum permissible speed.

It applies for external stimuli (e. g. engine 2 to 8 times rotary frequency, cardan shaft twice the rotary frequency).

The limit value applies for a single pump only.

The load capacity of the connection parts must be considered.

Note

Operation above the maximum values or below the minimum values may result in a loss of function, a reduced service life or in the destruction of the axial piston unit. We recommend testing the loads by means of experiment or calculation/simulation and comparison with the permissible values.

Determining the operating characteristics

Flow qv=(Vg ∙ n ∙ ηv) / 1000 I/min
Torque T=(Vg ∙ Δp) /(20 ∙ π ∙ ηhm) Nm
Power P=(2π ∙ T ∙ n)/60000=(qv ∙ Δp)/(600 ∙ ηt)  kW

Vg = Displacement per revolution in cm3

Δp = Differential pressure in bar

n = Speed in rpm

ηv = Volumetric efficiency

ηmh = Mechanical-hydraulic efficiency

ηt = Overall efficiency (ηt= ηv* ηmh)

Permissible radial and axial loading on drive shaft

Size NG 71 90
Drive shaft in 1 3/8 1 1/2
Radial force maximum

at distance a

(from shaft collar)

Fq max

a

N

mm

5600

24

7100

24

Axial force maximum +Fax max N 4242 4330
-Fax max N 2758 2670

Note

Special requirements apply in the case of belt drives. Please contact us.

Force-transfer direction of the permissible axial force:

+ Fax max=Increase in service life of bearings

- Fax max=Reduction in service life of bearings (avoid)

Permissible input and through-drive torques

Size NG 71 90
Torque at Vg max and Δp= 400 bar)1) Tmax Nm 452 573
Input torque

at drive shaft, maximum2)

V8 Nm TEmax Nm 970 -
V9 Nm TEmax Nm - 1305
Maximum through-drive torque TDmax Nm 250 250

1)Efficiency not considered

2) For drive shafts with no radial force
